Wall Frames

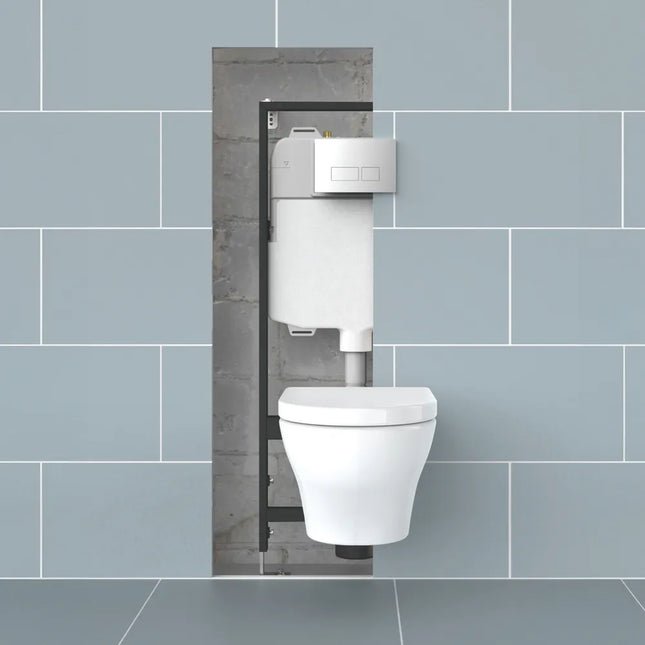

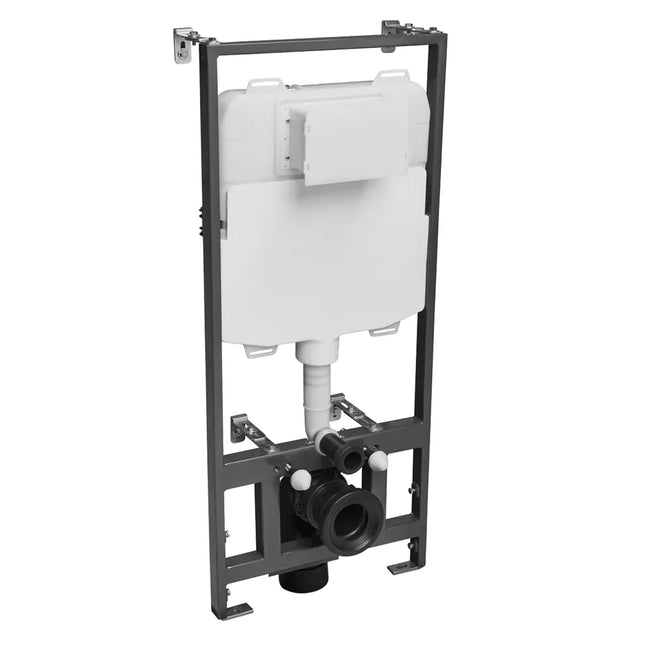

Built for taller installations and commercial-grade reliability, the Roper Rhodes 1.17m Wall Hung WC Frame with Concealed Cistern delivers the flexibility and precision that demanding bathroom projects require. With a 200mm height adjustment range, adjustable depth from 167–215mm, and front-access servicing, this is a frame engineered to fit where others won’t — and last where it matters most. Key Features 1.17m (1168mm) frame height — ideal for taller pan positions or raised installations Adjustable depth 167–215mm — accommodates varying wall thicknesses 200mm height adjustment range for precise pan positioning Height-adjustable legs for uneven floor compensation 6/3L dual flush concealed cistern — water-efficient and WRAS approved Front-access cistern — serviceable without breaking tiles All fixing hardware included 10-year frame guarantee / 5-year cistern guarantee Technical Specification Frame height: 1168mm (1.17m) Frame width: 500mm Depth (adjustable): 167–215mm Height adjustment: 200mm Leg adjustment: 2mm Flush volume: 6L / 3L dual flush Access: Front access Application: In-wall Certification: WRAS approved Weight: 16kg Frame guarantee: 10 years Cistern guarantee: 5 years SKU: TR9006 What’s Included 1 × Roper Rhodes 1.17m Wall Hung WC Frame 1 × Concealed 6/3L dual flush cistern All fixing hardware and fittings What’s Not Included Flush plate (sold separately — see compatible options below) WC pan (sold separately) Soil pipe and waste fittings Installation Designed for in-wall installation within a stud wall or duct. The adjustable depth (167–215mm) and 200mm height adjustment make this frame suitable for a wide range of wall constructions and pan heights. Front-access design allows future cistern servicing without disturbing tiles. Professional installation by a qualified plumber is recommended. Care & Maintenance The concealed cistern requires no routine maintenance. If servicing is required, access is via the flush plate aperture or front panel. Use only Roper Rhodes-approved replacement parts to maintain the guarantee. Also Available Need a different frame height? View the full Roper Rhodes wall hung WC frame range: Roper Rhodes 0.82m Wall Hung WC Frame with Concealed Cistern – 6/3L Dual Flush | WRAS Approved Roper Rhodes 1.0m Wall Hung WC Frame with Concealed Cistern – 6/3L Dual Flush | WRAS Approved Compatible Flush Plates Complete your installation with a Roper Rhodes flush plate: Roper Rhodes Rondo Dual Flush Plate – Round Style Roper Rhodes Plaza Dual Flush Plate – Chrome | Square Style Roper Rhodes Sensor Dual Flush Plate – Black Glass | Touch-Activated Roper Rhodes Contactless Dual Flush Sensor Plate – Black Glass | Wave-to-Flush Frequently Asked Questions What is the difference between the 0.82m, 1.0m, and 1.17m frames? The three frame heights accommodate different pan positions and installation requirements. The 0.82m is the standard height for most domestic installations. The 1.0m suits mid-height or commercial applications. The 1.17m is designed for taller pan positions, raised platforms, or installations requiring maximum height flexibility. All three share the same 6/3L dual flush cistern and WRAS approval. Is a flush plate included? No — the flush plate is sold separately. We stock a full range of compatible Roper Rhodes flush plates including the Rondo (round), Plaza (square chrome), Sensor (touch-activated black glass), and Contactless (wave-to-flush black glass) — see the links above. Can the cistern be serviced without removing tiles? Yes — the 1.17m frame features front-access design, allowing the cistern internals to be serviced through the flush plate aperture without disturbing surrounding tiles or wall finishes. What depth of wall does this frame require? The frame depth is adjustable between 167mm and 215mm, making it suitable for a range of stud wall thicknesses. Always confirm your wall construction depth before ordering. Is this WRAS certified? Yes — the Roper Rhodes 1.17m frame and cistern are WRAS (Water Regulations Advisory Scheme) approved, confirming compliance with UK water regulations for domestic installations. What guarantees are included? The frame carries a 10-year guarantee and the concealed cistern a 5-year guarantee, both from Roper Rhodes.

Read more less

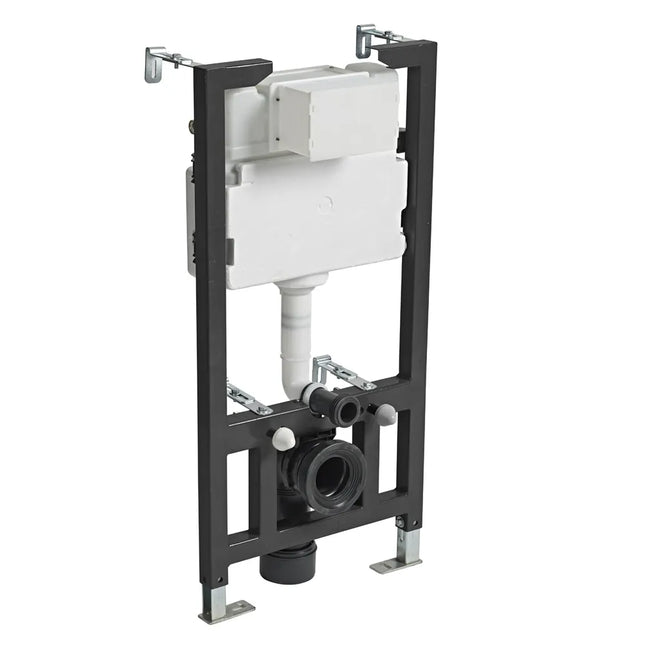

The versatile mid-height choice for wall-hung WC installations. The Roper Rhodes 1.0m Wall Hung WC Frame with Concealed Cistern is engineered for under-window, boxed-in, and in-wall applications where flexibility is everything. With both top and front access, adjustable depth from 167–215mm, and a 200mm height adjustment range, it adapts to your space — not the other way around. Key Features 1.0m (1000mm) frame height — ideal for under-window and boxed-in installations Adjustable depth 167–215mm — accommodates varying wall thicknesses 200mm height adjustment range for precise pan positioning Height-adjustable legs for uneven floor compensation 6/3L dual flush concealed cistern — water-efficient and WRAS approved Top and front access — maximum servicing flexibility All fixing hardware included 10-year frame guarantee / 5-year cistern guarantee Technical Specification Frame height: 1000mm (1.0m) Frame width: 500mm Depth (adjustable): 167–215mm Height adjustment: 200mm Flush volume: 6L / 3L dual flush Access: Top and front access Application: Under-window, boxed-in, in-wall Certification: WRAS approved Weight: 15kg Frame guarantee: 10 years Cistern guarantee: 5 years SKU: TR9015 What’s Included 1 × Roper Rhodes 1.0m Wall Hung WC Frame 1 × Concealed 6/3L dual flush cistern All fixing hardware and fittings Installation instructions What’s Not Included Flush plate (sold separately — see compatible options below) WC pan (sold separately) Soil pipe and waste fittings Installation Designed for in-wall, under-window, and boxed-in installations. The adjustable depth (167–215mm) and 200mm height adjustment make this frame suitable for a wide range of wall constructions and pan heights. Both top and front access options allow future cistern servicing without disturbing tiles. Professional installation by a qualified plumber is recommended. Care & Maintenance The concealed cistern requires no routine maintenance. If servicing is required, access is via the flush plate aperture (front) or top panel. Use only Roper Rhodes-approved replacement parts to maintain the guarantee. Also Available Need a different frame height? View the full Roper Rhodes wall hung WC frame range: Roper Rhodes 0.82m Wall Hung WC Frame with Concealed Cistern – 6/3L Dual Flush | WRAS Approved Roper Rhodes 1.17m Wall Hung WC Frame with Concealed Cistern – 6/3L Dual Flush | WRAS Approved Compatible Flush Plates Complete your installation with a Roper Rhodes flush plate: Roper Rhodes Rondo Dual Flush Plate – Round Style Roper Rhodes Plaza Dual Flush Plate – Chrome | Square Style Roper Rhodes Sensor Dual Flush Plate – Black Glass | Touch-Activated Roper Rhodes Contactless Dual Flush Sensor Plate – Black Glass | Wave-to-Flush Frequently Asked Questions What is the difference between the 0.82m, 1.0m, and 1.17m frames? The 0.82m is the standard height for most domestic installations. The 1.0m is the versatile mid-height option, specifically suited to under-window and boxed-in installations, and uniquely offers both top and front access. The 1.17m is designed for taller pan positions or raised platform installations. All three share the same 6/3L dual flush cistern and WRAS approval. Why choose the 1.0m over the 0.82m or 1.17m? The 1.0m is the only frame in the range to offer both top and front access, making it the most flexible option for servicing. It’s also the preferred choice for under-window installations where the 1.17m would be too tall and the 0.82m may not provide enough height adjustment. Is a flush plate included? No — the flush plate is sold separately. We stock a full range of compatible Roper Rhodes flush plates — see the links above. Can the cistern be serviced without removing tiles? Yes — the 1.0m frame offers both top and front access, allowing the cistern internals to be serviced without disturbing surrounding tiles or wall finishes. What depth of wall does this frame require? The frame depth is adjustable between 167mm and 215mm, making it suitable for a range of stud wall thicknesses. Always confirm your wall construction depth before ordering. Is this WRAS certified? Yes — the Roper Rhodes 1.0m frame and cistern are WRAS (Water Regulations Advisory Scheme) approved, confirming compliance with UK water regulations for domestic installations. What guarantees are included? The frame carries a 10-year guarantee and the concealed cistern a 5-year guarantee, both from Roper Rhodes.

Read more less

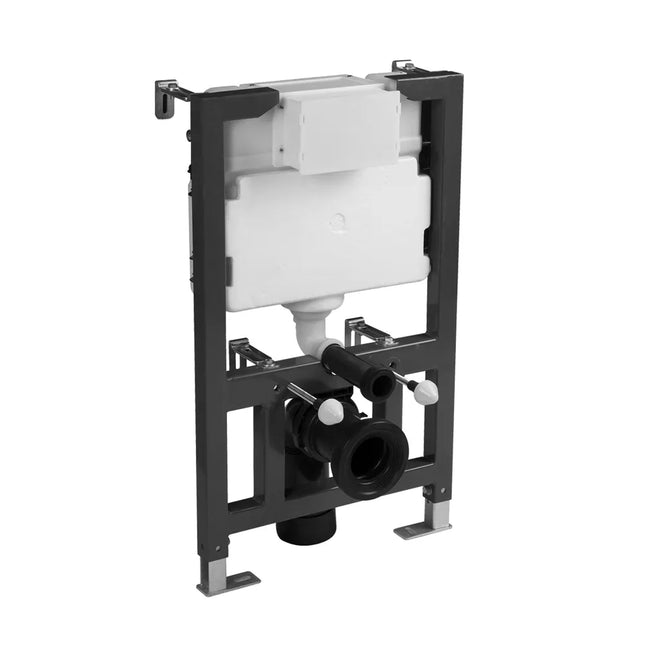

The standard-setter for wall-hung WC installations. The Roper Rhodes 0.82m Wall Hung WC Frame with Concealed Cistern is the go-to choice for most domestic bathroom projects — combining a water-efficient 6/3L dual flush cistern, adjustable depth from 167–215mm, and both top and front access in a robust, WRAS-approved package. Backed by a 10-year frame guarantee, it’s built to perform quietly behind your walls for decades. Key Features 0.82m (812mm) frame height — the standard choice for most domestic wall-hung WC installations Adjustable depth 167–215mm — accommodates varying wall thicknesses Height-adjustable legs for uneven floor compensation 6/3L dual flush concealed cistern — water-efficient and WRAS approved Top and front access — maximum servicing flexibility without breaking tiles All fixing hardware included Compatible with Roper Rhodes furniture adapter kit (TR9007) for furniture unit installations 10-year frame guarantee / 5-year cistern guarantee Technical Specification Frame height: 812mm (0.82m) Frame width: 500mm Depth (adjustable): 167–215mm Flush volume: 6L / 3L dual flush Access: Top and front access Application: In-wall, stud wall Certification: WRAS approved Weight: 15kg Frame guarantee: 10 years Cistern guarantee: 5 years SKU: TR9005 What’s Included 1 × Roper Rhodes 0.82m Wall Hung WC Frame 1 × Concealed 6/3L dual flush cistern All fixing hardware and fittings Installation instructions What’s Not Included Flush plate (sold separately — see compatible options below) WC pan (sold separately) Soil pipe and waste fittings Furniture adapter kit (sold separately as TR9007 if required) Installation Designed for in-wall installation within a stud wall or duct. The adjustable depth (167–215mm) and height-adjustable legs make this frame suitable for a wide range of wall constructions and floor conditions. Both top and front access options allow future cistern servicing without disturbing tiles. Professional installation by a qualified plumber is recommended. Care & Maintenance The concealed cistern requires no routine maintenance. If servicing is required, access is via the flush plate aperture (front) or top panel. Use only Roper Rhodes-approved replacement parts to maintain the guarantee. Also Available Need a different frame height? View the full Roper Rhodes wall hung WC frame range: Roper Rhodes 1.0m Wall Hung WC Frame with Concealed Cistern – 6/3L Dual Flush | WRAS Approved Roper Rhodes 1.17m Wall Hung WC Frame with Concealed Cistern – 6/3L Dual Flush | WRAS Approved Optional Accessories Roper Rhodes Furniture Adapter Kit for 0.82m Wall Hung WC Frame – TR9007 — required for furniture unit installations Compatible Flush Plates Complete your installation with a Roper Rhodes flush plate: Roper Rhodes Rondo Dual Flush Plate – Round Style Roper Rhodes Plaza Dual Flush Plate – Chrome | Square Style Roper Rhodes Sensor Dual Flush Plate – Black Glass | Touch-Activated Roper Rhodes Contactless Dual Flush Sensor Plate – Black Glass | Wave-to-Flush Frequently Asked Questions What is the difference between the 0.82m, 1.0m, and 1.17m frames? The 0.82m is the standard height for most domestic installations and the most commonly specified frame in the range. The 1.0m suits under-window and boxed-in applications. The 1.17m is designed for taller pan positions or raised platform installations. All three share the same 6/3L dual flush cistern and WRAS approval. Can I use a furniture unit with this frame? Yes — the 0.82m frame is compatible with the Roper Rhodes Furniture Adapter Kit (TR9007), which enables a WC furniture unit to be built around the concealed frame for a fully clad installation. Is a flush plate included? No — the flush plate is sold separately. We stock a full range of compatible Roper Rhodes flush plates — see the links above. Can the cistern be serviced without removing tiles? Yes — the 0.82m frame offers both top and front access, allowing the cistern internals to be serviced without disturbing surrounding tiles or wall finishes. What depth of wall does this frame require? The frame depth is adjustable between 167mm and 215mm, making it suitable for a range of stud wall thicknesses. Always confirm your wall construction depth before ordering. Is this WRAS certified? Yes — the Roper Rhodes 0.82m frame and cistern are WRAS (Water Regulations Advisory Scheme) approved, confirming compliance with UK water regulations for domestic installations. What guarantees are included? The frame carries a 10-year guarantee and the concealed cistern a 5-year guarantee, both from Roper Rhodes.

Read more less

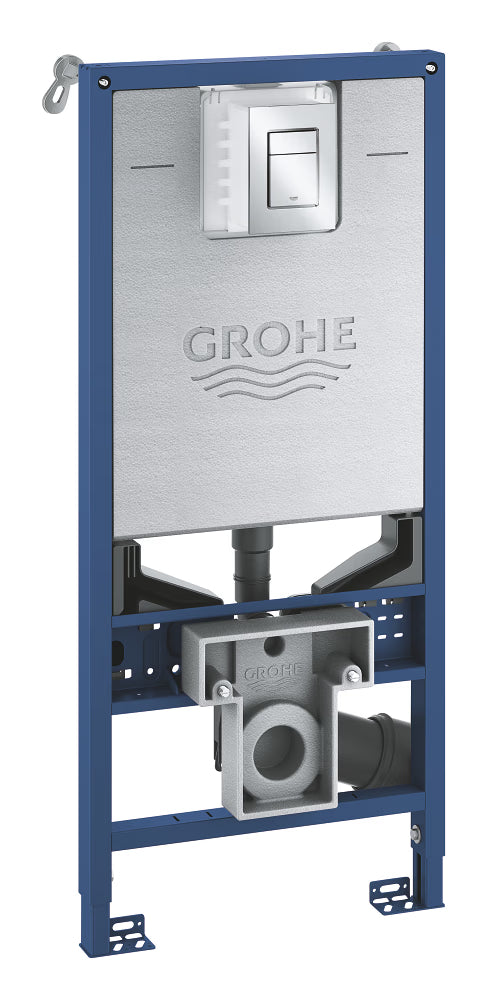

German engineering at its most considered. The Grohe Rapid SLX 3-in-1 Wall Hung WC Frame goes far beyond a standard concealed cistern — it’s a complete installation system designed for speed, flexibility, and long-term performance. TÜV-certified to support 400kg, pre-wired for shower toilet connectivity, and equipped with Grohe’s whisper-quiet flush technology, this is the frame that professional installers and discerning homeowners reach for first. Key Features TÜV approved 400kg load capacity — independently certified structural strength 3-in-1 system — frame, cistern, and installation system in one 1.13m installation height — suits most standard domestic and commercial applications EcoJoy dual flush 3L/6L — water-saving technology built in as standard Whisper technology — ultra-quiet flush for a premium bathroom experience QuickFix installation — faster, easier fitting for professional installers EasyConnect — simplified plumbing connections reduce installation time Plug & Play shower toilet readiness — pre-wired for Grohe shower toilet integration Direct Access Door — front-access servicing without disturbing tiles Flow Manager — compatible with rimless WC pans for optimal flush performance Technical Specification Installation height: 1130mm (1.13m) Load capacity: 400kg (TÜV certified) Flush volume: 3L / 6L dual flush (EcoJoy) Flush technology: Whisper (ultra-quiet) Access: Direct Access Door (front access) Shower toilet ready: Yes — Plug & Play pre-wired Rimless WC compatible: Yes — Flow Manager included Weight: 15.8kg Certification: TÜV approved SKU: 39603000 EAN: 4005176527562 What’s Included 1 × Grohe Rapid SLX frame 1 × Concealed cistern with EcoJoy dual flush EasyConnect plumbing fittings Flow Manager (rimless WC compatibility) All fixing hardware What’s Not Included Flush plate (sold separately) WC pan (sold separately) Soil pipe and waste fittings Installation The Grohe Rapid SLX is designed for fast, professional installation. QuickFix and EasyConnect features significantly reduce fitting time compared to conventional frames. The Direct Access Door allows future cistern servicing without disturbing surrounding tiles. Plug & Play wiring is pre-installed for Grohe shower toilet connectivity. Professional installation by a qualified plumber is recommended. Care & Maintenance The concealed cistern requires no routine maintenance. If servicing is required, access is via the flush plate aperture or Direct Access Door. Use only Grohe-approved replacement parts to maintain the guarantee and performance standards. Frequently Asked Questions What does “3-in-1” mean? The Grohe Rapid SLX combines the frame, concealed cistern, and complete installation system (including EasyConnect plumbing fittings and Flow Manager) into a single, integrated package — reducing the number of components to source and simplifying the installation process. What is Whisper technology? Grohe Whisper technology is an ultra-quiet flush mechanism that significantly reduces flush noise compared to standard cisterns — ideal for en-suites, bedrooms adjacent to bathrooms, or any space where noise is a consideration. What is Plug & Play shower toilet readiness? The Rapid SLX is pre-wired to accept a Grohe shower toilet (bidet WC) without additional electrical work to the frame. This future-proofs your installation if you plan to upgrade to a shower toilet at a later date. Is a flush plate included? No — the flush plate is sold separately. The Rapid SLX is compatible with the full range of Grohe flush plates. Is this compatible with rimless WC pans? Yes — the included Flow Manager optimises flush performance specifically for rimless WC pans, ensuring effective bowl coverage without a traditional rim. What is the load capacity? The Grohe Rapid SLX is TÜV certified to support 400kg — independently tested and verified structural strength for complete peace of mind. Can the cistern be serviced without removing tiles? Yes — the Direct Access Door provides front-access servicing of the cistern internals without disturbing surrounding tiles or wall finishes.

Read more less

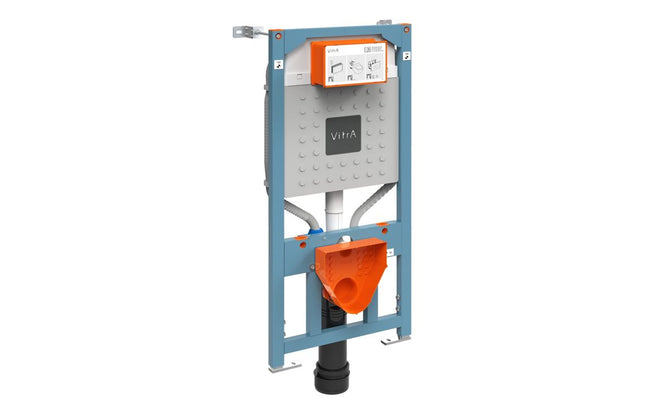

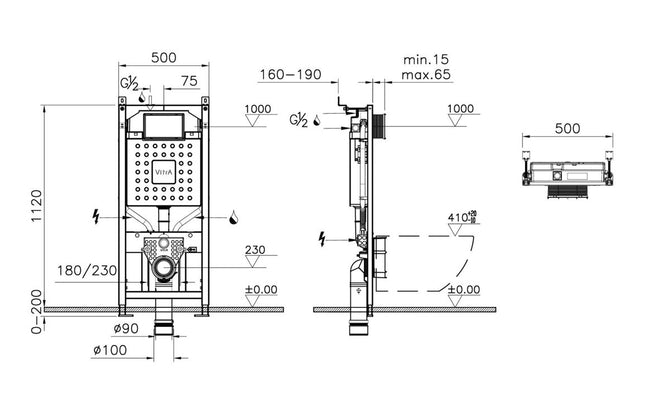

The foundation of every great wall-hung bathroom. The VitrA V-Fix Prime Concealed Cistern & Frame delivers the engineering precision and long-term reliability you’d expect from one of Europe’s leading sanitaryware manufacturers. Tested to 200,000 flushes — equivalent to around 90 years of daily use — and rated to support 400kg, this is a frame built to last a lifetime behind your walls. Key Features 3/6L dual flush for water-efficient performance — WRAS certified Supports up to 400kg — suitable for all wall-hung WC pans Tested to 200,000 flushes (~90 years of typical use) 1120mm frame height — compatible with standard stud wall installations 12cm slim cistern depth — maximises bathroom space Easy-access service panel for maintenance without breaking tiles Compatible with a wide range of VitrA flush plates 10-year manufacturer’s guarantee Technical Specification Model: V-Fix Prime Frame height: 1120mm Frame width: 500mm Cistern depth: 132mm (12cm) Flush volume: 3L / 6L dual flush Weight capacity: 400kg Flush cycles tested: 200,000 Certification: WRAS approved Guarantee: 10 years SKU: VTWP0014 Supplier code: 762-5805-01 EAN: 5054913592485 What’s Included 1 × VitrA V-Fix Prime frame 1 × Concealed cistern (12cm depth) Fixing hardware What’s Not Included Flush plate (sold separately — see compatible options below) WC pan (sold separately) Soil pipe and waste fittings Installation Designed for installation within a stud wall or duct. The V-Fix Prime frame is adjustable to suit different floor-to-ceiling heights and pan positions. Professional installation by a qualified plumber is recommended. The service panel allows future access to the cistern without disturbing surrounding tiles. Care & Maintenance The concealed cistern requires no routine maintenance. If servicing is required, access is via the flush plate aperture or service panel. Use only VitrA-approved replacement parts to maintain the guarantee. Compatible Flush Plates Complete your installation with a VitrA flush plate: VitrA Origin ABS Flush Plate VitrA Loop Round Flush Plate Vitra Loop Square Flush Plate Compatible WC Pans Pair with a VitrA wall-hung WC for a complete installation: VitrA V-Care 3 Core Wall-Hung Smart Toilet VitrA V-Care 3 Base Wall-Hung Smart Toilet VitrA V-Care 3 Prime Wall-Hung Complete Bundle Frequently Asked Questions Does this frame work with any wall-hung WC pan? The V-Fix Prime is designed primarily for use with VitrA wall-hung WC pans. It supports up to 400kg and has a standard 1120mm frame height, making it compatible with most wall-hung pans. Always confirm compatibility with your chosen pan before installation. Is a flush plate included? No — the flush plate is sold separately. We stock a range of compatible VitrA flush plates including the Origin ABS, Loop Round, and Loop Square — see the links above. What is the cistern depth? The V-Fix Prime uses a slim 12cm (132mm) concealed cistern, helping to maximise usable bathroom space within the stud wall. Can the cistern be serviced without removing tiles? Yes — the V-Fix Prime features an easy-access service panel, allowing the cistern internals to be serviced without disturbing surrounding tiles or wall finishes. Is this WRAS certified? Yes — the VitrA V-Fix Prime is WRAS (Water Regulations Advisory Scheme) approved, confirming it meets UK water regulations for use in domestic installations. What guarantee does it come with? The V-Fix Prime comes with a 10-year manufacturer’s guarantee from VitrA. How long will the cistern last? The V-Fix Prime has been tested to 200,000 flush cycles — equivalent to approximately 90 years of typical daily use — making it one of the most rigorously tested concealed cisterns available.

Read more less

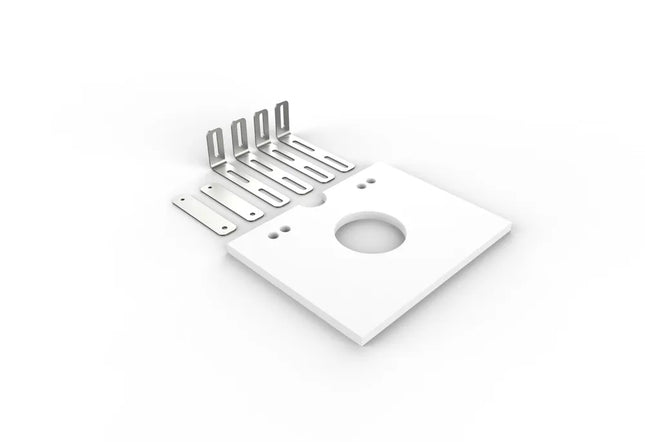

The essential link between your Roper Rhodes wall-hung WC frame and a furniture unit. The Roper Rhodes TR9007 Furniture Adapter Kit is specifically designed for use with the 0.82m Wall Hung WC Frame (TR9005), enabling a seamless, professional-grade furniture integration that conceals the frame within a vanity or WC unit. If you’re building a furniture-clad wall-hung WC installation, this is the part you need. Key Features Designed specifically for the Roper Rhodes 0.82m Wall Hung WC Frame (TR9005) Enables integration of a WC furniture unit around the concealed frame 390 × 285mm dimensions — precise fit for TR9005 frame installations Professional-grade construction for long-term reliability Lightweight at 2kg — easy to handle during installation Sold as a complete adapter kit with all necessary components Technical Specification Width: 390mm Height: 285mm Weight: 2kg Compatible frame: Roper Rhodes 0.82m Wall Hung WC Frame (TR9005) Type: Furniture Adapter Kit SKU: TR9007 What’s Included 1 × Roper Rhodes TR9007 Furniture Adapter Kit Compatibility This adapter kit is compatible exclusively with the Roper Rhodes 0.82m Wall Hung WC Frame (TR9005). It is not suitable for use with other frame heights or third-party frames. Always confirm your frame model before ordering. Installation The adapter kit is fitted to the TR9005 frame prior to or during the furniture unit installation. Professional installation by a qualified plumber or bathroom fitter is recommended to ensure correct alignment and a clean finish. Complete Your Installation Build your complete wall-hung WC setup with these compatible products: Roper Rhodes 0.82m Wall Hung WC Frame with Concealed Cistern – 6/3L Dual Flush | WRAS Approved Roper Rhodes Rondo Dual Flush Plate – Round Style Roper Rhodes Plaza Dual Flush Plate – Chrome | Square Style Frequently Asked Questions Which frame is this adapter kit compatible with? The TR9007 is designed exclusively for the Roper Rhodes 0.82m Wall Hung WC Frame (TR9005). It is not compatible with other frame heights or third-party frames. Do I need this kit if I’m not using a furniture unit? No — this adapter kit is only required if you are integrating a WC furniture unit around the concealed frame. Standard frame installations without furniture do not require this kit. Is the frame (TR9005) included? No — the TR9005 frame is sold separately. See the link above to add it to your order. Is professional installation required? Professional installation by a qualified plumber or bathroom fitter is strongly recommended to ensure correct alignment between the frame, adapter kit, and furniture unit. What is the weight of this kit? The TR9007 Furniture Adapter Kit weighs 2kg, making it easy to handle during installation.

Read more less
