Description

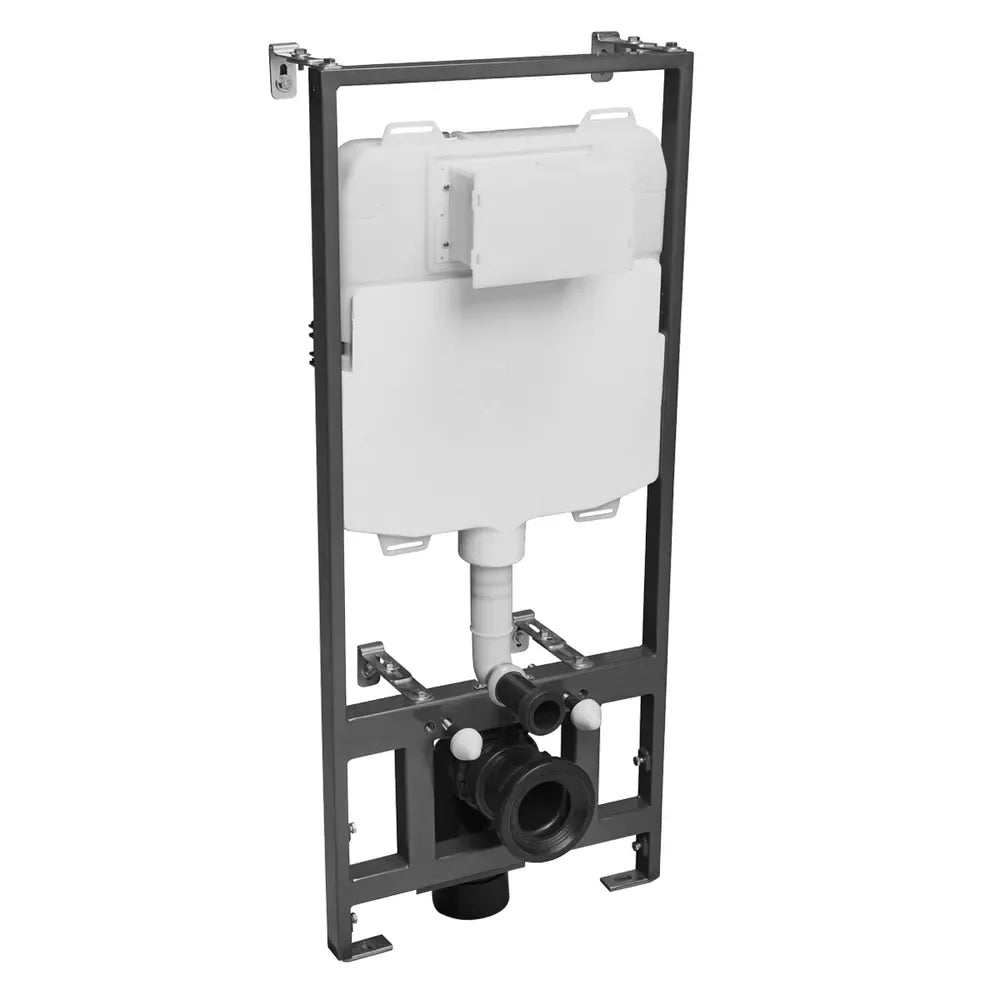

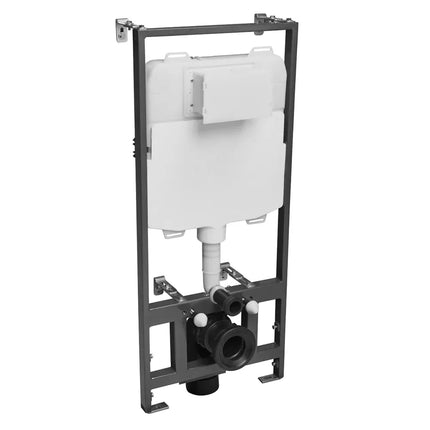

Built for taller installations and commercial-grade reliability, the Roper Rhodes 1.17m Wall Hung WC Frame with Concealed Cistern delivers the flexibility and precision that demanding bathroom projects require. With a 200mm height adjustment range, adjustable depth from 167–215mm, and front-access servicing, this is a frame engineered to fit where others won’t — and last where it matters most.
Key Features
- 1.17m (1168mm) frame height — ideal for taller pan positions or raised installations
- Adjustable depth 167–215mm — accommodates varying wall thicknesses
- 200mm height adjustment range for precise pan positioning
- Height-adjustable legs for uneven floor compensation
- 6/3L dual flush concealed cistern — water-efficient and WRAS approved
- Front-access cistern — serviceable without breaking tiles
- All fixing hardware included
- 10-year frame guarantee / 5-year cistern guarantee
Technical Specification
-
Frame height: 1168mm (1.17m)
-
Frame width: 500mm
-
Depth (adjustable): 167–215mm
-
Height adjustment: 200mm
-
Leg adjustment: 2mm
-
Flush volume: 6L / 3L dual flush
-
Access: Front access
-
Application: In-wall
-
Certification: WRAS approved
-
Weight: 16kg
-
Frame guarantee: 10 years
-
Cistern guarantee: 5 years
-
SKU: TR9006
What’s Included
- 1 × Roper Rhodes 1.17m Wall Hung WC Frame
- 1 × Concealed 6/3L dual flush cistern
- All fixing hardware and fittings
What’s Not Included
- Flush plate (sold separately — see compatible options below)
- WC pan (sold separately)
- Soil pipe and waste fittings
Installation

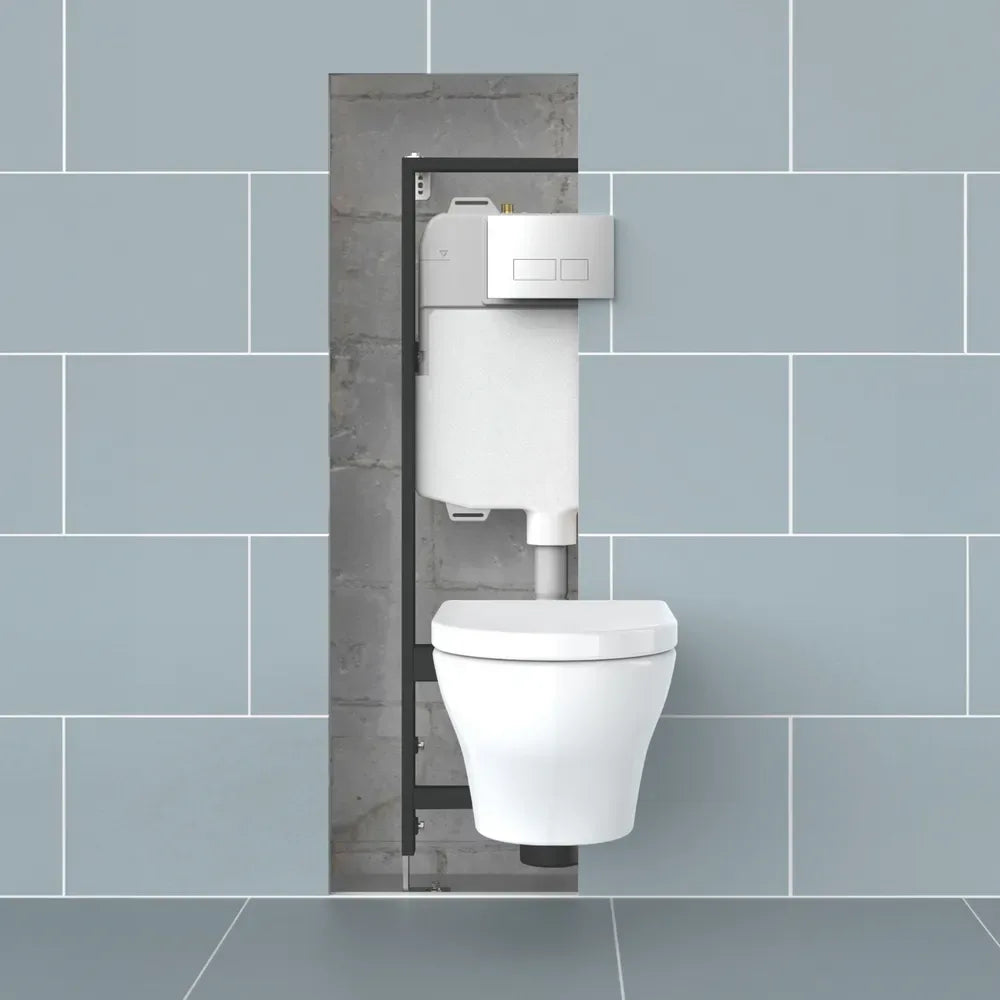

Designed for in-wall installation within a stud wall or duct. The adjustable depth (167–215mm) and 200mm height adjustment make this frame suitable for a wide range of wall constructions and pan heights. Front-access design allows future cistern servicing without disturbing tiles. Professional installation by a qualified plumber is recommended.
Care & Maintenance
The concealed cistern requires no routine maintenance. If servicing is required, access is via the flush plate aperture or front panel. Use only Roper Rhodes-approved replacement parts to maintain the guarantee.
Also Available
Need a different frame height? View the full Roper Rhodes wall hung WC frame range:
Compatible Flush Plates
Complete your installation with a Roper Rhodes flush plate:
Frequently Asked Questions
What is the difference between the 0.82m, 1.0m, and 1.17m frames?
The three frame heights accommodate different pan positions and installation requirements. The 0.82m is the standard height for most domestic installations. The 1.0m suits mid-height or commercial applications. The 1.17m is designed for taller pan positions, raised platforms, or installations requiring maximum height flexibility. All three share the same 6/3L dual flush cistern and WRAS approval.
Is a flush plate included?
No — the flush plate is sold separately. We stock a full range of compatible Roper Rhodes flush plates including the Rondo (round), Plaza (square chrome), Sensor (touch-activated black glass), and Contactless (wave-to-flush black glass) — see the links above.
Can the cistern be serviced without removing tiles?
Yes — the 1.17m frame features front-access design, allowing the cistern internals to be serviced through the flush plate aperture without disturbing surrounding tiles or wall finishes.
What depth of wall does this frame require?
The frame depth is adjustable between 167mm and 215mm, making it suitable for a range of stud wall thicknesses. Always confirm your wall construction depth before ordering.
Is this WRAS certified?
Yes — the Roper Rhodes 1.17m frame and cistern are WRAS (Water Regulations Advisory Scheme) approved, confirming compliance with UK water regulations for domestic installations.
What guarantees are included?
The frame carries a 10-year guarantee and the concealed cistern a 5-year guarantee, both from Roper Rhodes.
