Description

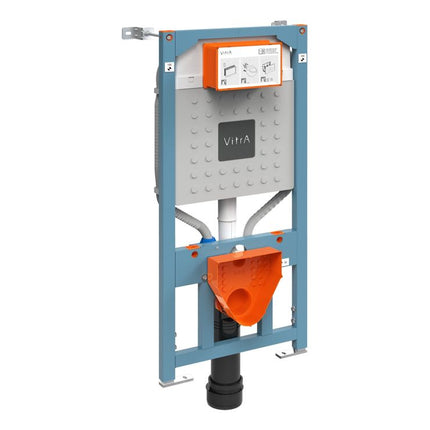

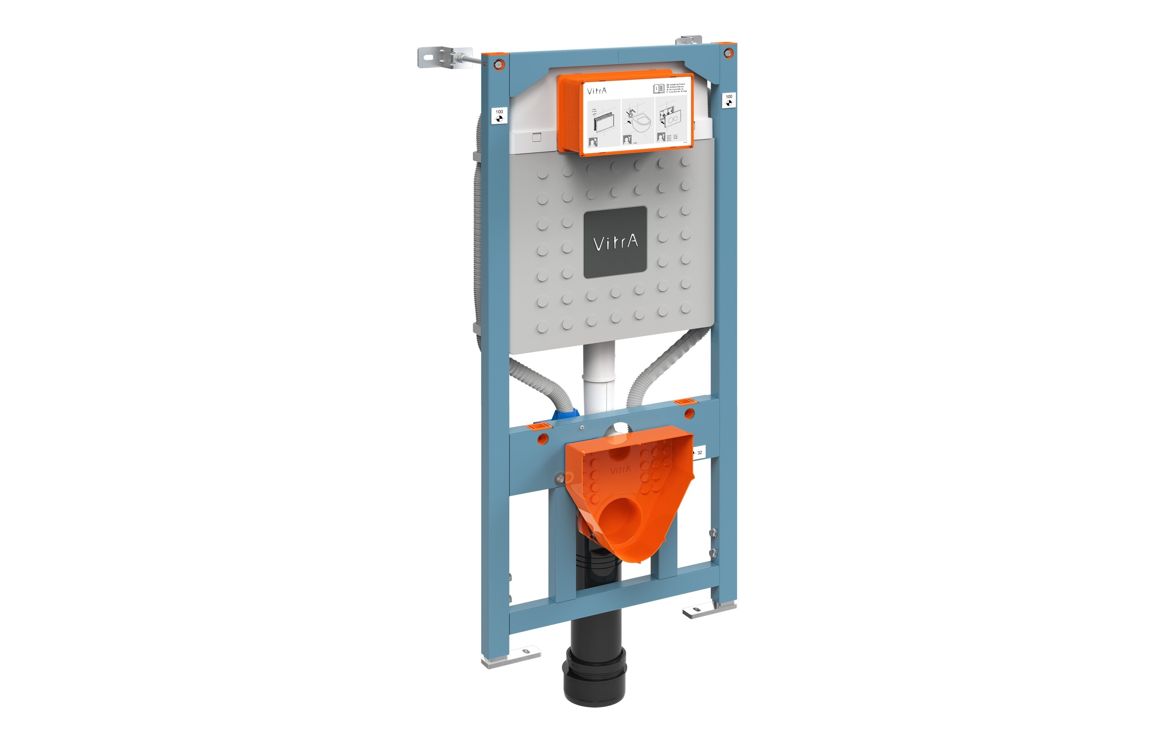

The foundation of every great wall-hung bathroom. The VitrA V-Fix Prime Concealed Cistern & Frame delivers the engineering precision and long-term reliability you'd expect from one of Europe's leading sanitaryware manufacturers. Tested to 200,000 flushes — equivalent to around 90 years of daily use — and rated to support 400kg, this is a frame built to last a lifetime behind your walls.
Key Features
- ✔ 3/6L dual flush — water-efficient performance, WRAS certified
- ✔ Supports up to 400kg — suitable for all wall-hung WC pans
- ✔ Tested to 200,000 flushes (~90 years of typical use)
- ✔ 1120mm frame height — compatible with standard stud wall installations
- ✔ 132mm slim cistern depth — maximises bathroom space
- ✔ Easy-access service panel — maintenance without breaking tiles
- ✔ Compatible with a wide range of VitrA flush plates
- ✔ 10-year manufacturer's guarantee

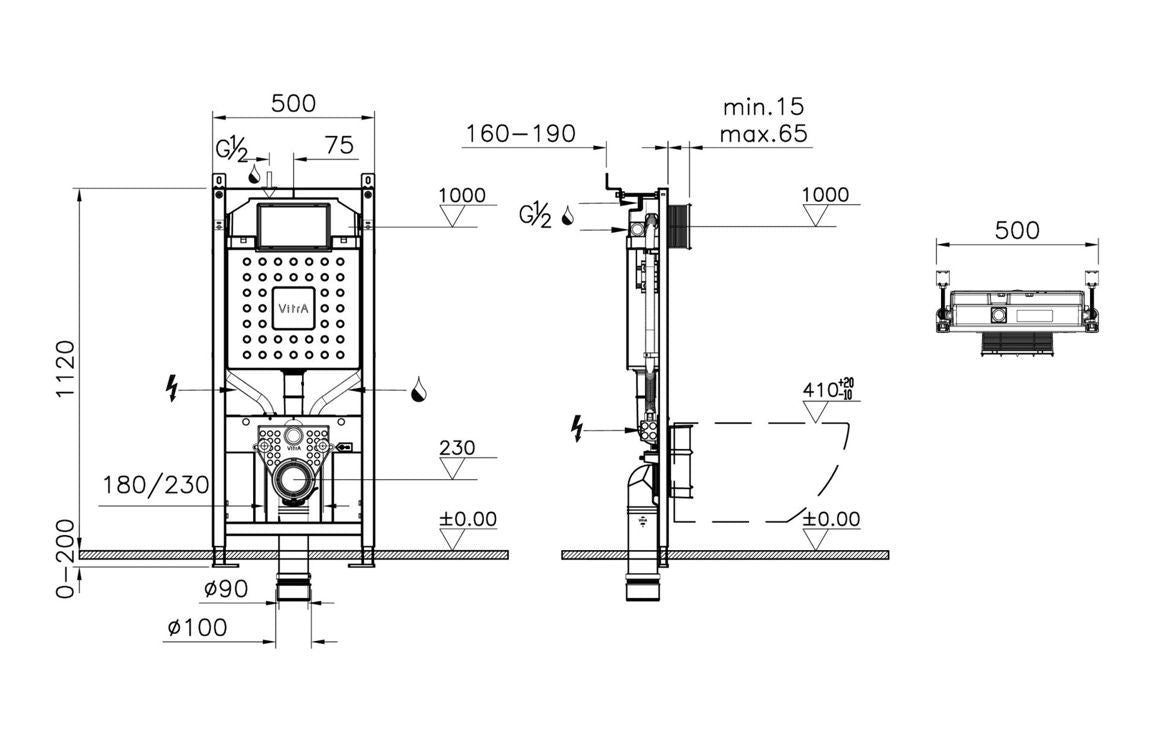

Technical Specification
-
Brand: VitrA
-
Model: V-Fix Prime
-
SKU: VTWP0014
-
Supplier Code: 762-5805-01
-
Barcode (EAN): 5054913592485
-
Frame Height: 1120mm
-
Frame Width: 500mm
-
Cistern Depth: 132mm
-
Flush Volume: 3L / 6L dual flush
-
Weight Capacity: 400kg
-
Flush Cycles Tested: 200,000
-
Certification: WRAS Approved
-
Guarantee: 10 Years
-
Country of Origin: Turkey
-
HS Code: 848180
What's Included
- 1 × VitrA V-Fix Prime frame
- 1 × Concealed cistern (132mm depth)
- Fixing hardware
What's Not Included
- Flush plate (sold separately — see compatible options below)
- WC pan (sold separately)
- Soil pipe and waste fittings
Compatible Flush Plates
Complete your installation with a VitrA flush plate:
Compatible WC Pans
Pair with a VitrA wall-hung WC for a complete installation:
Installation
Designed for installation within a stud wall or duct. The V-Fix Prime frame is adjustable to suit different floor-to-ceiling heights and pan positions. Professional installation by a qualified plumber is recommended. The service panel allows future access to the cistern without disturbing surrounding tiles.
Care & Maintenance
The concealed cistern requires no routine maintenance. If servicing is required, access is via the flush plate aperture or service panel. Use only VitrA-approved replacement parts to maintain the guarantee.
Frequently Asked Questions
Does this frame work with any wall-hung WC pan?
The V-Fix Prime is designed primarily for use with VitrA wall-hung WC pans. It supports up to 400kg and has a standard 1120mm frame height, making it compatible with most wall-hung pans. Always confirm compatibility with your chosen pan before installation.
Is a flush plate included?
No — the flush plate is sold separately. We stock a range of compatible VitrA flush plates including the Origin ABS, Loop Round, and Loop Square — see the links above.
What is the cistern depth?
The V-Fix Prime uses a slim 132mm concealed cistern, helping to maximise usable bathroom space within the stud wall.
Can the cistern be serviced without removing tiles?
Yes — the V-Fix Prime features an easy-access service panel, allowing the cistern internals to be serviced without disturbing surrounding tiles or wall finishes.
Is this WRAS certified?
Yes — the VitrA V-Fix Prime is WRAS (Water Regulations Advisory Scheme) approved, confirming it meets UK water regulations for use in domestic installations.
What guarantee does it come with?
The V-Fix Prime comes with a 10-year manufacturer's guarantee from VitrA.
How long will the cistern last?
The V-Fix Prime has been tested to 200,000 flush cycles — equivalent to approximately 90 years of typical daily use — making it one of the most rigorously tested concealed cisterns available.
