Description

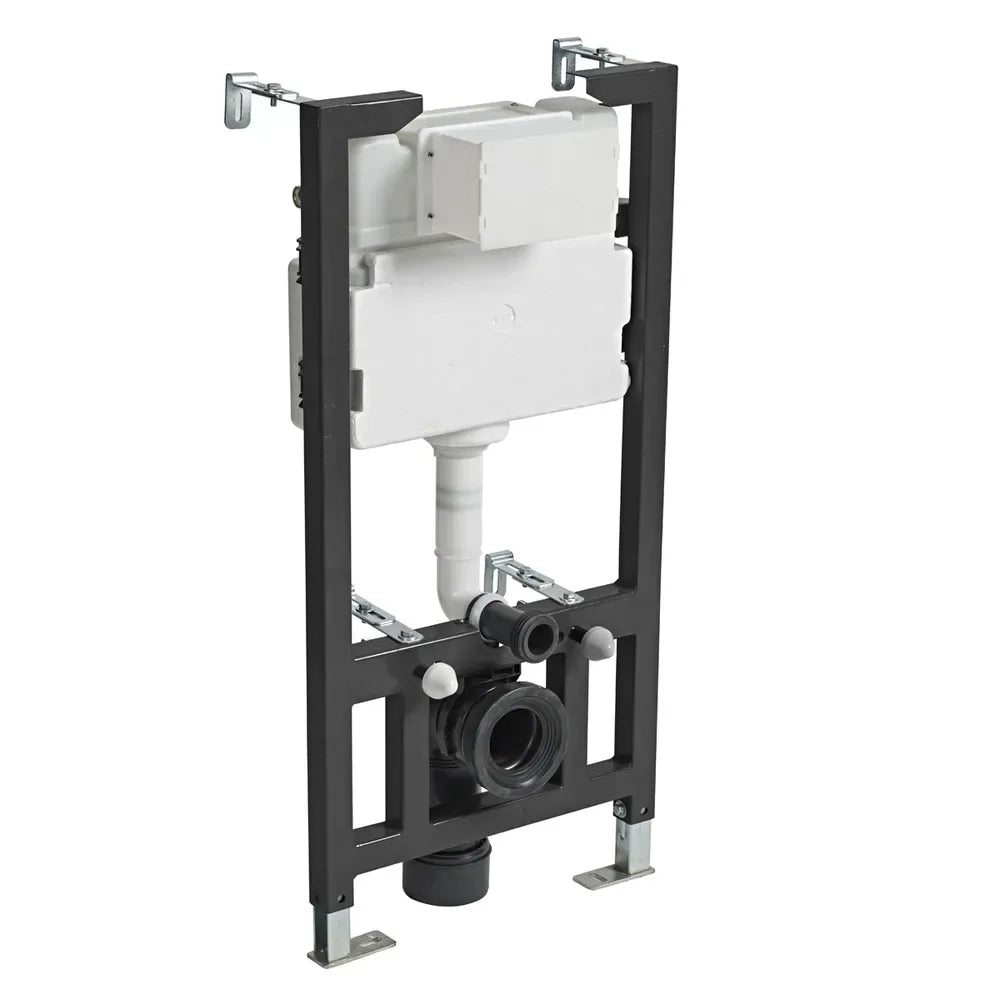

The versatile mid-height choice for wall-hung WC installations. The Roper Rhodes 1.0m Wall Hung WC Frame with Concealed Cistern is engineered for under-window, boxed-in, and in-wall applications where flexibility is everything. With both top and front access, adjustable depth from 167–215mm, and a 200mm height adjustment range, it adapts to your space — not the other way around.
Key Features
- 1.0m (1000mm) frame height — ideal for under-window and boxed-in installations
- Adjustable depth 167–215mm — accommodates varying wall thicknesses
- 200mm height adjustment range for precise pan positioning
- Height-adjustable legs for uneven floor compensation
- 6/3L dual flush concealed cistern — water-efficient and WRAS approved
- Top and front access — maximum servicing flexibility
- All fixing hardware included
- 10-year frame guarantee / 5-year cistern guarantee
Technical Specification
-
Frame height: 1000mm (1.0m)
-
Frame width: 500mm
-
Depth (adjustable): 167–215mm
-
Height adjustment: 200mm
-
Flush volume: 6L / 3L dual flush
-
Access: Top and front access
-
Application: Under-window, boxed-in, in-wall
-
Certification: WRAS approved
-
Weight: 15kg
-
Frame guarantee: 10 years
-
Cistern guarantee: 5 years
-
SKU: TR9015
What’s Included
- 1 × Roper Rhodes 1.0m Wall Hung WC Frame
- 1 × Concealed 6/3L dual flush cistern
- All fixing hardware and fittings
- Installation instructions
What’s Not Included
- Flush plate (sold separately — see compatible options below)
- WC pan (sold separately)
- Soil pipe and waste fittings
Installation

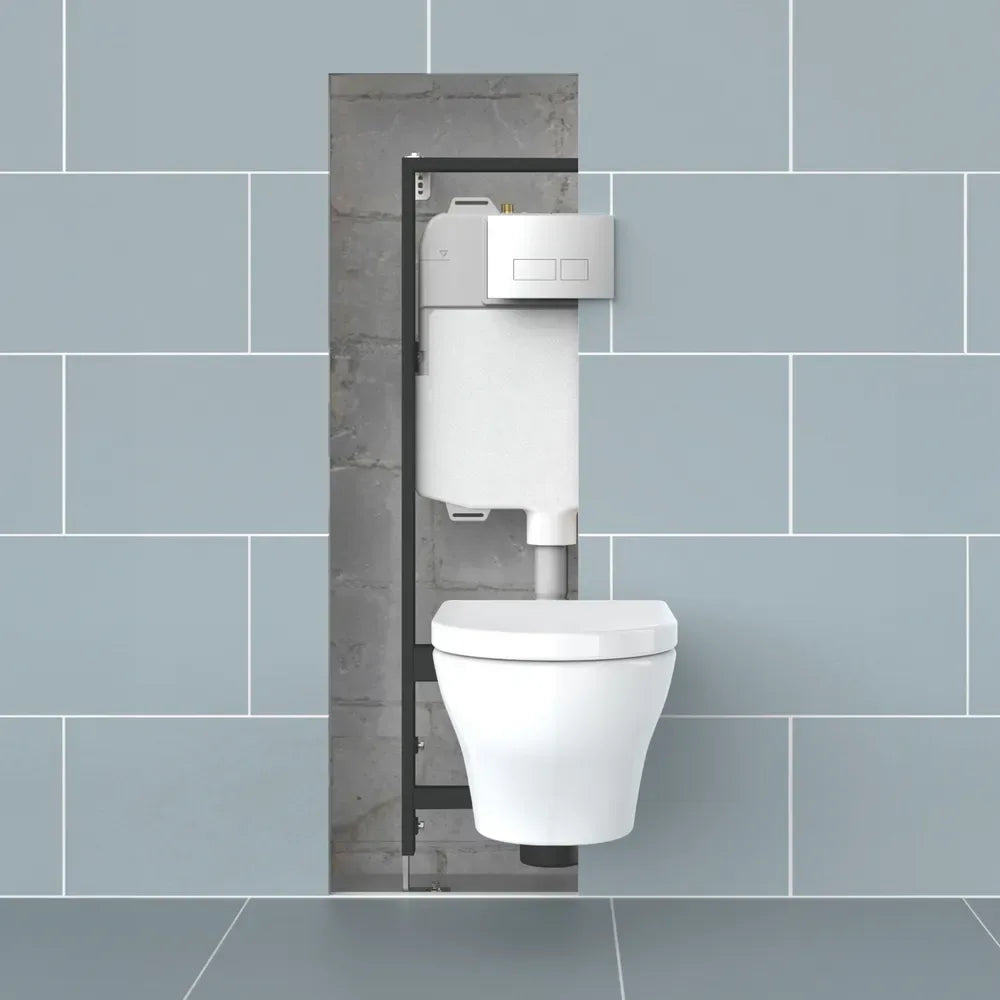

Designed for in-wall, under-window, and boxed-in installations. The adjustable depth (167–215mm) and 200mm height adjustment make this frame suitable for a wide range of wall constructions and pan heights. Both top and front access options allow future cistern servicing without disturbing tiles. Professional installation by a qualified plumber is recommended.
Care & Maintenance
The concealed cistern requires no routine maintenance. If servicing is required, access is via the flush plate aperture (front) or top panel. Use only Roper Rhodes-approved replacement parts to maintain the guarantee.
Also Available
Need a different frame height? View the full Roper Rhodes wall hung WC frame range:
Compatible Flush Plates
Complete your installation with a Roper Rhodes flush plate:
Frequently Asked Questions
What is the difference between the 0.82m, 1.0m, and 1.17m frames?
The 0.82m is the standard height for most domestic installations. The 1.0m is the versatile mid-height option, specifically suited to under-window and boxed-in installations, and uniquely offers both top and front access. The 1.17m is designed for taller pan positions or raised platform installations. All three share the same 6/3L dual flush cistern and WRAS approval.
Why choose the 1.0m over the 0.82m or 1.17m?
The 1.0m is the only frame in the range to offer both top and front access, making it the most flexible option for servicing. It’s also the preferred choice for under-window installations where the 1.17m would be too tall and the 0.82m may not provide enough height adjustment.
Is a flush plate included?
No — the flush plate is sold separately. We stock a full range of compatible Roper Rhodes flush plates — see the links above.
Can the cistern be serviced without removing tiles?
Yes — the 1.0m frame offers both top and front access, allowing the cistern internals to be serviced without disturbing surrounding tiles or wall finishes.
What depth of wall does this frame require?
The frame depth is adjustable between 167mm and 215mm, making it suitable for a range of stud wall thicknesses. Always confirm your wall construction depth before ordering.
Is this WRAS certified?
Yes — the Roper Rhodes 1.0m frame and cistern are WRAS (Water Regulations Advisory Scheme) approved, confirming compliance with UK water regulations for domestic installations.
What guarantees are included?
The frame carries a 10-year guarantee and the concealed cistern a 5-year guarantee, both from Roper Rhodes.
