Shower Tray Wastes

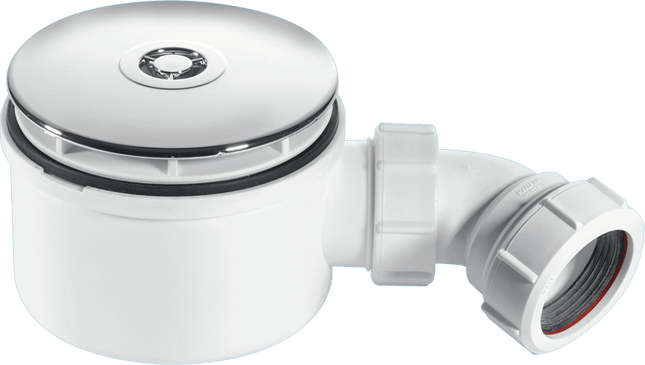

McAlpine Shallow Shower Trap — 90mm — 70mm Height — 50mm Seal — ST90CB10-70 The McAlpine ST90CB10-70 is a shallow shower trap engineered for low-profile shower installations with restricted sub-floor clearance. At 70mm overall height with a superior 50mm water seal and 34 litre/min flow rate, it delivers full performance in space-constrained applications. Designed for shower trays with a thickness of 0–23mm — making it the correct choice for thinner tray profiles. The polypropylene body is supplied with a removable 110mm flange and all fittings for a complete installation. Fully compliant with BS EN 274-1:2002. ⚠️ Check tray thickness and clearance before ordering. The ST90CB10-70 is suitable for tray thickness 0–23mm and requires 70mm clearance beneath the tray. If your tray is 5–30mm thick, see the McAlpine ST90CPB-S-70. If you need less than 70mm clearance, see the McAlpine ST90CPB-S-53 (53mm height). Key Features 70mm overall height — suitable for low-profile installations with restricted sub-floor depth 50mm water seal — superior odour protection; exceeds the minimum 25mm seal requirement 34 litres/min flow rate — high drainage performance; prevents water pooling 90mm waste hole — fits standard shower trays with 90mm waste apertures Suitable for tray thickness 0–23mm — designed for thinner tray profiles 1½" BSP thread — standard UK connection size Removable 110mm flange — chrome plated brass or white/chrome plastic options; easy cleaning Multifit outlet connection — compatible with plastic waste pipes (BS EN 1451-1 & BS EN 1329-1), copper, and lead pipe Complete installation kit — 135° bend, BSP coupling nut, and 1½" universal connector included BS EN 274 compliant — tested to BS EN 274-1:2002 and BS EN 274-2:2002 Technical Specification Brand: McAlpine Model: ST90CB10-70 SKU: ST90CB10-70 EAN: 5036484043856 Type: Shallow shower trap Waste hole diameter: 90mm Overall height: 70mm Under-tray clearance required: 70mm Suitable tray thickness: 0–23mm Water seal depth: 50mm Flow rate: 34 litres/min (tested under 15mm constant head, BS EN 274-2:2002) Thread size: 1½" BSP Outlet: 1½" Multifit (suits plastic, copper, and lead waste pipe) Flange diameter: 110mm (removable) Flange options: White plastic / Chrome plated plastic / Chrome plated brass Body material: Polypropylene Standards: BS EN 274-1:2002 & BS EN 274-2:2002 What’s Included McAlpine ST90CB10-70 shallow shower trap body 110mm removable flange (finish as selected) 135° bend BSP coupling nut 1½" universal connector Installation instructions Suitable For Shower trays with 0–23mm tray thickness and 90mm waste hole Low-profile shower tray installations with restricted sub-floor depth Timber floor constructions and first-floor bathrooms with limited joist depth Bathroom renovations and retrofit projects with shallow under-floor clearance Wet room conversions with shallow floor build-ups Also Available — McAlpine Shallow Traps McAlpine ST90CPB-S-70 — 90mm, 70mm Height, 50mm Seal — suits tray thickness 5–30mm; solvent weld outlet McAlpine ST90CPB-S-53 — 90mm, 53mm Height, 25mm Seal — for severely restricted clearance Coordinate Your Shower Installation Shower Trays — browse compatible low profile trays Shower Enclosures — complete your shower installation Shower Valves & Accessories — valves, heads, and arms Frequently Asked Questions What is the difference between the ST90CB10-70 and the ST90CPB-S-70? Both are McAlpine 90mm shallow traps with 70mm height, 50mm water seal, and 34L/min flow rate. The key difference is tray thickness compatibility and outlet type. The ST90CB10-70 (this product) suits tray thickness 0–23mm and has a Multifit outlet compatible with plastic, copper, and lead pipe. The ST90CPB-S-70 suits tray thickness 5–30mm and has a 1½" solvent weld outlet. Check your tray thickness and pipework type before ordering. What clearance does this trap require beneath the shower tray? The ST90CB10-70 has an overall height of 70mm and requires 70mm of clearance beneath the shower tray. Measure the available depth between the underside of your shower tray and the floor before ordering. If you have less than 70mm available, see the McAlpine ST90CPB-S-53 (53mm height). What tray thickness is this trap suitable for? The ST90CB10-70 is designed for shower trays with a thickness of 0–23mm. If your tray is between 5–30mm thick, the ST90CPB-S-70 may also be suitable — check the overlap range for your specific tray thickness. What is a Multifit connection? McAlpine’s Multifit connection is a versatile outlet system compatible with all plastic waste pipes to BS EN 1451-1 and BS EN 1329-1, as well as copper pipe (metric or imperial) and lead pipe. A moulded internal sleeve centres and supports the pipe, whilst Multifit and friction washers ensure a secure seal. The joint is completed hand-tight — no tools required. This makes the ST90CB10-70 compatible with a wider range of existing pipework than a standard solvent weld outlet. What is the water seal depth, and why does it matter? The water seal depth is 50mm. The water seal is the depth of water retained in the trap that prevents sewer gases from entering the bathroom. The minimum required by UK building regulations is 25mm. A 50mm seal provides significantly better odour protection and is less likely to evaporate in infrequently used showers. What flange finishes are available? The ST90CB10-70 is available with a white plastic, chrome plated plastic, or chrome plated brass 110mm removable flange. The flange sits over the waste hole on the tray surface and is removable for easy cleaning without disturbing the trap body. Is this trap BS EN 274 compliant? Yes — the McAlpine ST90CB10-70 is fully compliant with BS EN 274-1:2002 (requirements) and BS EN 274-2:2002 (test methods), the relevant British and European standard for sanitary waste fittings. Can I order if the item shows as out of stock? Yes — this product is available to order even when stock shows as zero. Please allow additional lead time and contact us on 01603 381095 to confirm availability.

Read more less

TOP-FIX Shower Tray Waste — 90mm — Top-Fix Installation — Chrome, Matt Black & Brushed Brass The TOP-FIX Shower Tray Waste is an innovative 90mm shower waste designed to make installation easier. The waste body is secured to the tray entirely from above — no underneath access required to fix the fitting to the tray. Under-tray access is still needed to connect the waste pipe outlet. The removable water seal trap delivers reliable fast-flow drainage. Available in Chrome, Matt Black, and Brushed Brass to coordinate with your shower valve, taps, and accessories. ✅ Waste body fixes to tray from above. No underneath access required to secure the fitting to the tray. Note: under-tray access is still required to connect the waste pipe outlet. Ideal for low-profile trays and raised installations where tightening from below is difficult or impossible. Available Finishes & Prices Chrome — £23 (SKU: PDT-000598 · EAN: 5056634504174) Matt Black — £23 (SKU: PDT-000729 · EAN: 5056634504846) Brushed Brass — £26 (SKU: PDT-000733 · EAN: 5056634504884) Key Features TOP-FIX installation — waste body secured to tray from above; no underneath access needed to fix the fitting 90mm waste opening — standard size; fits the majority of UK shower trays Polypropylene and rubber construction — durable, lightweight body with rubber sealing components Fast-flow drainage — rapid water clearance; prevents pooling Removable water seal trap — prevents odours; easy to remove for cleaning 3 finish options — Chrome / Matt Black / Brushed Brass Standard UK waste pipe connections Technical Specification Brand: TOP-FIX Type: Shower tray waste with removable trap Installation: Top-fix — waste body secured from above; pipe connection requires under-tray access Waste opening: 90mm (3.5") Body material: Polypropylene and rubber Trap: Removable water seal trap Drainage: Fast-flow Connection: Standard UK waste pipe fittings Finish options: Chrome / Matt Black / Brushed Brass SKU (Chrome): PDT-000598 · EAN: 5056634504174 SKU (Matt Black): PDT-000729 · EAN: 5056634504846 SKU (Brushed Brass): PDT-000733 · EAN: 5056634504884 What’s Included TOP-FIX shower tray waste body (polypropylene and rubber) Removable water seal trap Waste cover in chosen finish Installation fixings Installation instructions Coordinate Your Shower Shower Trays — browse compatible low profile and standard trays Shower Enclosures — complete your shower installation Shower Valves & Accessories — match your finish across valves, heads, and arms Frequently Asked Questions How does the TOP-FIX installation system work? The TOP-FIX system allows the waste body to be secured to the shower tray entirely from above — no need to reach underneath the tray to tighten the back nut. This is the key advantage over traditional shower wastes, which require underneath access to fix the fitting to the tray. Please note: under-tray access is still required to connect the waste pipe outlet to your drainage pipework. The TOP-FIX system eliminates the awkward step of fixing the waste to the tray, but standard pipe connection beneath the tray is still needed. Do I still need access under the tray? Yes — under-tray access is still required to connect the waste pipe outlet. The TOP-FIX system means you do not need underneath access to secure the waste body to the tray, which is the most awkward part of a traditional installation. However, you will still need to connect the outlet to your waste pipe from below. Ensure you have sufficient access for pipe connection before ordering. What is the waste body made from? The waste body is constructed from polypropylene and rubber. Polypropylene provides a lightweight, durable, and corrosion-resistant body, whilst the rubber components provide the sealing and flexibility needed for a watertight installation. What size shower trays does this waste fit? This waste fits shower trays with a 90mm (3.5") waste hole. This is the standard waste hole size for the majority of UK shower trays, including low-profile, standard height, and walk-in tray formats. Check your tray specification before ordering if you are unsure. What finishes are available? The TOP-FIX shower tray waste is available in Chrome (£23), Matt Black (£23), and Brushed Brass (£26). Select your preferred finish from the dropdown above. Does this waste include a trap? Yes — a removable water seal trap is included. The water seal prevents sewer gases from entering the bathroom. The trap is removable for easy cleaning and debris removal. What waste pipe connection does this use? The TOP-FIX waste uses standard UK waste pipe fittings. Please confirm the specific outlet size and connection type with the installation instructions supplied, or call us on 01603 381095 before ordering if you need to confirm compatibility with your existing pipework. Can I order if the item shows as out of stock? Yes — please contact us on 01603 381095 to check availability and lead time.

Read more less

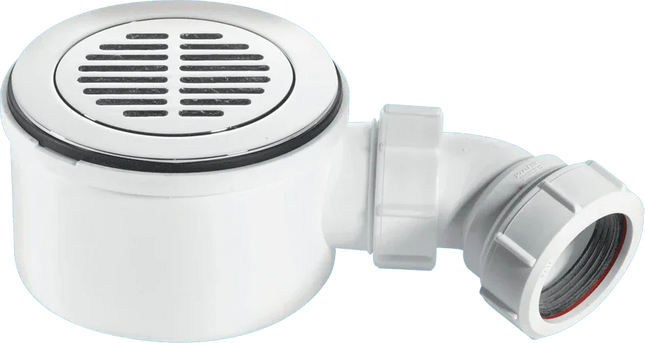

McAlpine Shallow Shower Trap — 90mm — 70mm Height — 50mm Seal — ST90CPB-S-70 The McAlpine ST90CPB-S-70 is a premium shallow shower trap engineered for low-profile shower installations where under-floor clearance is restricted. At just 70mm overall height with a superior 50mm water seal and a high 34 litre/min flow rate, it delivers full performance without requiring deep sub-floor access. The polypropylene body is supplied with a removable 110mm chrome plated brass flange and all fittings for a complete installation. Fully compliant with BS EN 274-1:2002 and BS EN 274-2:2002. ⚠️ Check clearance before ordering. This trap requires 70mm of clearance beneath the shower tray. Confirm your sub-floor depth before purchasing. For installations with less than 70mm clearance, an ultra-low profile trap will be required. Key Features 70mm overall height — suitable for low-profile installations with restricted sub-floor depth 50mm water seal — superior odour protection; exceeds the minimum 25mm seal requirement 34 litres/min flow rate — high drainage performance; prevents water pooling 90mm waste hole — fits standard shower trays with 90mm waste apertures 1½" BSP thread — standard UK connection size Removable 110mm flange — chrome plated brass; easy cleaning and debris removal 1½" solvent weld outlet — secure, leak-free connection to waste pipe Complete installation kit — 135° bend, BSP coupling nut, and 1½" universal connector included BS EN 274 compliant — tested to BS EN 274-1:2002 and BS EN 274-2:2002 Technical Specification Brand: McAlpine Model: ST90CPB-S-70 SKU: ST90CPB-S-70 EAN: 5036484043870 Type: Shallow shower trap Waste hole diameter: 90mm Overall height: 70mm Under-tray clearance required: 70mm Water seal depth: 50mm Flow rate: 34 litres/min (tested under 15mm constant head, BS EN 274-2:2002) Thread size: 1½" BSP Outlet: 1½" solvent weld Flange diameter: 110mm (removable) Flange finish: Chrome plated brass Body material: Polypropylene Weight: 0.35kg Standards: BS EN 274-1:2002 & BS EN 274-2:2002 What’s Included McAlpine ST90CPB-S-70 shallow shower trap body 110mm chrome plated brass removable flange 135° bend BSP coupling nut 1½" universal connector Installation instructions Suitable For Low-profile shower tray installations with restricted sub-floor depth Timber floor constructions and first-floor bathrooms with limited joist depth Bathroom renovations and retrofit projects with shallow under-floor clearance Wet room conversions with shallow floor build-ups Any installation requiring a 90mm waste hole trap with 70mm clearance Coordinate Your Shower Installation Shower Trays — browse compatible low profile trays Shower Enclosures — complete your shower installation Shower Valves & Accessories — valves, heads, and arms Frequently Asked Questions What clearance does this trap require beneath the shower tray? The McAlpine ST90CPB-S-70 has an overall height of 70mm and requires 70mm of clearance beneath the shower tray for the trap body. Measure the available depth between the underside of your shower tray and the floor (or top of the joist) before ordering. If you have less than 70mm available, you will need an ultra-low profile trap. What size waste hole does this trap fit? This trap is designed for shower trays with a 90mm waste hole and a 1½" BSP thread. This is the standard waste hole size for the majority of UK shower trays. Check your tray specification before ordering if you are unsure. What is the water seal depth, and why does it matter? The water seal depth is 50mm. The water seal is the depth of water retained in the trap that prevents sewer gases from entering the bathroom. The minimum required by UK building regulations is 25mm. A 50mm seal provides significantly better odour protection and is less likely to evaporate in infrequently used showers, making it the preferred choice for professional installations. What is the flow rate of this trap? The ST90CPB-S-70 has a tested flow rate of 34 litres per minute (tested under a 15mm constant head to BS EN 274-2:2002). This is a high flow rate for a shallow trap, ensuring rapid drainage and preventing water pooling even with power showers and high-flow shower heads. What type of outlet connection does this trap use? The outlet is 1½" solvent weld. This connects to standard 40mm (1½") solvent weld waste pipe. A 135° bend, BSP coupling nut, and 1½" universal connector are included to allow flexible pipe routing beneath the tray. Is this trap BS EN 274 compliant? Yes — the McAlpine ST90CPB-S-70 is fully compliant with BS EN 274-1:2002 (requirements) and BS EN 274-2:2002 (test methods). This is the relevant British and European standard for sanitary tapware and waste fittings, providing assurance of quality and performance. Can I order if the item shows as out of stock? Yes — this product is available to order even when stock shows as zero. Please allow additional lead time and contact us on 01603 381095 to confirm availability.

Read more less

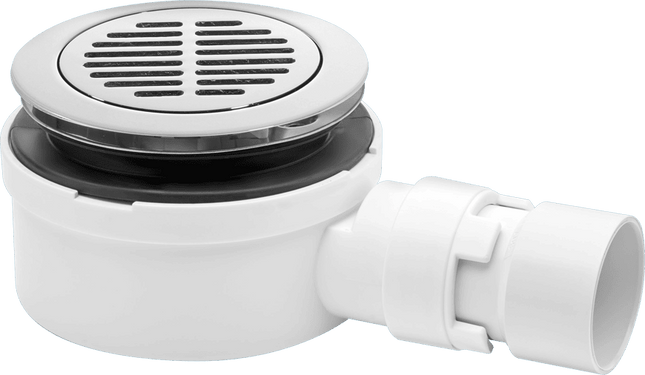

McAlpine Shallow Shower Trap — 90mm — 53mm Height — 25mm Seal — ST90CPB-S-53 The McAlpine ST90CPB-S-53 is an ultra-low profile shallow shower trap engineered for installations where sub-floor clearance is severely restricted. At just 53mm overall height, it is one of the slimmest 90mm shower traps available whilst maintaining a 34 litre/min flow rate and full BS EN 274 compliance. The polypropylene body is supplied with a removable 110mm chrome plated brass flange and all fittings for a complete installation. Ideal for timber floor constructions, retrofit projects, and first-floor bathrooms with minimal joist depth. ⚠️ Check clearance before ordering. This trap requires 53mm of clearance beneath the shower tray. Confirm your sub-floor depth before purchasing. Note: this trap has a 25mm water seal — if you require a deeper 50mm seal for better odour protection, see the McAlpine ST90CPB-S-70 (70mm height, 50mm seal). Key Features 53mm overall height — one of the slimmest 90mm shower traps available; suits severely restricted sub-floor depths 25mm water seal — meets minimum UK building regulation requirement for odour protection 34 litres/min flow rate — high drainage performance; prevents water pooling 90mm waste hole — fits standard shower trays with 90mm waste apertures 1½" BSP thread — standard UK connection size Removable 110mm flange — chrome plated brass; easy cleaning and debris removal 1½" solvent weld outlet — secure, leak-free connection to waste pipe Complete installation kit — 135° bend, BSP coupling nut, and 1½" universal connector included BS EN 274 compliant — tested to BS EN 274-1:2002 and BS EN 274-2:2002 Technical Specification Brand: McAlpine Model: ST90CPB-S-53 SKU: ST90CPB-S-53 EAN: 5013512012530 Type: Shallow shower trap Waste hole diameter: 90mm Overall height: 53mm Under-tray clearance required: 53mm Water seal depth: 25mm Flow rate: 34 litres/min (tested under 15mm constant head, BS EN 274-2:2002) Thread size: 1½" BSP Outlet: 1½" solvent weld Flange diameter: 110mm (removable) Flange finish: Chrome plated brass Body material: Polypropylene Weight: 0.3kg Standards: BS EN 274-1:2002 & BS EN 274-2:2002 What’s Included McAlpine ST90CPB-S-53 shallow shower trap body 110mm chrome plated brass removable flange 135° bend BSP coupling nut 1½" universal connector Installation instructions Suitable For Installations with severely restricted sub-floor clearance (as little as 53mm) Timber floor constructions and first-floor bathrooms with minimal joist depth Retrofit shower installations in existing bathrooms Wet room conversions with shallow floor build-ups Apartment and flat renovations with concrete floors Any installation requiring a 90mm waste hole trap with minimal height Also Available — McAlpine Shallow Traps McAlpine ST90CPB-S-70 — 90mm Shallow Trap, 70mm Height, 50mm Water Seal — deeper seal for better odour protection where 70mm clearance is available Coordinate Your Shower Installation Shower Trays — browse compatible low profile trays Shower Enclosures — complete your shower installation Shower Valves & Accessories — valves, heads, and arms Frequently Asked Questions What clearance does this trap require beneath the shower tray? The McAlpine ST90CPB-S-53 has an overall height of 53mm and requires 53mm of clearance beneath the shower tray. This makes it one of the slimmest 90mm shower traps available and suitable for installations where even the ST90CPB-S-70 (70mm) would not fit. Measure the available depth between the underside of your shower tray and the floor before ordering. What is the difference between the ST90CPB-S-53 and the ST90CPB-S-70? Both are McAlpine 90mm shallow shower traps with the same 34L/min flow rate and BS EN 274 compliance. The key differences are height and water seal depth. The ST90CPB-S-53 (this product) is 53mm high with a 25mm water seal — the slimmest option, suitable for the most restricted installations. The ST90CPB-S-70 is 70mm high with a superior 50mm water seal — better odour protection, recommended where 70mm clearance is available. If you have the space, the ST90CPB-S-70 is the preferred choice for its deeper seal. What size waste hole does this trap fit? This trap is designed for shower trays with a 90mm waste hole and a 1½" BSP thread. This is the standard waste hole size for the majority of UK shower trays. Check your tray specification before ordering if you are unsure. What is the water seal depth? The water seal depth is 25mm — the minimum required by UK building regulations. The water seal is the depth of water retained in the trap that prevents sewer gases from entering the bathroom. If you have sufficient clearance (70mm), the ST90CPB-S-70 with its 50mm seal provides significantly better odour protection and is less likely to evaporate in infrequently used showers. What type of outlet connection does this trap use? The outlet is 1½" solvent weld, connecting to standard 40mm (1½") solvent weld waste pipe. A 135° bend, BSP coupling nut, and 1½" universal connector are included to allow flexible pipe routing beneath the tray. Is this trap BS EN 274 compliant? Yes — the McAlpine ST90CPB-S-53 is fully compliant with BS EN 274-1:2002 (requirements) and BS EN 274-2:2002 (test methods), the relevant British and European standard for sanitary waste fittings. Can I order if the item shows as out of stock? Yes — this product is available to order even when stock shows as zero. Please allow additional lead time and contact us on 01603 381095 to confirm availability.

Read more less

Aqua Elegance Linear Shower Tray Waste Cover — 298mm — Matt Black, Brushed Brass & Brushed Bronze The Aqua Elegance Linear Shower Tray Waste Cover is a premium rectangular cover designed to upgrade the finish of your existing linear shower tray waste. At 298mm long and just 2mm high, it sits virtually flush with the tray surface for a seamless, minimalist look that defines contemporary wet room and walk-in shower design. Available in Matt Black, Brushed Brass, and Brushed Bronze — each coordinating with the wider Aqua Elegance finish range. Backed by a 1-year guarantee. ⚠️ Cover only — waste channel not included. This product is the 298mm linear cover only. The waste channel body is not included and is supplied with your shower tray. Ensure your existing linear waste accepts a 298 × 75mm cover before ordering. Available Finishes & Prices Matt Black — £50 (SKU: BGBP108535 · EAN: 5054913519291) Brushed Brass — £85 (SKU: BGBP108536 · EAN: 5054913519307) Brushed Bronze — £85 (SKU: BGBP108972 · EAN: 5054913527432) Key Features Linear rectangular design — 298 × 75mm; clean geometric lines for contemporary shower aesthetics Ultra-low 2mm profile — sits virtually flush with the tray surface for a seamless finish 3 premium finishes — Matt Black / Brushed Brass / Brushed Bronze Easy upgrade — simply replaces your existing linear waste cover Coordinates with Aqua Elegance brassware — match taps, valves, and accessories in the same finish 1-year guarantee Technical Specification Brand: Aqua Elegance Type: Linear shower tray waste cover (cover only) Cover style: Linear / rectangular Cover dimensions (H × W × L): 2 × 75 × 298mm Profile: Ultra-low — 2mm height Finish options: Matt Black / Brushed Brass / Brushed Bronze SKU (Matt Black): BGBP108535 · EAN: 5054913519291 SKU (Brushed Brass): BGBP108536 · EAN: 5054913519307 SKU (Brushed Bronze): BGBP108972 · EAN: 5054913527432 Guarantee: 1 year What’s Included 298mm linear waste cover in chosen finish Coordinate Your Shower Shower Trays — browse compatible low profile and linear drain trays Shower Enclosures — complete your shower installation Shower Valves & Accessories — match your finish across valves, heads, and arms Frequently Asked Questions Is this the complete waste, or just the cover? This is the cover only — it does not include the waste channel body or trap. It is designed as a finish upgrade or replacement for an existing linear shower tray waste. The waste channel is typically supplied with your shower tray. If you need a complete linear waste system, please call us on 01603 381095 and we can advise on compatible options. What are the dimensions of this cover? The cover is 298mm long, 75mm wide, and just 2mm high. The ultra-low 2mm profile means it sits virtually flush with the shower tray surface, creating a seamless, minimalist appearance. Ensure your existing linear waste channel accepts a 298 × 75mm cover before ordering. What is a linear shower waste? A linear shower waste (also called a channel drain or slot drain) uses a rectangular channel rather than a traditional circular waste. Water drains along the length of the channel, allowing the shower tray to slope in one direction only — creating a cleaner, more architectural look. Linear wastes are the defining feature of contemporary wet rooms and walk-in shower designs. The cover sits over the channel, providing the visible finish. What finishes are available? This cover is available in three finishes: Matt Black (£50), Brushed Brass (£85), and Brushed Bronze (£85). Select your preferred finish from the dropdown above. For a coordinated installation, choose the same finish for your shower valve, head, arm, and other brassware. Will this cover fit my existing linear waste? This cover is designed for linear waste channels that accept a 298 × 75mm cover. Please measure your existing waste channel opening before ordering to confirm compatibility. If you are unsure, call us on 01603 381095 and we can advise. Why is the Brushed Brass and Brushed Bronze more expensive than Matt Black? The Brushed Brass (£85) and Brushed Bronze (£85) finishes use a more complex finishing process than Matt Black (£50), which is reflected in the price difference. All three finishes carry the same 1-year guarantee and are manufactured to the same quality standard. What guarantee does this cover come with? The Aqua Elegance linear waste cover carries a 1-year manufacturer’s guarantee. Can I order if the item shows as out of stock? Yes — this product is available to order even when stock shows as zero. Please allow additional lead time and contact us on 01603 381095 to confirm availability.

Read more less

Aqua Elegance Low Profile Shower Tray Waste Cover — 110mm — Brushed Bronze — 45mm Trays The Aqua Elegance Low Profile Shower Tray Waste Cover in brushed bronze is a premium replacement cover designed to upgrade or coordinate the finish of your 45mm low profile shower tray waste. The 110mm diameter cover sits flush with the tray surface, replacing a standard chrome cover with a rich, warm brushed bronze finish. Ideal for coordinating with brushed bronze taps, shower valves, towel rails, and other luxury bathroom fixtures. Backed by a 1-year guarantee. ⚠️ Cover only — waste body not included. This product is the 110mm brushed bronze cover only. The waste body and trap are sold separately — see the Aqua Elegance Low Profile Shower Tray Waste & Cover (BGBP107151). Ensure your existing waste accepts a 110mm cover before ordering. Key Features Brushed bronze finish — rich, warm tones with distinctive character; suits luxury and heritage bathrooms 110mm diameter cover — flush-fitting; sits level with the tray surface Low profile design — engineered for 45mm shallow shower trays Easy upgrade — simply replaces your existing chrome or standard cover Fingerprint and water mark resistant — brushed finish hides everyday marks 1-year guarantee Technical Specification Brand: Aqua Elegance SKU: BGBP108975 EAN: 5054913527494 Type: Shower tray waste cover (cover only) Cover diameter: 110mm Cover finish: Brushed bronze Compatible tray depth: 45mm low profile trays Dimensions (H × W × D): 14 × 110 × 110mm Weight: 0.15kg Waste body code: DIEA0046 / BGBP107151 (sold separately) Guarantee: 1 year What’s Included 110mm brushed bronze waste cover only Need the Complete Waste? If you need the full waste assembly including the body and trap, see the Aqua Elegance Low Profile Shower Tray Waste & Cover — 90mm Chrome (BGBP107151). This cover is the brushed bronze upgrade for that waste body. Also Available — Colour Covers Aqua Elegance Low Profile Shower Tray Waste & Cover — 90mm Chrome (BGBP107151) — complete waste body Aqua Elegance Low Profile Shower Tray Waste Cover — 110mm Brushed Brass (BGBP108974) — brushed brass cover Aqua Elegance Low Profile Shower Tray Waste Cover — 110mm Matt Black (BGBP108973) — matt black cover Coordinate Your Shower Shower Trays — browse compatible 45mm low profile trays Shower Enclosures — complete your shower installation Shower Valves & Accessories — valves, heads, and arms in brushed bronze Frequently Asked Questions Is this the complete waste, or just the cover? This is the cover only — it does not include the waste body or trap. It is designed as a finish upgrade or replacement cover for an existing low profile tray waste. If you need the complete waste assembly, see the Aqua Elegance Low Profile Shower Tray Waste & Cover (BGBP107151). What diameter is this cover? This cover is 110mm in diameter and 14mm high (overall dimensions 14 × 110 × 110mm). Please note this is a different size to the 90mm chrome cover supplied with the standard waste body — ensure your waste accepts a 110mm cover before ordering. What waste body does this cover fit? This cover is designed to fit the Aqua Elegance low profile tray waste body (code DIEA0046 / SKU BGBP107151). Please confirm compatibility with your existing waste before ordering. If you are unsure, call us on 01603 381095 and we can advise. What tray depth is this cover compatible with? This cover is designed for 45mm low profile shower trays. It is not suitable for standard height trays. Why choose brushed bronze? Brushed bronze is a distinctive finish that brings warmth, depth, and character to bathroom design. Unlike standard brass or gold finishes, bronze offers richer, darker tones with subtle variations that create a unique, artisanal appearance. The brushed finish resists fingerprints and water spots while developing a beautiful natural patina over time. It works beautifully in both traditional and contemporary settings — from heritage restorations to modern boutique designs. What other finish covers are available? The Aqua Elegance low profile waste cover range also includes Brushed Brass (BGBP108974) and Matt Black (BGBP108973) options, both 110mm diameter and priced separately. What guarantee does this cover come with? The Aqua Elegance brushed bronze waste cover carries a 1-year manufacturer’s guarantee. Can I order if the item shows as out of stock? Yes — this product is available to order even when stock shows as zero. Please allow additional lead time and contact us on 01603 381095 to confirm availability.

Read more less

Aqua Elegance Low Profile Shower Tray Waste Cover — 110mm — Matt Black — 45mm Trays The Aqua Elegance Low Profile Shower Tray Waste Cover in matt black is a premium replacement cover designed to upgrade or coordinate the finish of your 45mm low profile shower tray waste. The 110mm diameter cover sits flush with the tray surface, replacing a standard chrome cover with a bold, contemporary matt black finish. Ideal for coordinating with matt black taps, shower valves, towel rails, and other bathroom fixtures. Backed by a 1-year guarantee. ⚠️ Cover only — waste body not included. This product is the 110mm matt black cover only. The waste body and trap are sold separately — see the Aqua Elegance Low Profile Shower Tray Waste & Cover (BGBP107151). Ensure your existing waste accepts a 110mm cover before ordering. Key Features Matt black finish — bold, contemporary tone; coordinates with matt black brassware 110mm diameter cover — flush-fitting; sits level with the tray surface Low profile design — engineered for 45mm shallow shower trays Easy upgrade — simply replaces your existing chrome or standard cover Fingerprint and water mark resistant — matt finish hides everyday marks 1-year guarantee Technical Specification Brand: Aqua Elegance SKU: BGBP108973 EAN: 5054913527470 Type: Shower tray waste cover (cover only) Cover diameter: 110mm Cover finish: Matt black Compatible tray depth: 45mm low profile trays Dimensions (H × W × D): 14 × 110 × 110mm Weight: 0.15kg Waste body code: DIEA0046 / BGBP107151 (sold separately) Guarantee: 1 year What’s Included 110mm matt black waste cover only Need the Complete Waste? If you need the full waste assembly including the body and trap, see the Aqua Elegance Low Profile Shower Tray Waste & Cover — 90mm Chrome (BGBP107151). This cover is the matt black upgrade for that waste body. Also Available Aqua Elegance Low Profile Shower Tray Waste & Cover — 90mm Chrome (BGBP107151) — complete waste body Aqua Elegance Low Profile Shower Tray Waste Cover — 110mm Brushed Brass (BGBP108974) — brushed brass cover Coordinate Your Shower Shower Trays — browse compatible 45mm low profile trays Shower Enclosures — complete your shower installation Shower Valves & Accessories — valves, heads, and arms in matt black Frequently Asked Questions Is this the complete waste, or just the cover? This is the cover only — it does not include the waste body or trap. It is designed as a finish upgrade or replacement cover for an existing low profile tray waste. If you need the complete waste assembly, see the Aqua Elegance Low Profile Shower Tray Waste & Cover (BGBP107151). What diameter is this cover? This cover is 110mm in diameter and 14mm high (overall dimensions 14 × 110 × 110mm). Please note this is a different size to the 90mm chrome cover supplied with the standard waste body — ensure your waste accepts a 110mm cover before ordering. What waste body does this cover fit? This cover is designed to fit the Aqua Elegance low profile tray waste body (code DIEA0046 / SKU BGBP107151). Please confirm compatibility with your existing waste before ordering. If you are unsure, call us on 01603 381095 and we can advise. What tray depth is this cover compatible with? This cover is designed for 45mm low profile shower trays. It is not suitable for standard height trays. Why choose matt black? Matt black is one of the most popular contemporary bathroom finishes, offering bold, dramatic impact and strong visual contrast. The matt finish resists fingerprints and water marks better than gloss or polished finishes, making it practical as well as stylish. This cover allows you to create a fully coordinated bathroom scheme without replacing the entire waste assembly. Is a brushed brass version available? Yes — the 110mm Brushed Brass waste cover (BGBP108974) is also available if you prefer a warmer finish. What guarantee does this cover come with? The Aqua Elegance matt black waste cover carries a 1-year manufacturer’s guarantee. Can I order if the item shows as out of stock? Yes — this product is available to order even when stock shows as zero. Please allow additional lead time and contact us on 01603 381095 to confirm availability.

Read more less

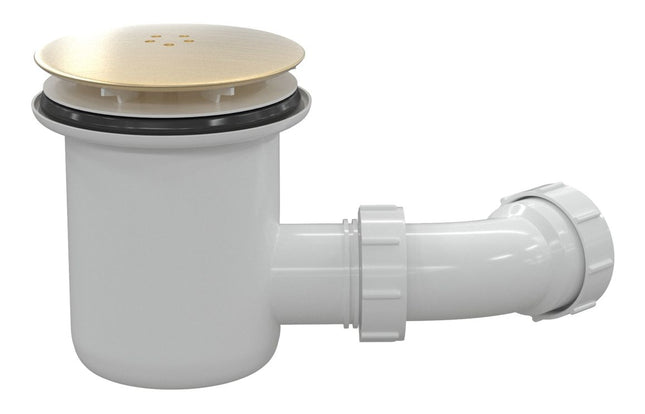

Aqua Elegance Low Profile Shower Tray Waste Cover — 110mm — Brushed Brass — 45mm Trays The Aqua Elegance Low Profile Shower Tray Waste Cover in brushed brass is a premium replacement cover designed to upgrade or coordinate the finish of your 45mm low profile shower tray waste. The 110mm diameter cover sits flush with the tray surface, replacing a standard chrome cover with a warm, contemporary brushed brass finish. Ideal for coordinating with brushed brass taps, shower valves, towel rails, and other bathroom fixtures. Backed by a 1-year guarantee. ⚠️ Cover only — waste body not included. This product is the 110mm brushed brass cover only. The waste body and trap are sold separately — see the Aqua Elegance Low Profile Shower Tray Waste & Cover (BGBP107151). Ensure your existing waste accepts a 110mm cover before ordering. Key Features Brushed brass finish — warm, contemporary tone; coordinates with brushed brass brassware 110mm diameter cover — flush-fitting; sits level with the tray surface Low profile design — engineered for 45mm shallow shower trays Easy upgrade — simply replaces your existing chrome or standard cover Fingerprint and water mark resistant — brushed finish hides everyday marks 1-year guarantee Technical Specification Brand: Aqua Elegance SKU: BGBP108974 EAN: 5054913527487 Type: Shower tray waste cover (cover only) Cover diameter: 110mm Cover finish: Brushed brass Compatible tray depth: 45mm low profile trays Dimensions (H × W × D): 14 × 110 × 110mm Weight: 0.15kg Waste body code: DIEA0046 / BGBP107151 (sold separately) Guarantee: 1 year What’s Included 110mm brushed brass waste cover only Need the Complete Waste? If you need the full waste assembly including the body and trap, see the Aqua Elegance Low Profile Shower Tray Waste & Cover — 90mm Chrome (BGBP107151). This cover is the brushed brass upgrade for that waste body. Coordinate Your Shower Aqua Elegance Low Profile Shower Tray Waste & Cover — 90mm Chrome — the matching waste body Shower Trays — browse compatible 45mm low profile trays Shower Enclosures — complete your shower installation Shower Valves & Accessories — valves, heads, and arms in brushed brass Frequently Asked Questions Is this the complete waste, or just the cover? This is the cover only — it does not include the waste body or trap. It is designed as a finish upgrade or replacement cover for an existing low profile tray waste. If you need the complete waste assembly, see the Aqua Elegance Low Profile Shower Tray Waste & Cover (BGBP107151). What diameter is this cover? This cover is 110mm in diameter and 14mm high (overall dimensions 14 × 110 × 110mm). Please note this is a different size to the 90mm chrome cover supplied with the standard waste body — ensure your waste accepts a 110mm cover before ordering. What waste body does this cover fit? This cover is designed to fit the Aqua Elegance low profile tray waste body (code DIEA0046 / SKU BGBP107151). Please confirm compatibility with your existing waste before ordering. If you are unsure, call us on 01603 381095 and we can advise. What tray depth is this cover compatible with? This cover is designed for 45mm low profile shower trays. It is not suitable for standard height trays. Why choose brushed brass? Brushed brass is one of the most popular contemporary bathroom finishes, offering warm, luxurious tones that coordinate beautifully with brushed brass taps, thermostatic shower valves, towel rails, and accessories. The brushed finish resists fingerprints and water marks better than polished finishes, making it practical as well as stylish. This cover allows you to create a fully coordinated bathroom scheme without replacing the entire waste assembly. What guarantee does this cover come with? The Aqua Elegance brushed brass waste cover carries a 1-year manufacturer’s guarantee. Can I order if the item shows as out of stock? Yes — this product is available to order even when stock shows as zero. Please allow additional lead time and contact us on 01603 381095 to confirm availability.

Read more less

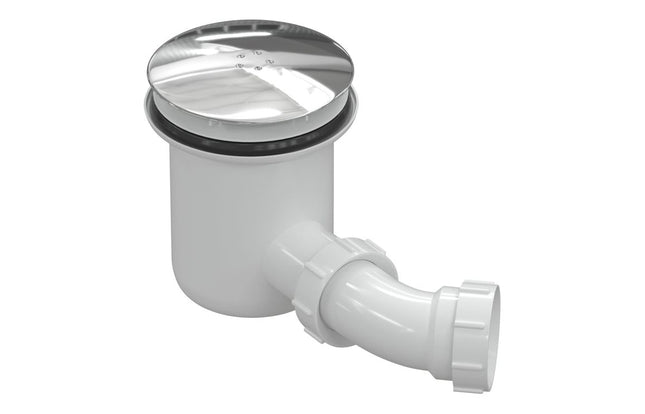

Aqua Elegance Low Profile Shower Tray Waste & Cover — 90mm — Chrome — 45mm Trays The Aqua Elegance Low Profile Shower Tray Waste & Cover is specifically engineered for modern 45mm shallow shower trays. The 90mm chrome cover sits flush with the tray surface for a seamless, minimalist finish. The low profile trap assembly fits within the shallow void beneath 45mm trays where a standard waste would not. Colour finish caps are available separately to coordinate with matt black, brushed brass, or other contemporary finishes. Backed by a 1-year guarantee. ⚠️ Check compatibility before ordering. This waste is designed for 45mm low profile shower trays only. It requires adequate clearance beneath the tray for the trap assembly. Not suitable for standard height trays. Professional installation recommended. Key Features Low profile design — engineered specifically for 45mm shallow shower trays 90mm chrome cover — flush-fitting; sits level with the tray surface for a seamless look Colour caps available separately — coordinate with matt black, brushed brass, or other finishes Complete waste system — waste body, chrome cover, and all fixing components included UK plumbing compliant — standard UK installation 1-year guarantee Technical Specification Brand: Aqua Elegance SKU: BGBP107151 EAN: 5054913499807 Type: Low profile shower tray waste & cover Cover diameter: 90mm Cover finish: Chrome Compatible tray depth: 45mm low profile trays Installation type: Low profile shallow trap Dimensions (H × W × D): 120 × 90 × 90mm Weight: 0.4kg Standards: UK plumbing compliant Guarantee: 1 year What’s Included Low profile waste body 90mm chrome cover Fixing components Installation instructions Coordinate Your Shower Shower Trays — browse compatible 45mm low profile trays Shower Enclosures — complete your shower installation Shower Valves & Accessories — valves, heads, and arms Frequently Asked Questions What tray depth is this waste compatible with? This waste is designed specifically for 45mm low profile shower trays. The shallow trap assembly is engineered to fit within the limited void beneath a 45mm tray where a standard waste would not fit. It is not suitable for standard height shower trays. Check your tray depth before ordering. What is the cover diameter? The chrome cover is 90mm in diameter. It sits flush with the tray surface, creating a seamless, minimalist appearance. The overall waste dimensions are H120 × W90 × D90mm. Can I get this waste in a different finish? The waste body and cover are supplied in chrome as standard. Colour finish caps are available separately to coordinate with other bathroom finishes such as matt black or brushed brass. Contact us on 01603 381095 to check availability of colour caps. What is a low profile waste? A low profile waste uses a shallow trap assembly that fits within the limited void beneath a 45mm shower tray. Standard shower wastes have a deeper trap that requires more clearance beneath the tray — typically 70mm or more. A low profile waste is essential for 45mm trays where there is insufficient space for a standard trap. Without the correct waste, the tray cannot drain properly. Is professional installation required? Professional installation is recommended to ensure proper sealing and drainage performance. Incorrect installation can result in leaks beneath the tray, which can cause significant damage. Ensure adequate clearance beneath the tray for the trap assembly before fitting. What guarantee does this waste come with? The Aqua Elegance low profile shower tray waste carries a 1-year manufacturer’s guarantee. Can I order if the item shows as out of stock? Yes — this product is available to order even when stock shows as zero. Please allow additional lead time and contact us on 01603 381095 to confirm availability.

Read more less
