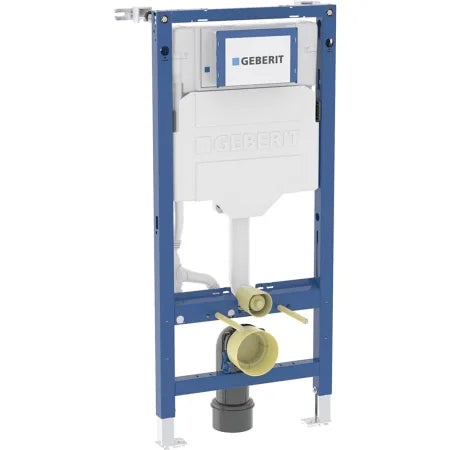

Geberit Sigma 112cm Frame & Cistern for Wall-Hung WC
This next-generation Geberit Sigma 112cm frame and cistern for wall-hung WCs combines 60 years of engineering expertise with installer feedback to deliver enhanced performance, faster installation, and superior sustainability. Replaces part number 111.383.00.3.
Key Performance Upgrades
-
30% Quieter Operation - Significantly reduced noise levels for improved comfort
-
Optimised Hydraulics - Upgraded Type 383 fill valve and Type 212 flush valve for ultra-quiet, water-saving performance (2-4L small/5.8L large flush)
-
Extended Compatibility - Works with WC pans up to 700mm deep for futureproofing
-
10x Better Flush Performance - TurboFlush-ready when combined with Geberit TurboFlush pan
-
Enhanced Integration - Compatible with Geberit Sigma40 flush plates and DuoFresh modules
Installation Improvements
-
40% Faster Installation - Streamlined design reduces fitting time significantly
-
Pull-Out Side Fastening Plate - Faster vertical stud mounting on metal or wood studs
-
Hexalobular Screws - Tool flexibility with better grip for power tools
-
Alternative Wall Anchor Positions - Accommodate tricky wall conditions like pipes or cables
-
Adjustable Pipe Bracket - Stress-free connection bend installation
-
Laser Markings - Accurate centre positioning of threaded rods and connection bend
-
Adjustable Leg Support - Extends to 25cm for modern high floor constructions
Technical Specification
-
Product Type: Concealed cistern frame
-
Brand: Geberit
-
Collection: Sigma
-
Height: 112cm
-
Application: Wall-hung WC installation
-
Flush Volume: 2-4L (small) / 5.8L (large)
-
WC Pan Compatibility: Up to 700mm projection
-
Weight Capacity: 400kg (when combined with Geberit wall-hung toilets)
-
Water Connection: R 1/2" with integrated angle stop valve
-
Connection Bend: ø90mm PE-HD
-
Standard Compliance: EN 14055, Class II
-
WRAS Approved: Yes
-
SKU: 111.383.00.6
-
Guarantee: 50 years spare parts
-
Condition: New
-
Availability: In stock
What's Included
- Water supply connection R 1/2" with integrated angle stop valve and hand wheel
- Protection box for service opening
- 2 wall anchors
- Connection set for WC, ø90mm
- PE-HD connection bend ø90mm
- PE-HD adaptor socket ø90/110mm
- Fastening and protection materials
Compatibility
- Geberit Sigma flush plates (130+ finishes and styles)
- Geberit pneumatic flush buttons
- Geberit AquaClean shower toilets
- Geberit DuoFresh modules
Product Benefits
The Geberit Sigma 112cm frame represents the pinnacle of concealed cistern technology, installed 70 million times over 60 years. The redesigned hydraulics deliver whisper-quiet operation while saving water with dual-flush technology. Installation time is cut by 40% thanks to innovative features like pull-out fastening plates, alternative anchor positions, and laser alignment markings. The adjustable design accommodates challenging installations including high floors and obstructed walls. With 50-year spare parts support and 400kg weight capacity, this frame provides long-term reliability for residential and commercial projects.
Ideal For: New bathroom installations, bathroom renovations, commercial washrooms, residential projects, wall-hung WC installations, and installers seeking fast, reliable concealed cistern solutions.
Dispatched direct from our supplier to UK mainland only.
