Bottle Traps | Chrome, Black & Brass Basin Bottle Traps

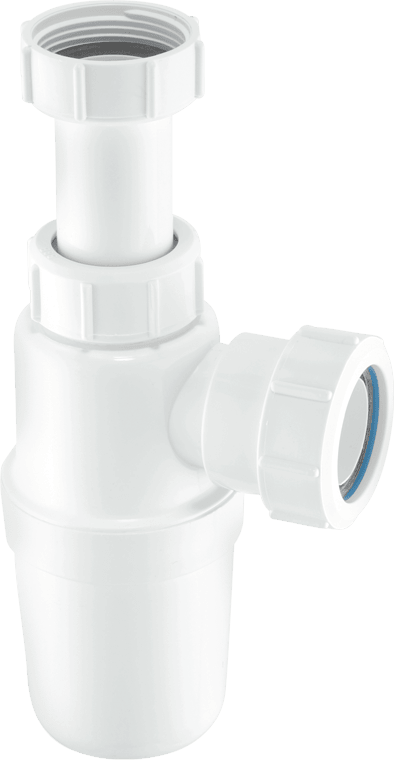

The McAlpine AA10 is a self-ventilating resealing bottle trap — designed for basin and sink installations where secondary ventilation isn't practical. When syphonic conditions occur, the automatic hydraulic action draws air through the bypass columns to break the syphon; once conditions normalise, remaining water falls back to reseal the trap. No mechanical parts, no secondary vent pipe required. Key Features 75mm water seal — superior odour protection; deeper than the standard 50mm seal Self-ventilating / resealing design — eliminates the need for secondary ventilation; no moving parts to fail Adjustable inlet — fits all standard domestic basin and sink wastes 1¼" (32mm) multifit compression outlet — compatible with plastic, copper, and lead waste pipes Polypropylene construction — durable, corrosion-resistant, and chemical-resistant BS EN 274-1:2002 compliant — meets British and European performance standards Technical Specification Model AA10 Type Resealing bottle trap Water Seal 75mm Outlet Size 1¼" (32mm) Outlet Type Multifit compression Inlet Adjustable Material Polypropylene Pipe Compatibility Plastic, copper, lead Standard BS EN 274-1:2002 Weight 0.15kg Brand McAlpine You May Also Need Basin Wastes — Click-clack, pop-up, and slotted basin wastes Basins — Browse our full basin range All Wastes & Drainage — Bath wastes, shower wastes, and traps Frequently Asked Questions What is a resealing bottle trap? A resealing (or self-ventilating) trap is designed to prevent the water seal from being lost under syphonic conditions — where fast-flowing water in the waste pipe creates a vacuum that can suck the water out of a standard trap. The AA10 uses a hydraulic bypass mechanism to break the syphon and allow the trap to reseal automatically, without needing a separate anti-syphon valve or vent pipe. Do I need secondary ventilation with this trap? No — the self-ventilating design of the AA10 eliminates the need for secondary ventilation in most domestic installations. This makes it particularly useful in situations where running a vent pipe is impractical or impossible. Can I order if the item shows as out of stock? Yes — this product can be ordered even when showing as out of stock, and we'll fulfil your order as soon as stock is available. If you need a specific delivery timeframe, please contact us at customerservice@bubblegumbathrooms.co.uk before ordering.

Read more less

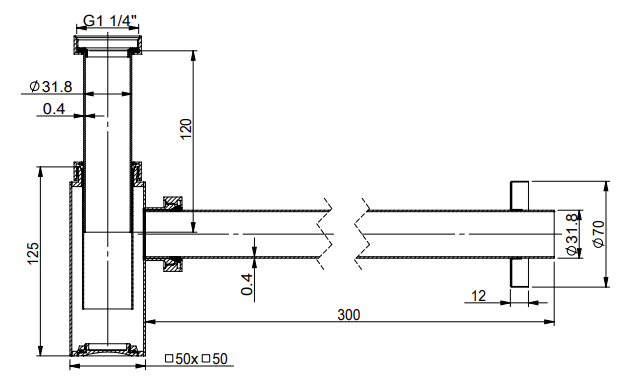

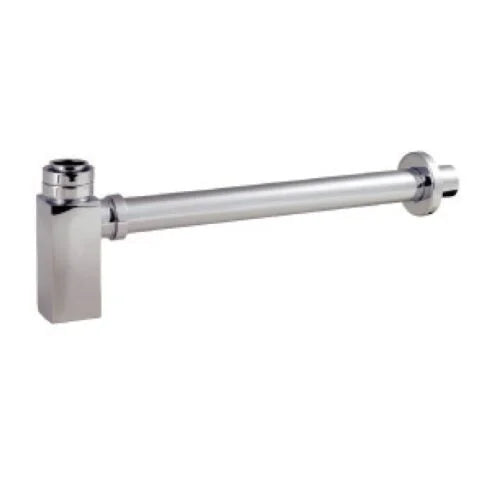

A sleek, contemporary alternative to the traditional round bottle trap — the Kartell WAS025 square adjustable basin bottle trap combines a distinctive geometric profile with solid brass construction and a high-gloss chrome finish. Its compact 125mm width and adjustable height make it ideal for wall-hung basins, narrow vanity units, and any installation where the trap will be on show. Key Features Square geometric profile — clean architectural lines that complement contemporary and minimalist bathroom schemes Adjustable height — variable adjustment to align with different basin waste outlets and wall waste pipe positions Solid brass construction — premium material for durability and longevity High-gloss chrome finish — corrosion-resistant; easy to clean; coordinates with chrome taps and accessories Compact 125mm width — fits beneath narrow vanity units and wall-hung basins 1-year guarantee — Kartell manufacturer warranty Technical Specification Model WAS025 Type Adjustable basin bottle trap Profile Square Width 125mm Depth 315mm Material Solid brass Finish Chrome plated (gloss) Weight 0.82kg Adjustability Variable height Guarantee 1 year Brand Kartell You May Also Need Basin Wastes — Click-clack, pop-up, and slotted basin wastes to pair with this trap Basins — Browse our full basin range All Wastes & Drainage — Bath wastes, shower wastes, and traps Frequently Asked Questions Why choose a square bottle trap over a round one? Square bottle traps offer a more contemporary, architectural look that suits modern minimalist bathrooms. They're particularly effective in visible installations beneath wall-hung basins or glass vanity tops, where the trap becomes part of the overall design rather than something to hide. Functionally they perform identically to round bottle traps. Is this trap suitable for all basins? This trap connects to standard UK basin waste fittings and the adjustable height allows it to accommodate different waste outlet and pipe positions. Always check the inlet and outlet sizes match your basin waste and waste pipework before ordering. Can I order if the item shows as out of stock? Yes — this product can be ordered even when showing as out of stock, and we'll fulfil your order as soon as stock is available. If you need a specific delivery timeframe, please contact us at customerservice@bubblegumbathrooms.co.uk before ordering.

Read more less

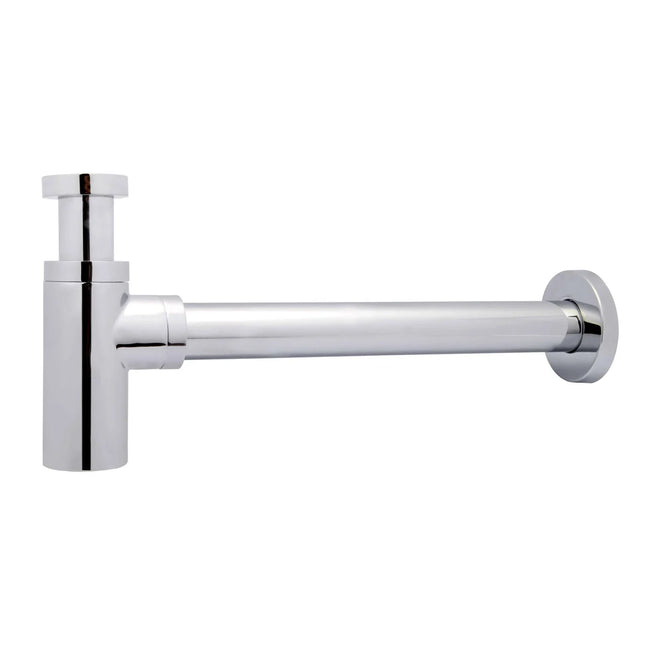

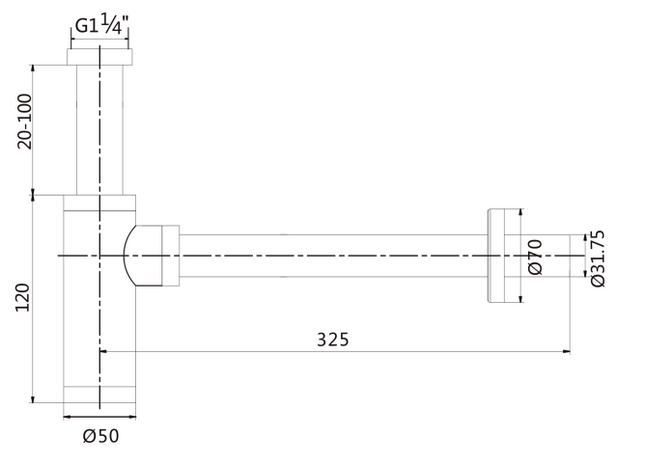

A professional-grade adjustable basin bottle trap in polished chrome-plated brass — the Kartell WAS030 combines reliable drainage performance with an attractive finish that looks equally good concealed or on show. The adjustable height accommodates different basin waste outlet and wall pipe positions, making installation straightforward even where dimensions don't align perfectly. Key Features Adjustable height — variable adjustment to align with different basin waste outlets and wall waste pipe positions Solid brass construction — premium material for durability and longevity; 0.86kg weight reflects quality build Polished chrome finish — lustrous, corrosion-resistant; easy to clean; coordinates with chrome taps and accessories Compact dimensions — 125mm wide; fits beneath standard vanity units, pedestal basins, and wall-hung basins Standard UK fittings — straightforward installation 1-year guarantee — Kartell manufacturer warranty Technical Specification Model WAS030 Type Adjustable basin bottle trap Width 125mm Depth 315mm Height 62mm Material Solid brass Finish Chrome plated (polished) Weight 0.86kg Adjustability Variable height Guarantee 1 year Brand Kartell You May Also Need Basin Wastes — Click-clack, pop-up, and slotted basin wastes to pair with this trap Basins — Browse our full basin range All Wastes & Drainage — Bath wastes, shower wastes, and traps Frequently Asked Questions Why choose an adjustable bottle trap? Adjustable bottle traps are essential where basin waste outlets and wall waste pipes don't align perfectly — which is common in renovation projects or where basins are being replaced. The adjustable height lets you fine-tune the trap position during installation, ensuring a proper seal without needing to alter the pipework. Is this trap suitable for all basins? This trap uses standard UK basin waste fittings and the adjustable height accommodates a range of outlet and pipe positions. Always confirm the inlet and outlet sizes match your basin waste and waste pipework before ordering. Can I order if the item shows as out of stock? Yes — this product can be ordered even when showing as out of stock, and we'll fulfil your order as soon as stock is available. If you need a specific delivery timeframe, please contact us at customerservice@bubblegumbathrooms.co.uk before ordering.

Read more less

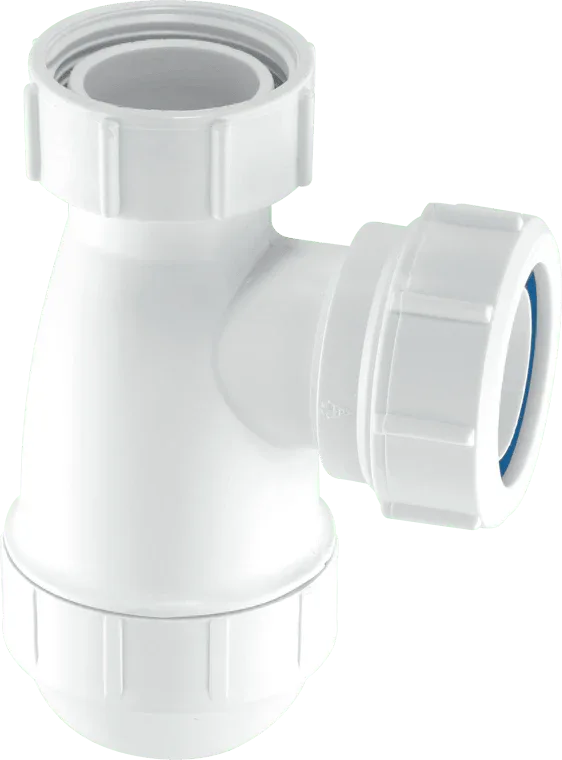

The McAlpine E10 is a shallow basin bottle trap designed for installations where space beneath the basin is limited. Its compact profile makes it ideal for wall-hung basins, vanity units with restricted clearance, and cloakroom sinks — while still providing a reliable 50mm water seal to prevent sewer gases and odours from entering the bathroom. Key Features Shallow compact design — fits where standard bottle traps cannot; ideal for wall-hung basins and fitted vanity units 50mm water seal — effective odour barrier; maintains seal even during periods of non-use 1¼" (32mm) multifit compression outlet — compatible with plastic, copper, and lead waste pipes White polypropylene construction — corrosion and chemical resistant; smooth internal surfaces for optimal flow BS EN 274-1:2002 compliant — meets British and European performance standards Precision-moulded threads — prevent cross-threading during installation Technical Specification Model E10 Type Shallow basin bottle trap Water Seal 50mm Outlet Size 1¼" (32mm) Outlet Type Multifit compression Material Polypropylene Colour White Pipe Compatibility Plastic, copper, lead Standard BS EN 274-1:2002 Weight 0.15kg Brand McAlpine You May Also Need Basin Wastes — Click-clack, pop-up, and slotted basin wastes Basins — Browse our full basin range All Wastes & Drainage — Bath wastes, shower wastes, and traps Frequently Asked Questions What is the difference between a shallow and standard bottle trap? A standard bottle trap has a deeper body to accommodate the water seal. A shallow bottle trap achieves the same 50mm water seal in a more compact housing — making it suitable for installations where there is limited clearance beneath the basin, such as wall-hung basins or fitted vanity units with a high base. Can I order if the item shows as out of stock? Yes — this product can be ordered even when showing as out of stock, and we'll fulfil your order as soon as stock is available. If you need a specific delivery timeframe, please contact us at customerservice@bubblegumbathrooms.co.uk before ordering.

Read more less

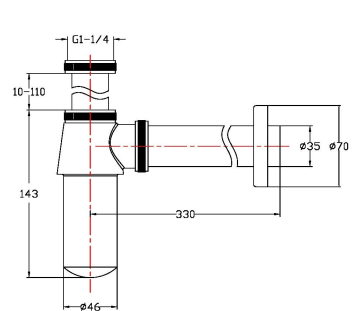

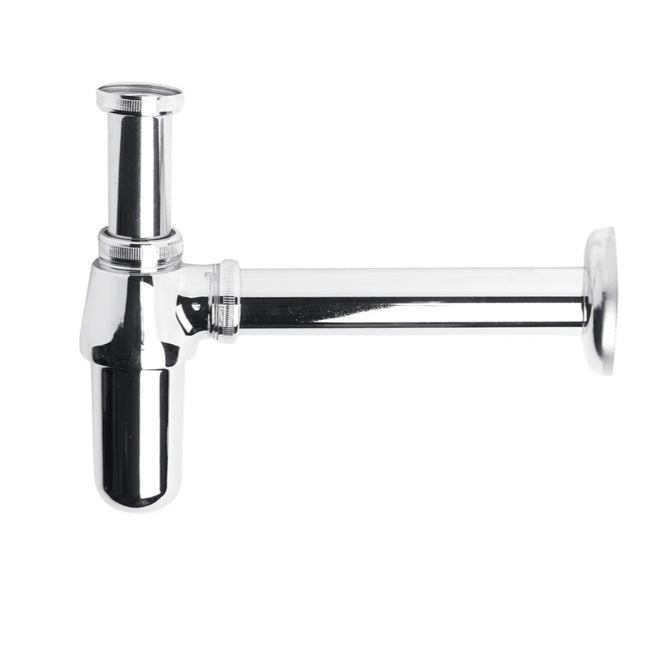

The Kartell Adjustable Basin Bottle Trap combines premium brass construction with intelligent adjustable design, delivering professional-grade performance for round-bottom basins. Finished in lustrous chrome plating that resists tarnishing and corrosion, this vertical bottle trap offers the perfect blend of reliability, functionality, and timeless style for modern bathrooms. Key Features & Benefits Premium Brass Construction – Superior durability and corrosion resistance compared to plastic alternatives Adjustable Design – Vertical orientation with height adjustment for flexible installation Chrome Plated Finish – Lustrous, tarnish-resistant coating maintains appearance for years Round Bottom Type – Specifically designed for round-bottom basin waste outlets Easy Access Cleaning – Removable bottle section for simple maintenance and blockage clearing Leak-Proof Seals – Quality washers and compression fittings ensure watertight connections Lightweight Installation – At just 0.91kg, easy to handle and fit 1-Year Guarantee – Manufacturer's warranty for peace of mind What's Included Kartell adjustable bottle trap body (chrome plated brass) Inlet connection (basin waste connection) Outlet connection (wall/floor waste pipe connection) Compression washers and seals Installation instructions 1-year manufacturer's guarantee Technical Specifications Manufacturer: Kartell Material: Brass Finish: Chrome plated (CP) Type: Bottle trap, vertical orientation Basin Type: Round bottom basins Inlet Size: 32mm (1¼") Outlet Size: 32mm (1¼") Adjustability: Vertical height adjustment Water Seal Depth: 75mm (standard UK requirement) Weight: 0.91kg Warranty: 1 year Barcode: 5055681400392 SKU: WAS021 Why Choose Brass Over Plastic? Brass bottle traps offer significant advantages over plastic alternatives. The solid brass construction provides superior strength, preventing cracking under stress or temperature changes. Chrome-plated brass resists corrosion from cleaning chemicals and maintains its lustrous appearance indefinitely, while plastic traps can discolour, become brittle, and degrade over time. For installations where the trap is visible, brass delivers a premium aesthetic that complements quality basin and tap finishes. Adjustable Design Benefits The vertical adjustability allows you to accommodate varying basin heights, waste pipe positions, and installation constraints. This flexibility is particularly valuable when replacing existing traps, working with non-standard plumbing configurations, or installing basins at custom heights. The adjustment mechanism maintains a secure, leak-proof seal throughout its range. Installation & Compatibility Designed for round-bottom basins with standard 32mm (1¼") waste outlets. Compatible with slotted and unslotted basin wastes. Suitable for wall-mounted and pedestal basins where vertical space allows. The trap connects to standard 32mm waste pipes using compression fittings. Professional installation recommended, though suitable for competent DIY with basic plumbing knowledge. Maintenance & Cleaning The bottle section unscrews easily for access to the water seal chamber, allowing you to clear blockages, remove debris, or retrieve accidentally dropped items (rings, earrings, etc.) without dismantling the entire trap. Regular cleaning maintains optimal flow and prevents odours. The chrome finish wipes clean with a soft cloth—avoid abrasive cleaners that may damage the plating. Applications Perfect for residential bathrooms, en-suites, cloakrooms, commercial washrooms, hotels, offices, and care facilities. Ideal for new installations, bathroom renovations, or replacing worn plastic traps with premium brass alternatives. Particularly suited to visible installations where aesthetics matter. About Kartell Kartell is a trusted UK manufacturer of quality bathroom products, known for reliable performance, thoughtful engineering, and excellent value. Their brass waste products are engineered to professional standards and backed by comprehensive warranties. Perfect for: Plumbers, bathroom installers, property developers, landlords, and homeowners seeking durable, adjustable, premium-quality basin bottle traps with professional-grade performance and timeless chrome aesthetics. 💷 SAVE £15: Was £37, Now Only £22 (41% Off)

Read more less
