Description

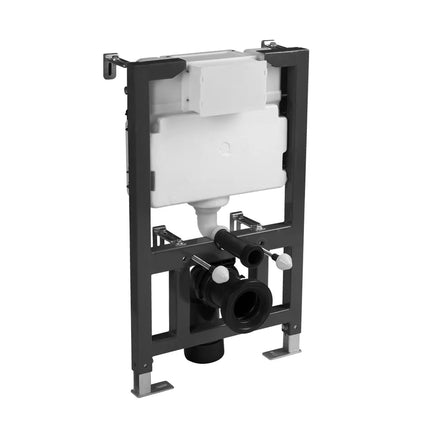

The standard-setter for wall-hung WC installations. The Roper Rhodes 0.82m Wall Hung WC Frame with Concealed Cistern is the go-to choice for most domestic bathroom projects — combining a water-efficient 6/3L dual flush cistern, adjustable depth from 167–215mm, and both top and front access in a robust, WRAS-approved package. Backed by a 10-year frame guarantee, it’s built to perform quietly behind your walls for decades.
Key Features
- 0.82m (812mm) frame height — the standard choice for most domestic wall-hung WC installations
- Adjustable depth 167–215mm — accommodates varying wall thicknesses
- Height-adjustable legs for uneven floor compensation
- 6/3L dual flush concealed cistern — water-efficient and WRAS approved
- Top and front access — maximum servicing flexibility without breaking tiles
- All fixing hardware included
- Compatible with Roper Rhodes furniture adapter kit (TR9007) for furniture unit installations
- 10-year frame guarantee / 5-year cistern guarantee
Technical Specification
-
Frame height: 812mm (0.82m)
-
Frame width: 500mm
-
Depth (adjustable): 167–215mm
-
Flush volume: 6L / 3L dual flush
-
Access: Top and front access
-
Application: In-wall, stud wall
-
Certification: WRAS approved
-
Weight: 15kg
-
Frame guarantee: 10 years
-
Cistern guarantee: 5 years
-
SKU: TR9005
What’s Included
- 1 × Roper Rhodes 0.82m Wall Hung WC Frame
- 1 × Concealed 6/3L dual flush cistern
- All fixing hardware and fittings
- Installation instructions
What’s Not Included
- Flush plate (sold separately — see compatible options below)
- WC pan (sold separately)
- Soil pipe and waste fittings
- Furniture adapter kit (sold separately as TR9007 if required)
Installation
Designed for in-wall installation within a stud wall or duct. The adjustable depth (167–215mm) and height-adjustable legs make this frame suitable for a wide range of wall constructions and floor conditions. Both top and front access options allow future cistern servicing without disturbing tiles. Professional installation by a qualified plumber is recommended.
Care & Maintenance
The concealed cistern requires no routine maintenance. If servicing is required, access is via the flush plate aperture (front) or top panel. Use only Roper Rhodes-approved replacement parts to maintain the guarantee.
Also Available
Need a different frame height? View the full Roper Rhodes wall hung WC frame range:
Optional Accessories
Compatible Flush Plates
Complete your installation with a Roper Rhodes flush plate:
Frequently Asked Questions
What is the difference between the 0.82m, 1.0m, and 1.17m frames?
The 0.82m is the standard height for most domestic installations and the most commonly specified frame in the range. The 1.0m suits under-window and boxed-in applications. The 1.17m is designed for taller pan positions or raised platform installations. All three share the same 6/3L dual flush cistern and WRAS approval.
Can I use a furniture unit with this frame?
Yes — the 0.82m frame is compatible with the Roper Rhodes Furniture Adapter Kit (TR9007), which enables a WC furniture unit to be built around the concealed frame for a fully clad installation.
Is a flush plate included?
No — the flush plate is sold separately. We stock a full range of compatible Roper Rhodes flush plates — see the links above.
Can the cistern be serviced without removing tiles?
Yes — the 0.82m frame offers both top and front access, allowing the cistern internals to be serviced without disturbing surrounding tiles or wall finishes.
What depth of wall does this frame require?
The frame depth is adjustable between 167mm and 215mm, making it suitable for a range of stud wall thicknesses. Always confirm your wall construction depth before ordering.
Is this WRAS certified?
Yes — the Roper Rhodes 0.82m frame and cistern are WRAS (Water Regulations Advisory Scheme) approved, confirming compliance with UK water regulations for domestic installations.
What guarantees are included?
The frame carries a 10-year guarantee and the concealed cistern a 5-year guarantee, both from Roper Rhodes.
