Description

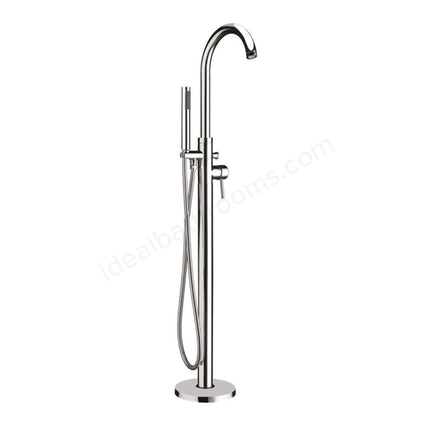

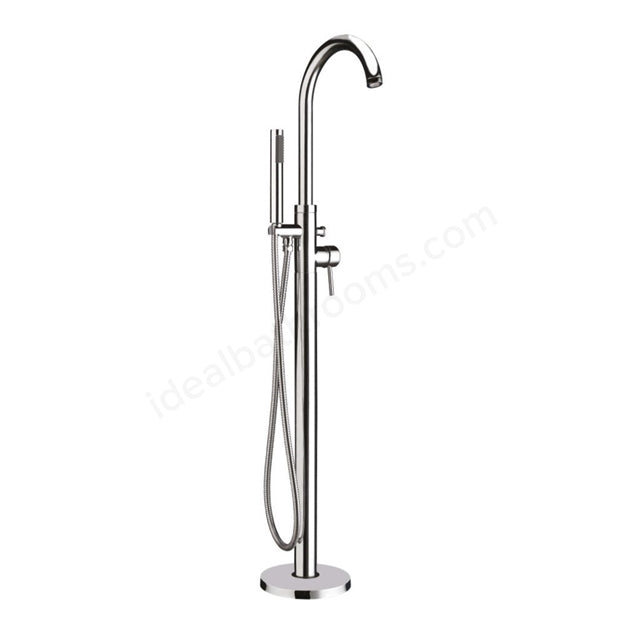

Make a dramatic centrepiece of your freestanding bath with the Swan Elfield Freestanding Bath Shower Mixer in chrome. A single lever controls both bath filling and shower handset via the integrated diverter, while the swivel spout provides flexible positioning over the bath. No tap holes required — floor-standing installation. Solid brass construction with a 35mm cartridge, detailed flow rate data, and a 10-year guarantee.
⚠️ Freestanding — professional installation required. Hot and cold supplies connect through the floor. No tap holes in the bath are required. Minimum pressure: 0.5 bar.
Key Features
-
Freestanding Design: Floor-standing installation — no tap holes required
-
Shower Handset Included: Integrated diverter switches between bath fill and shower
-
Swivel Spout: Flexible positioning over the bath
-
Single Lever Control: 35mm cartridge for smooth, precise temperature and flow
-
Solid Brass Construction: Chrome plated for lasting durability
-
Wide Pressure Range: 0.5–5 bar working; 10 bar static
-
10-Year Guarantee: Comprehensive manufacturer warranty
Technical Specification
- Type: Freestanding Bath Shower Mixer
- Brand: Swan — Elfield Range
- Finish: Chrome
- Material: Brass
- Cartridge: 35mm
- Handle: Single Lever
- Spout: Swivel
- Mounting: Freestanding — 0 Tap Holes Required
- Minimum Pressure: 0.5 bar
- Maximum Working Pressure: 5 bar
- Maximum Static Pressure: 10 bar
- Flow at 0.2 bar: 3.6 L/min
- Flow at 0.5 bar: 6.3 L/min
- Flow at 1.0 bar: 9.0 L/min
- Flow at 2.0 bar: 12.4 L/min
- Flow at 3.0 bar: 15.8 L/min
- Shower Handset: Included
- Waste: Not Included
- Guarantee: 10 Years
- SKU: SWBR083
Complete the Elfield Collection
Coordinate with the full Swan Elfield range:
-
Elfield One Spout Bath Filler — chrome, 2 tap holes, WRAS approved
-
Elfield Bath Pillar Taps — chrome, 2 tap holes
-
Elfield Bath Shower Mixer — chrome, 2 tap holes, slide rail, fixed & handheld shower head
-
Elfield Mono Basin Mixer — chrome, pop-up waste included
-
Elfield Mini Basin Mixer — chrome, compact, pop-up waste included
-
Elfield Tap Pair for Basin — chrome, 2 tap hole basin
Frequently Asked Questions
What is a freestanding bath tap?
A freestanding bath tap (or floor-standing bath tap) connects to the hot and cold water supply through the floor rather than through the bath deck or wall. It stands independently alongside the bath, with no tap holes required in the bath itself. This creates a dramatic, sculptural look particularly suited to freestanding roll-top and slipper baths.
Is a shower handset included?
Yes — a shower handset is included. The integrated diverter allows you to switch between filling the bath via the spout and using the shower handset.
Does the spout swivel?
Yes — the spout is a swivel spout, allowing you to position it over the bath for filling and swing it away when not in use.
What is the minimum water pressure required?
The Swan Elfield freestanding bath shower mixer requires a minimum of 0.5 bar working pressure, with a maximum of 5 bar working and 10 bar static. Flow rates range from 3.6 L/min at 0.2 bar up to 15.8 L/min at 3 bar.
Is a waste included?
No — a bath waste is not included. Please add a compatible bath waste separately.
What guarantee does this come with?
A comprehensive 10-year guarantee from Swan.
