Basin, Bath & Sink Traps | P-Traps, Bottle Traps & Waste Traps

The McAlpine HC2650UK is the shallowest combined top access bath trap and waste assembly on the market — with an overall height of just 112mm including the trap and waste. Featuring a 50mm water seal, a swivelling outlet for easy installation, and a spring-loaded mushroom plug for top-access cleaning, it’s the go-to solution for low-clearance bath installations. Available in four finishes to match your bathroom hardware. Key Features Ultra-Low Profile: 112mm overall height — the shallowest top access combined bath trap & waste available Top Access Cleaning: Spring-loaded mushroom plug lifts out for easy hair and debris removal without removing the trap Swivel Outlet: 1½” outlet rotates 360° for flexible positioning during installation 50mm Water Seal: Provides effective odour barrier in compliance with building regulations Universal Multifit Compression Outlet: Suits all plastic, copper, and lead waste pipes Adjustable Overflow Tube: Flexible length adjusts from 330mm to 580mm to suit your bath Four Finishes: Chrome, Matt Black, Brushed Brass, or White — to match your bathroom taps and hardware Conforms to BS EN 274-1:2002: Meets the relevant UK/EU standard for sanitary appliance fittings Technical Specification SKU / MPN: HC2650UK (Chrome) | HC2650UK-WH (White) | HC2650UK-MB (Matt Black) | HC2650UK-BB (Brushed Brass) Brand: McAlpine Water Seal: 50mm Outlet Size: 1½” Universal Compression (Multifit) Outlet Type: Swivel — suits all plastic, copper, and lead pipe Overall Height (incl. trap & waste): 112mm Overflow Tube Length: Adjustable 330mm – 580mm Plug Type: Spring-loaded mushroom plug (top access) Finishes: Chrome Plated Brass | Matt Black | Brushed Brass | White Standard: BS EN 274-1:2002 Country of Origin: United Kingdom Multifit Connections Explained McAlpine Multifit connections suit all plastic waste pipes to BS EN 1451-1:2000 and BS EN 1329-1:2000, copper pipe (metric or imperial), and lead pipe. The moulded internal sleeve centres and supports the pipe, while the Multifit and friction washers create a secure seal. Tighten hand-tight for the best mechanical joint. If a plastic pipe is undersize or out of round, warming the end gently will help it seat over the sleeve. Delivery Information This is a small, postable item covered by a one-off small item delivery charge. You can combine it with other small items in a single order and pay just one delivery charge. Browse all items covered by the small delivery charge. Frequently Asked Questions Why is the HC2650UK described as the shallowest on the market?The combined overall height of the trap and waste assembly is just 112mm — making it ideal for baths where floor-to-underside clearance is severely restricted, such as freestanding baths on low feet or built-in baths with deep frames. What pipe sizes does the outlet fit?The 1½” Multifit compression outlet suits all standard plastic, copper (metric and imperial), and lead waste pipes without adaptors. My bath has a thick reinforced base — will this fit?If your bath has a thicker than standard baseboard or reinforced frame, you may need the HC2650UK Extension Kit, which lowers the outlet position to accommodate the extra depth. Can the overflow tube length be adjusted?Yes — the flexible overflow tube adjusts from 330mm to 580mm, making it compatible with a wide range of bath overflow heights. Does it require a plumber to install?The HC2650UK is designed for straightforward installation, but if you’re not confident with plumbing work we recommend using a qualified plumber, particularly in a bathroom environment. Can I order if the item shows as out of stock?Yes — contact us at customerservice@bubblegumbathrooms.co.uk or call 01603 381095 and we’ll confirm availability and lead time. Also in the McAlpine HC2650UK Range McAlpine HC2650UK Extension Kit — lowers outlet for reinforced or thick-base baths McAlpine HC2650UK Spares Kit — replacement plug, dome & dip-tube Other McAlpine Bath Traps McAlpine Q10 19mm Shallow Seal Bath Trap — Chrome Multifit Outlet

Read more less

The McAlpine HC2650UK Extension Kit is designed to lower the waste outlet position on the HC2650UK top access bath trap. It is ideal for baths with a thicker reinforced baseboard or frame where the standard trap outlet position would be too high to connect to the waste pipework. Key Features Lowers Waste Outlet: Extends the trap outlet downward to accommodate baths with thicker or reinforced baseboards Compatible with HC2650UK: Designed specifically for use with the McAlpine HC2650UK Top Access Bath Waste & Trap Easy Installation: Simple extension fitting — no specialist tools required McAlpine Quality: Manufactured to McAlpine's exacting standards for long-term reliability Technical Specification SKU / MPN: HC2650-EXT-KIT Brand: McAlpine Compatible With: McAlpine HC2650UK Top Access Bath Waste & Trap Purpose: Lowers trap waste outlet position for reinforced or framed bath bases Warranty: McAlpine manufacturer warranty Frequently Asked Questions What is this extension kit for?It lowers the waste outlet position on the HC2650UK trap so it can connect to waste pipework on baths with a thicker reinforced baseboard or integral frame where the standard outlet position sits too high. Which trap does this kit work with?This extension kit is designed exclusively for use with the McAlpine HC2650UK Top Access Bath Waste & Trap. Do I need a plumber to fit this?The kit is straightforward to fit, but if you are unsure about connecting waste pipework we recommend using a qualified plumber. Can I order if the item shows as out of stock?Yes — contact us at customerservice@bubblegumbathrooms.co.uk or call 01603 381095 and we’ll confirm availability and lead time. Also in the McAlpine HC2650UK Range McAlpine HC2650UK Top Access Bath Waste & Trap — the main trap unit Spares Kit for McAlpine Bath Trap — replacement seals and components

Read more less

A complete waste pack for roll top and freestanding baths, supplied with a chrome exposed retainer waste, shallow seal trap, and chrome pipe shrouds. Everything is finish-matched in chrome, so there’s no need to source components separately. The shallow seal trap is specifically suited to installations where clearance beneath the bath is limited. What’s Included Chrome exposed retainer bath waste Shallow seal trap Chrome pipe cover shrouds (for baths with tap holes — for freestanding baths see Freestanding Bath Standpipes) Installation fixings 1-year manufacturer guarantee Key Features Complete matched set — waste, trap, and shrouds all in coordinated chrome Exposed retainer waste — traditional period styling suited to roll top and Victorian-style baths Shallow seal trap — compact design for baths with limited underside clearance Solid brass construction — durable and corrosion-resistant Chrome pipe shrouds — conceal feed pipes to bath-mounted taps Technical Specification Waste Dimensions W77 × H55 × D85mm Material Solid Brass Finish Chrome Plated Waste Type Exposed Retainer Waste Trap Type Shallow Seal Guarantee 1 Year Country of Origin China HS Code 8481.80 SKU EA368 Related Products Exposed Bath Plug & Chain Waste with Pipe Shrouds — Chrome, Black & Brushed Brass Exposed Bath Plug & Chain Waste for Roll Top Baths — Chrome, Brass & Black Freestanding Bath Standpipes — Chrome Brass 697mm Floor Mounted TOP-FIX Bath Waste & Overflow 40mm Pop-Up — Chrome, Black & Brass Frequently Asked Questions What is an exposed retainer waste? An exposed retainer waste sits visibly beneath the bath rather than being concealed within the bath structure. The retainer mechanism holds the plug in place and releases it when lifted. This style is traditional and well-suited to roll top and freestanding baths where the underside of the bath is on show. Why do I need a shallow seal trap for a roll top bath? Roll top and freestanding baths often have limited clearance between the base of the bath and the floor. A shallow seal trap has a reduced seal depth, allowing it to fit in spaces where a standard 75mm seal trap would not. It still maintains an effective water seal to prevent drain odours. Do I need the standpipes instead of the pipe shrouds? If your bath has tap holes and uses bath-mounted taps, the included pipe shrouds will conceal the feed pipes. If your bath uses floor-mounted freestanding taps, you will need Freestanding Bath Standpipes instead — these are sold separately. Can I order if the item shows as out of stock? Yes — most items can still be ordered when showing as out of stock. Contact us at customerservice@bubblegumbathrooms.co.uk or call 01603 381095 if you need a specific delivery date.

Read more less

The Exposed Bath Plug & Chain Waste with Pipe Shrouds is a traditional-style bath waste designed for freestanding and roll top baths where the pipework beneath the bath is visible. The included decorative pipe shrouds conceal the feed pipes to bath-mounted taps, giving a neat, intentional finish rather than exposed plumbing. Available in Chrome, Black, and Brushed Brass to coordinate with your taps and bath filler. Key Features Exposed plug & chain design — classic, period-appropriate aesthetic for traditional bathrooms Pipe shrouds included — conceal feed pipes to bath-mounted taps for a clean, finished look Three finish options — Chrome, Black, and Brushed Brass to match your bathroom hardware Solid brass construction — durable, corrosion-resistant, and built to last Complete waste system — includes waste, trap, pipe, pipe cover shrouds, plug & chain Ideal for roll top & freestanding baths — where exposed pipework is part of the design Technical Specification Dimensions H95 × D68 × W68mm Material Solid Brass Finish Options Chrome / Black / Brushed Brass Waste Type Plug and Chain (Exposed) Includes Waste, trap, pipe, pipe cover shrouds, plug & chain Suitable For Roll top baths, freestanding baths, traditional bathrooms Country of Origin China HS Code 8481.80 SKU (Chrome) BGBP4153 SKU (Black) BGBP111538 SKU (Brushed Brass) BGBP111539 Related Products Exposed Bath Plug & Chain Waste for Roll Top Baths — Chrome, Brass & Black Roll Top Bath Waste Pack — Chrome Exposed Waste & Shallow Seal Trap TOP-FIX Bath Waste & Overflow 40mm Pop-Up — Chrome, Black & Brass Frequently Asked Questions What is an exposed bath waste? An exposed bath waste is a waste fitting where the trap and pipework beneath the bath are visible rather than concealed within the bath structure. This style is typical of freestanding and roll top baths, where the underside of the bath is open. The decorative finish of the waste and pipe shrouds becomes part of the bathroom’s aesthetic. What do the pipe shrouds do? The pipe shrouds are decorative covers that fit over the feed pipes running from the floor or wall up to bath-mounted taps. They conceal the raw pipework and give a coordinated, finished appearance beneath the bath. Which finish should I choose? Choose a finish that matches your bath taps and other bathroom hardware. Chrome is the most versatile and traditional option; Black suits contemporary or industrial-style bathrooms; Brushed Brass works well in warm-toned or heritage-style schemes. Is this suitable for my roll top bath? Yes — this waste is specifically designed for roll top and freestanding baths with exposed pipework. Check that your bath has a standard waste outlet and that the pipe shroud dimensions are compatible with your existing pipework before ordering. Can I order if the item shows as out of stock? Yes — most items can still be ordered when showing as out of stock. Contact us at customerservice@bubblegumbathrooms.co.uk or call 01603 381095 if you need a specific delivery date.

Read more less

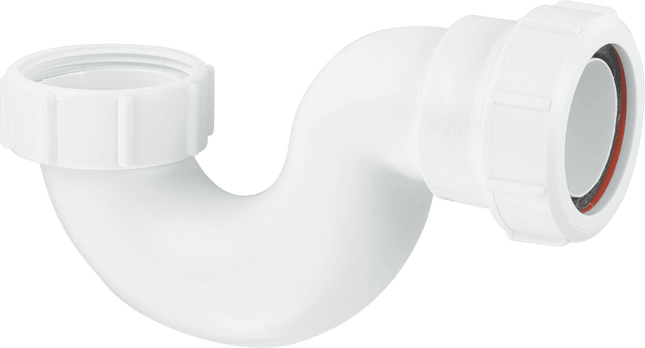

The McAlpine Q10 is a 19mm shallow seal bath trap with a chrome-plated multifit compression outlet. Designed for installations where a standard 75mm seal depth isn't achievable — such as low-clearance baths — it maintains an effective water seal to prevent drain odours while fitting neatly into tight spaces. Key Features 19mm shallow water seal — ideal where full-depth traps won't fit beneath the bath Universal multifit compression outlet — compatible with 32mm, 36mm, and 40mm plastic, copper, and lead waste pipes Chrome-plated finish — neat appearance where the trap may be partially visible Polypropylene body — lightweight, corrosion-resistant, and long-lasting Hand-tight installation — no tools required; leak-free seals designed for fibreglass and acrylic baths Compatible with McAlpine bath wastes — integrates seamlessly with McAlpine waste systems Technical Specification Model: Q10 Water seal depth: 19mm (shallow seal) Body material: Polypropylene with chrome finish Outlet type: Multifit compression Outlet compatibility: 32mm, 36mm, 40mm waste pipes (plastic, copper, lead) Suitable for: Fibreglass, acrylic, and steel baths Country of Origin: United Kingdom Barcode: 5036484002587 SKU: Q10 More McAlpine Traps McAlpine E10 Shallow Basin Bottle Trap | 1¼" Outlet | 50mm Seal McAlpine AA10 Resealing Bottle Trap | 75mm Seal | Self-Ventilating McAlpine ST90CPB-S-70 Shallow Shower Trap | 90mm | 70mm Height McAlpine ST90CPB-S-53 Shallow Shower Trap | 90mm | 53mm Height McAlpine ST90CB10-70 Shallow Shower Trap | 90mm | 70mm Height Frequently Asked Questions What is a shallow seal trap? A shallow seal trap retains a smaller water seal depth (19mm in this case) compared to a standard trap (75mm). It is used where there is limited space beneath the bath for a full-depth trap, such as with low-profile or freestanding baths with restricted underside clearance. Will this fit my bath waste? The Q10 uses a multifit compression outlet compatible with 32mm, 36mm, and 40mm waste pipes. It is designed to work with McAlpine bath wastes and most standard bath waste fittings. Check your existing waste outlet size before ordering. Is this suitable for acrylic baths? Yes — the Q10's seals are specifically designed to create a leak-free connection with fibreglass and acrylic bath surfaces, as well as steel baths. Can I order if the item shows as out of stock? Yes — most items can still be ordered when showing as out of stock. Lead times may vary. Contact us at customerservice@bubblegumbathrooms.co.uk or call 01603 381095 before ordering if you need a specific delivery date.

Read more less
