Pan Connectors | WC Pan Connectors for Close-Coupled & BTW Toilets

The McAlpine F33R is an 850mm straight flexible WC pan connector — the long-reach solution for installations where the soil pipe entry is well away from the pan, or where significant offset or awkward routing is needed. At more than double the length of the F26R, it gives plumbers and installers the flexibility to make a clean, secure connection in even the most challenging bathroom layouts. Includes a wall pipe clip for added support. Manufactured in durable polypropylene and compliant with DIN 1389:2015-12. Key Features 850mm flexible body — ideal for long-reach and heavily offset installations 97–107mm inlet suits all standard WC pan spigots 4″/110mm outlet — fits PVC-U and cast iron soil pipe No sediment build-up — independently tested Wall pipe clip included for additional support Durable polypropylene construction Complies with DIN 1389:2015-12 Technical Specification SKU: WC-F33R Barcode: 5036484500458 Length: 850mm Inlet: 97–107mm (adjustable) Outlet: 4″/110mm Type: Straight flexible Material: Polypropylene Standard: DIN 1389:2015-12 Weight: 0.35kg Brand: McAlpine What’s Included McAlpine F33R flexible WC pan connector (850mm) Wall pipe clip More McAlpine WC Pan Connectors Need a shorter flexible connector or a rigid option? Browse the full McAlpine WC connector range: McAlpine F26R Straight Flexible WC Pan Connector 410mm – 97-107mm x 110mm McAlpine WC-CON2 Straight Adjustable Rigid WC Pan Connector – 97-107mm x 110mm McAlpine WC-CON8 90° Bent Rigid WC Pan Connector – 97-107mm x 110mm McAlpine WC-CON8E 90° Extended Inlet Rigid WC Pan Connector – 97-107mm x 110mm McAlpine WC-CONQ 90° Space Saving Rigid WC Pan Connector – 97-107mm x 110mm Frequently Asked Questions When should I use the F33R instead of the F26R? Choose the F33R when the soil pipe entry point is significantly further from the WC pan than a standard connector can bridge, or where the routing requires a longer flexible run. At 850mm, it’s more than double the length of the F26R (410mm) and is the right choice for long-reach or heavily offset installations. What pan spigot sizes does this fit? The adjustable inlet fits all standard WC pan spigots in the 97–107mm range, covering the vast majority of UK toilet pans. What soil pipe does the outlet connect to? The 110mm outlet fits 4″/110mm PVC-U and cast iron soil pipe — the standard soil pipe size used in UK domestic installations. Does the flexible body cause sediment build-up? No — independent testing confirms there is no sediment build-up in the flexible body of the F33R, ensuring clear flow performance over the long term. Can I order if the item shows as out of stock? Yes — we can order this product for you even if it shows as out of stock. Lead times may vary; please contact us at customerservice@bubblegumbathrooms.co.uk for availability.

Read more less

The McAlpine WC-CONQ is a 90° space saving rigid WC pan connector designed for installations where a standard straight connector won’t reach — particularly useful where the pan is boxed in or set back from the soil pipe. The adjustable 97–107mm inlet suits all standard pan spigots, while the lock-ring inlet seal ensures a secure, leak-free connection. Manufactured in durable polypropylene and compliant with BS 5627:1984 and DIN 1389:2015-12. Key Features 90° space saving bend — ideal for boxed-in or recessed pan installations Adjustable length for flexible positioning 97–107mm inlet suits all standard WC pan spigots 4″/110mm outlet — compatible with PVC-U and cast iron soil pipe (internal diameter) Available with finned outlet (for 110mm PVC-U/cast iron) or plain end outlet (for 110mm soil/underground pipe fittings) Lock-ring inlet seal for a tight, secure connection Durable polypropylene construction Complies with BS 5627:1984 and DIN 1389:2015-12 Technical Specification SKU: WC-CONQ Barcode: 5036484005939 Inlet: 97–107mm (adjustable) Outlet: 4″/110mm Angle: 90° Material: Polypropylene Standards: BS 5627:1984 / DIN 1389:2015-12 Weight: 0.3kg Brand: McAlpine More McAlpine WC Pan Connectors Need a different angle or length? Browse the full McAlpine WC connector range: McAlpine WC-CON2 Straight Adjustable WC Pan Connector – 97-107mm x 110mm McAlpine WC-CON8 90° Bent Pan Connector – 97-107mm x 110mm McAlpine WC-CON8E 90° Extended Inlet Rigid WC Connector – 97-107mm McAlpine F26R Straight Flexible WC Pan Connector 410mm – 97-107mm x 110mm McAlpine F33R Straight Flexible WC Pan Connector 850mm – 97-107mm x 110mm Frequently Asked Questions What is the WC-CONQ designed for? The WC-CONQ is specifically designed for space saving installations where the WC pan is boxed in or set back, and a straight connector cannot reach the soil pipe. The 90° bend allows the connector to route around obstructions while maintaining a secure connection. What pan spigot sizes does this fit? The adjustable inlet fits all standard WC pan spigots in the 97–107mm range, covering the vast majority of UK toilet pans. What soil pipe does the outlet connect to? The 110mm outlet is available with a finned end (for 4″/110mm PVC-U and cast iron soil pipe internal diameters) or a plain end (for 110mm soil or underground pipe fittings). Please check which outlet type you require before ordering. Is this a rigid or flexible connector? This is a rigid connector. If you need a flexible connector for awkward or offset installations, see our McAlpine F26R or McAlpine F33R flexible connectors. Can I order if the item shows as out of stock? Yes — we can order this product for you even if it shows as out of stock. Lead times may vary; please contact us at customerservice@bubblegumbathrooms.co.uk for availability.

Read more less

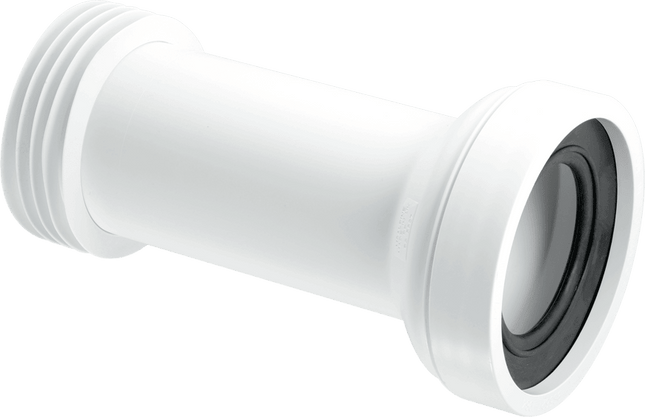

The McAlpine WC-CON2 is a straight adjustable rigid WC pan connector — the go-to choice for standard in-line installations where the pan spigot and soil pipe are directly aligned. The adjustable 97–107mm inlet suits all standard WC pan spigots, and the 110mm outlet is compatible with both PVC-U and cast iron soil pipe. Also available with a 3½″/90mm finned outlet for older soil pipe systems. Manufactured in durable polypropylene and compliant with BS 5627:1984 and DIN 1389:2015-12. Key Features Straight rigid connector — ideal for direct in-line pan-to-soil-pipe installations Adjustable length for flexible positioning 97–107mm inlet suits all standard WC pan spigots 110mm outlet — available with finned end (4″/110mm PVC-U/cast iron) or plain end (110mm soil/underground pipe fittings) Also available with 3½″/90mm finned outlet for older soil pipe systems Durable polypropylene construction Complies with BS 5627:1984 and DIN 1389:2015-12 Technical Specification SKU: WC-CON2 Barcode: 5034684005977 Inlet: 97–107mm (adjustable) Outlet: 110mm (finned or plain end) Type: Straight rigid Material: Polypropylene Standards: BS 5627:1984 / DIN 1389:2015-12 Weight: 0.15kg Brand: McAlpine More McAlpine WC Pan Connectors Need a bend, extra reach, or a flexible connector? Browse the full McAlpine WC connector range: McAlpine WC-CON8 90° Bent Rigid WC Pan Connector – 97-107mm x 110mm McAlpine WC-CON8E 90° Extended Inlet Rigid WC Pan Connector – 97-107mm x 110mm McAlpine WC-CONQ 90° Space Saving Rigid WC Pan Connector – 97-107mm x 110mm McAlpine F26R Straight Flexible WC Pan Connector 410mm – 97-107mm x 110mm McAlpine F33R Straight Flexible WC Pan Connector 850mm – 97-107mm x 110mm Frequently Asked Questions When should I use a straight connector rather than a 90° bent connector? Use a straight connector like the WC-CON2 when the WC pan spigot and the soil pipe entry point are directly in line — i.e. the pan faces straight into the wall. If the soil pipe is offset to the side, you’ll need a 90° connector such as the WC-CON8 or WC-CON8E. What pan spigot sizes does this fit? The adjustable inlet fits all standard WC pan spigots in the 97–107mm range, covering the vast majority of UK toilet pans. What soil pipe does the outlet connect to? The standard 110mm outlet is available with a finned end (for 4″/110mm PVC-U and cast iron soil pipe internal diameters) or a plain end (for 110mm soil or underground pipe fittings). A 3½″/90mm finned outlet version is also available for older soil pipe systems. Is this a rigid or flexible connector? This is a rigid connector. If you need a flexible connector for awkward or offset installations, see our McAlpine F26R or McAlpine F33R flexible connectors. Can I order if the item shows as out of stock? Yes — we can order this product for you even if it shows as out of stock. Lead times may vary; please contact us at customerservice@bubblegumbathrooms.co.uk for availability.

Read more less

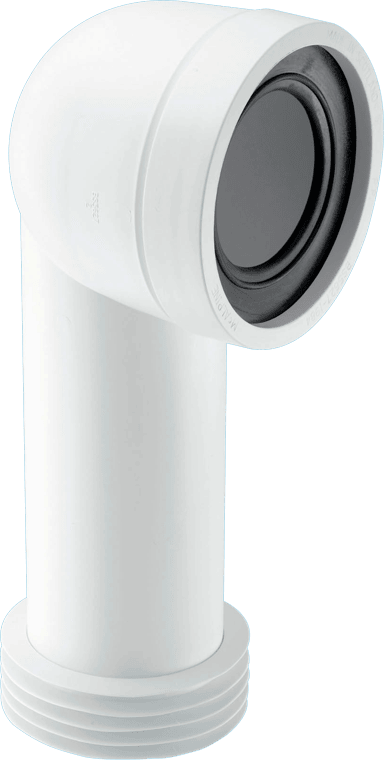

The McAlpine WC-CON8 is a 90° bent rigid WC pan connector with an adjustable length inlet and double seal on the pan connection — delivering a reliable, leak-free fit with all standard WC pan spigots. The 110mm outlet connects to both PVC-U and cast iron soil pipe, making it suitable for the vast majority of UK domestic installations. Manufactured in durable polypropylene and compliant with BS 5627:1984 and DIN 1389:2015-12. Key Features 90° bend — ideal for pans set at right angles to the soil pipe Adjustable length inlet for flexible positioning 97–107mm inlet suits all standard WC pan spigots Double seal on pan connection for a secure, leak-free fit 4″/110mm outlet — available with finned end (PVC-U/cast iron internal diameter) or plain end (110mm soil/underground pipe fittings) Durable polypropylene construction Complies with BS 5627:1984 and DIN 1389:2015-12 Technical Specification SKU: WC-CON8 Barcode: 503484006097 Inlet: 97–107mm (adjustable) Outlet: 4″/110mm Angle: 90° Material: Polypropylene Standards: BS 5627:1984 / DIN 1389:2015-12 Weight: 0.2kg Brand: McAlpine More McAlpine WC Pan Connectors Need a different angle, length, or flexibility? Browse the full McAlpine WC connector range: McAlpine WC-CON2 Straight Adjustable WC Pan Connector – 97-107mm x 110mm McAlpine WC-CON8E 90° Extended Inlet Rigid WC Pan Connector – 97-107mm x 110mm McAlpine WC-CONQ 90° Space Saving Rigid WC Pan Connector – 97-107mm x 110mm McAlpine F26R Straight Flexible WC Pan Connector 410mm – 97-107mm x 110mm McAlpine F33R Straight Flexible WC Pan Connector 850mm – 97-107mm x 110mm Frequently Asked Questions What is the difference between the WC-CON8 and the WC-CON8E? The WC-CON8E has an extended inlet for additional reach between the pan spigot and the soil pipe. If you need extra length, choose the WC-CON8E. For a standard 90° connection, the WC-CON8 is the right choice. What does the double seal do? The double seal on the pan connection creates a more secure, leak-free joint between the connector and the WC pan spigot — reducing the risk of seepage even with minor misalignment during installation. What pan spigot sizes does this fit? The adjustable inlet fits all standard WC pan spigots in the 97–107mm range, covering the vast majority of UK toilet pans. What soil pipe does the outlet connect to? The 110mm outlet is available with a finned end (for 4″/110mm PVC-U and cast iron soil pipe internal diameters) or a plain end (for 110mm soil or underground pipe fittings). Please confirm which outlet type you require before ordering. Can I order if the item shows as out of stock? Yes — we can order this product for you even if it shows as out of stock. Lead times may vary; please contact us at customerservice@bubblegumbathrooms.co.uk for availability.

Read more less

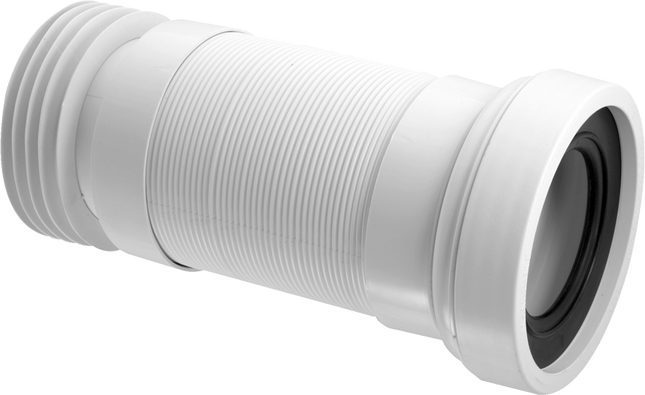

The McAlpine F26R is a 410mm straight flexible WC pan connector — the ideal solution where rigid connectors won’t reach or where the pan is slightly offset from the soil pipe. The adjustable 97–107mm inlet suits all standard WC pan spigots, the jubilee clip ensures a solid, leak-free connection, and independent testing confirms no sediment build-up in the flexible body. Manufactured in durable polypropylene and compliant with DIN 1389:2015-12. Key Features 410mm flexible body — accommodates offset and awkward pan positions 97–107mm inlet suits all standard WC pan spigots 4″/110mm outlet — fits PVC-U and cast iron soil pipe Jubilee clip connection for a secure, leak-free fit No sediment build-up — independently tested Durable polypropylene construction Complies with DIN 1389:2015-12 Technical Specification SKU: WC-F26R Length: 410mm Inlet: 97–107mm (adjustable) Outlet: 4″/110mm Type: Straight flexible Connection: Jubilee clip Material: Polypropylene Standard: DIN 1389:2015-12 Weight: 0.2kg Brand: McAlpine More McAlpine WC Pan Connectors Need a longer flexible connector or a rigid option? Browse the full McAlpine WC connector range: McAlpine F33R Straight Flexible WC Pan Connector 850mm – 97-107mm x 110mm McAlpine WC-CON2 Straight Adjustable Rigid WC Pan Connector – 97-107mm x 110mm McAlpine WC-CON8 90° Bent Rigid WC Pan Connector – 97-107mm x 110mm McAlpine WC-CON8E 90° Extended Inlet Rigid WC Pan Connector – 97-107mm x 110mm McAlpine WC-CONQ 90° Space Saving Rigid WC Pan Connector – 97-107mm x 110mm Frequently Asked Questions When should I use a flexible connector instead of a rigid one? Use a flexible connector when the WC pan spigot and soil pipe aren’t perfectly aligned — for example, where the pan is slightly offset, angled, or where a rigid connector can’t bridge the gap cleanly. The F26R’s 410mm flexible body gives you the movement needed to make a secure connection in these situations. What is the difference between the F26R and the F33R? The F33R is 850mm long — more than double the length of the F26R — making it suitable for installations where the soil pipe entry is much further from the pan. Choose the F26R for standard offset situations and the F33R where greater reach is needed. What pan spigot sizes does this fit? The adjustable inlet fits all standard WC pan spigots in the 97–107mm range, covering the vast majority of UK toilet pans. Does the flexible body cause sediment build-up? No — independent testing confirms there is no sediment build-up in the flexible body of the F26R, ensuring clear flow performance over the long term. Can I order if the item shows as out of stock? Yes — we can order this product for you even if it shows as out of stock. Lead times may vary; please contact us at customerservice@bubblegumbathrooms.co.uk for availability.

Read more less

The McAlpine WC-CON8E is a 90° rigid WC pan connector with an extended adjustable inlet — designed for installations where extra reach is needed between the pan spigot and the soil pipe. The adjustable 97–107mm inlet suits all standard WC pan spigots, and the 110mm outlet connects to both PVC-U and cast iron soil pipe. Manufactured in durable polypropylene and compliant with BS 5627:1984 and DIN 1389:2015-12. Key Features 90° bend with extended inlet for greater reach Adjustable length for flexible installation 97–107mm inlet suits all standard WC pan spigots 4″/110mm outlet — fits inside diameter of PVC-U and cast iron soil pipe Durable polypropylene construction Complies with BS 5627:1984 and DIN 1389:2015-12 Technical Specification SKU: WC-CON8E Barcode: 5036484007537 Inlet: 97–107mm (adjustable) Outlet: 4″/110mm Angle: 90° Material: Polypropylene Standards: BS 5627:1984 / DIN 1389:2015-12 Weight: 0.15kg Brand: McAlpine More McAlpine WC Pan Connectors Need a different angle, length, or flexibility? Browse the full McAlpine WC connector range: McAlpine WC-CON2 Straight Adjustable WC Pan Connector – 97-107mm x 110mm McAlpine WC-CON8 90° Bent Pan Connector – 97-107mm x 110mm McAlpine WC-CONQ 90° Space Saving Rigid WC Pan Connector – 97-107mm x 110mm McAlpine F26R Straight Flexible WC Pan Connector 410mm – 97-107mm x 110mm McAlpine F33R Straight Flexible WC Pan Connector 850mm – 97-107mm x 110mm Frequently Asked Questions What makes the WC-CON8E different from the standard WC-CON8? The WC-CON8E has an extended inlet, giving additional reach between the pan spigot and the soil pipe entry point. This makes it ideal where the pan is positioned further from the wall or where standard connectors fall short. What pan spigot sizes does this fit? The adjustable inlet fits all standard WC pan spigots in the 97–107mm range, covering the vast majority of UK toilet pans. What soil pipe does the outlet connect to? The 110mm outlet fits the inside diameter of 4″/110mm PVC-U and cast iron soil pipe — the standard soil pipe size used in UK domestic installations. Is this a rigid or flexible connector? This is a rigid connector. If you need a flexible connector for awkward or offset installations, see our McAlpine F26R or McAlpine F33R flexible connectors. Can I order if the item shows as out of stock? Yes — we can order this product for you even if it shows as out of stock. Lead times may vary; please contact us at customerservice@bubblegumbathrooms.co.uk for availability.
