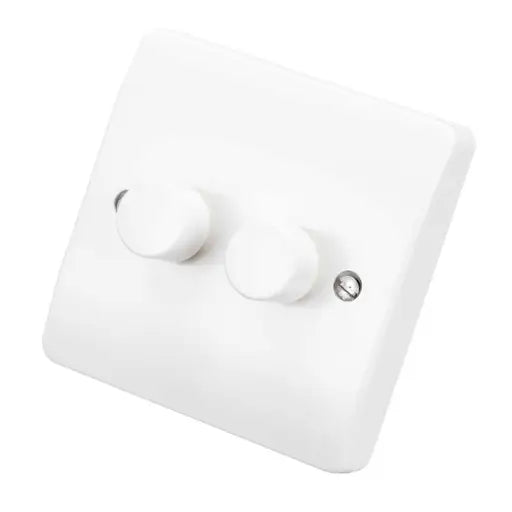

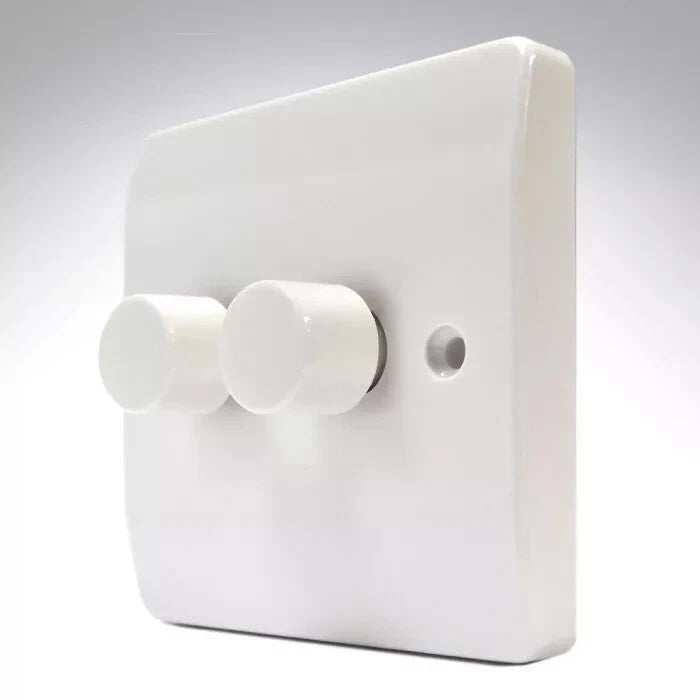

MK Logic Plus K1522WHILV 2-Gang 2-Way Dimmer Switch - White
This MK Logic Plus 2-gang dimmer switch provides versatile lighting control for multiple lamp types including LED, halogen, incandescent and low voltage lighting. With push on/off operation and smooth dimming control, this white dimmer switch combines functionality with the premium quality MK Electric is renowned for.
Key Benefits:
- 2-gang 2-way dimmer for independent control of two lighting circuits
- Dims LED (4-70W), incandescent (40-300W), mains halogen (40-240W) and LV halogen (40-240VA)
- Push on/off operation with smooth rotary dimming control
- Suitable for up to 10 lamps or transformers per circuit
- Compatible with fully dimmable electronic or wire-wound transformers
- White moulded finish to complement modern interiors
- Part of the trusted MK Logic Plus range
- Complies with BS EN 60669-2-1 standard
- Backed by MK's 10-year guarantee
- Shallow 25mm mounting depth for easy installation
Compatible Lamp Types:
-
Dimmable LED: 4-70W
-
Standard Incandescent: 40-300W
-
Mains Halogen: 40-240W
-
Low Voltage Halogen: 40-240VA (via good quality dimmable transformers)
Applications:
- Living rooms and dining rooms requiring dual lighting control
- Bedrooms with main and accent lighting
- Kitchens with task and ambient lighting
- Commercial spaces requiring flexible lighting control
- Retrofit and new build electrical installations
Technical Specifications:
- Type: 2-gang 2-way dimmer switch
- Operation: Push on/off with rotary dimming
- Voltage: 230V
- Power Range: 40-300W per gang
- LED Range: 4-70W per gang
- Minimum Load: 40W
- Maximum Lamps/Transformers: 10 per circuit
- Colour: White
- Dimensions: 86mm (H) × 86mm (W)
- Mounting Depth: 25mm
- Fixing Centres: 60.3mm
- Mounting: Wall (standard UK back box)
- Standard: BS EN 60669-2-1
- Guarantee: 10 years
- Weight: 0.228kg
- Product Range: MK Logic Plus
- Barcode: 5017490318886
- SKU: K1522WHILV
Installation Notes:
The shallow 25mm mounting depth allows installation in standard UK back boxes. For low voltage halogen installations, ensure transformers are good quality, fully dimmable electronic or wire-wound types rated 40-240VA. Professional installation by a qualified electrician is required and must comply with current IEE Wiring Regulations.
Perfect for electricians, contractors and homeowners seeking reliable, versatile dimming control from a trusted British manufacturer. The MK Logic Plus range is renowned for quality, durability and comprehensive compatibility with modern lamp technologies.
