Description
⚡ Professional Backlighting Solution
This LED sheet requires a 24V driver (sold separately). Can be controlled via remote and receiver. Modular design allows multiple panels to be connected for larger installations.
GlowSheet LED Backlight Panel – Professional Flexible Backlighting for Any Application
Create stunning backlit displays with GlowSheet LED panels, the ultra-thin, lightweight, and flexible LED light source designed for professional backlighting applications. These modular LED sheets deliver exceptionally bright and uniform illumination for a wide range of materials, from printed fabrics and duratrans to thick marble and onyx panels. Unlike alternative solutions, the high-density matrix of premium LEDs ensures consistent, even light across the entire surface with no hotspots, no shadowing, and no brighter edges. The flexible substrate conforms to curved or uneven surfaces, while the cuttable design allows for precise on-site customization. Perfect for creating backlit feature walls, illuminated signage, architectural lighting installations, or any application requiring professional-grade backlighting, GlowSheet panels deliver commercial-quality illumination with exceptional versatility.
Premium Features
-
Exceptionally Bright: 1200 lumens per sheet delivers superior backlighting performance
-
Perfectly Uniform Illumination: High-density LED matrix ensures even light with no hotspots
-
Ultra-Thin Profile: Lightweight, low-profile design for seamless integration
-
Flexible Substrate: Conforms to curved or uneven surfaces for expanded design possibilities
-
Cuttable On-Site: Trim with knife or scissors for precise custom sizing
-
Modular Design: Tile multiple sheets together for displays of any size
-
3M Adhesive Backing: Easy positioning and installation
-
Natural White 4000K: Crisp, neutral illumination ideal for backlighting
-
Dimmable: Full dimming control when used with compatible driver and controller
-
Wide Beam Angle: 120° beam ensures comprehensive light distribution
-
Energy Efficient: Just 11W per sheet for 1200 lumens output
-
Professional Grade: Commercial-quality construction for demanding applications
Technical Specifications
| Product Type |
LED Backlight Panel (GlowSheet) |
| Panel Dimensions |
503mm x 235mm |
| Power per Sheet |
11W |
| Light Output per Sheet |
1200 Lumens |
| Rated Voltage |
24V DC |
| Color Temperature |
4000K (Natural White) |
| Beam Angle |
120° |
| Dimmable |
Yes (with compatible driver/controller) |
| Substrate |
Flexible PCB |
| Mounting |
3M Adhesive Backing (included) |
| Cuttable |
Yes (on-site with knife or scissors) |
| Modular |
Yes (tile multiple sheets together) |
| Driver Required |
Yes (24V DC driver - sold separately) |
| Control Options |
Remote and receiver compatible (sold separately) |
| Other Colors Available |
Yes (tunable white, RGB - upon request) |
Why Choose GlowSheet LED Panels?
GlowSheet LED panels represent a professional-grade backlighting solution that delivers superior performance compared to standard edge-lit acrylic panels and other alternative solutions. The high-density matrix of premium LEDs ensures exceptionally bright and uniform illumination that remains consistent regardless of installation size or configuration. This makes GlowSheet ideal for backlighting thicker materials like marble and onyx, as well as installations exposed to high levels of ambient light where standard solutions would appear dim or uneven.
The modular, flexible, and cuttable design provides unmatched versatility, allowing you to create custom backlighting solutions on-site without complex fabrication drawings or lengthy pre-production processes.
Exceptionally Bright and Uniform Illumination
The advanced LED matrix delivers superior backlighting performance:
-
High Brightness: 1200 lumens per sheet provides powerful illumination
-
Perfect Uniformity: Even light distribution across entire surface
-
No Hotspots: Consistent brightness with no visible LED points
-
No Shadowing: Uniform coverage eliminates dark areas
-
No Edge Glow: Professional appearance with no brighter edges
-
Scalable Brightness: Remains consistent regardless of installation size
-
Superior to Edge-Lit: Significantly brighter than standard acrylic panels

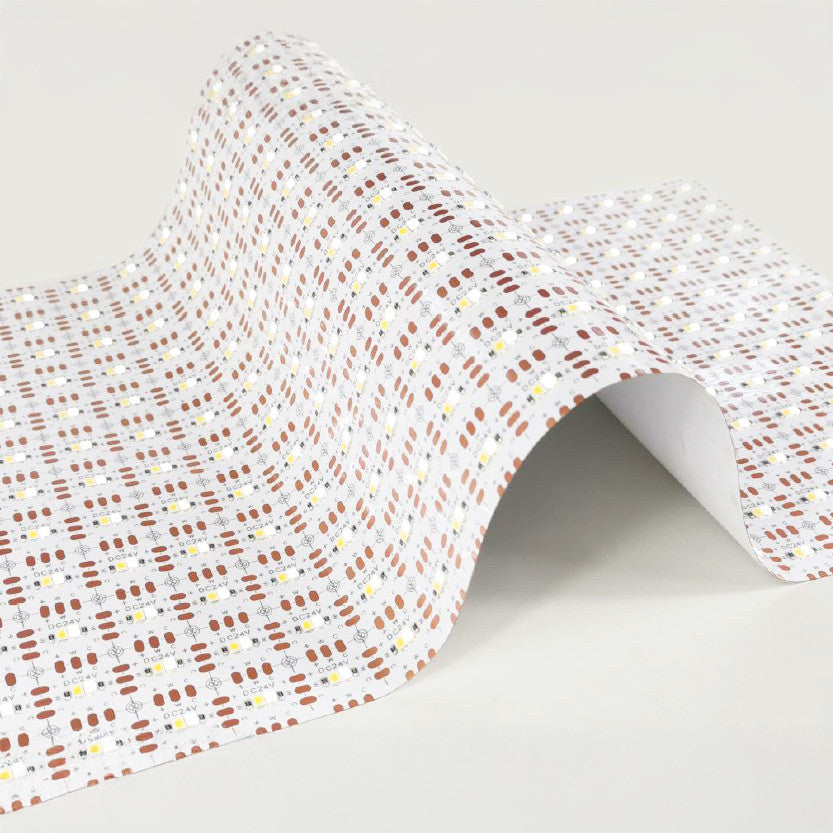

Flexible Substrate for Curved Applications
The flexible PCB construction expands design possibilities:
-
Bend Around Curves: Conform to curved surfaces and architectural features
-
Wrap Around Corners: Create seamless illumination around edges
-
Conform to Irregular Surfaces: Adapt to textured or uneven substrates
-
Expanded Applications: Suitable for far more than flat panel installations
-
Creative Freedom: Enable complex architectural lighting designs
Cuttable On-Site for Perfect Fit
Customize sheets directly on-site for precise installations:
-
Trim with Knife or Scissors: Easy cutting without special tools
-
Cut in LED Increments: Precise sizing in defined cutting lines
-
Work Around Obstacles: Easily navigate switches, sockets, and fixtures
-
Edge-to-Edge Illumination: Perfect fit every time
-
No Pre-Fabrication Required: Adapt on-site for maximum flexibility
-
Reduce Waste: Cut exactly what you need
Modular Design for Any Size Installation
Tile multiple sheets together seamlessly:
-
Unlimited Size: Create backlit displays of virtually any dimensions
-
Seamless Tiling: Connect sheets for continuous illumination
-
Consistent Brightness: Uniform light across entire tiled installation
-
Scalable Projects: Start small and expand as needed
-
Simple Connections: Supplied cables make linking sheets easy
Fast and Easy Installation
Professional installation made simple:
-
3M Adhesive Backing: Pre-applied adhesive for easy positioning
-
Permanent Fixing Options: Secure with nails, screws, or staples if required
-
Simple Connections: Supplied cables link sheets together
-
Quick Setup: Straightforward installation process
-
Minimal Downtime: Fast deployment for commercial projects
Perfect for Backlighting Thick Materials
Superior brightness handles demanding applications:
-

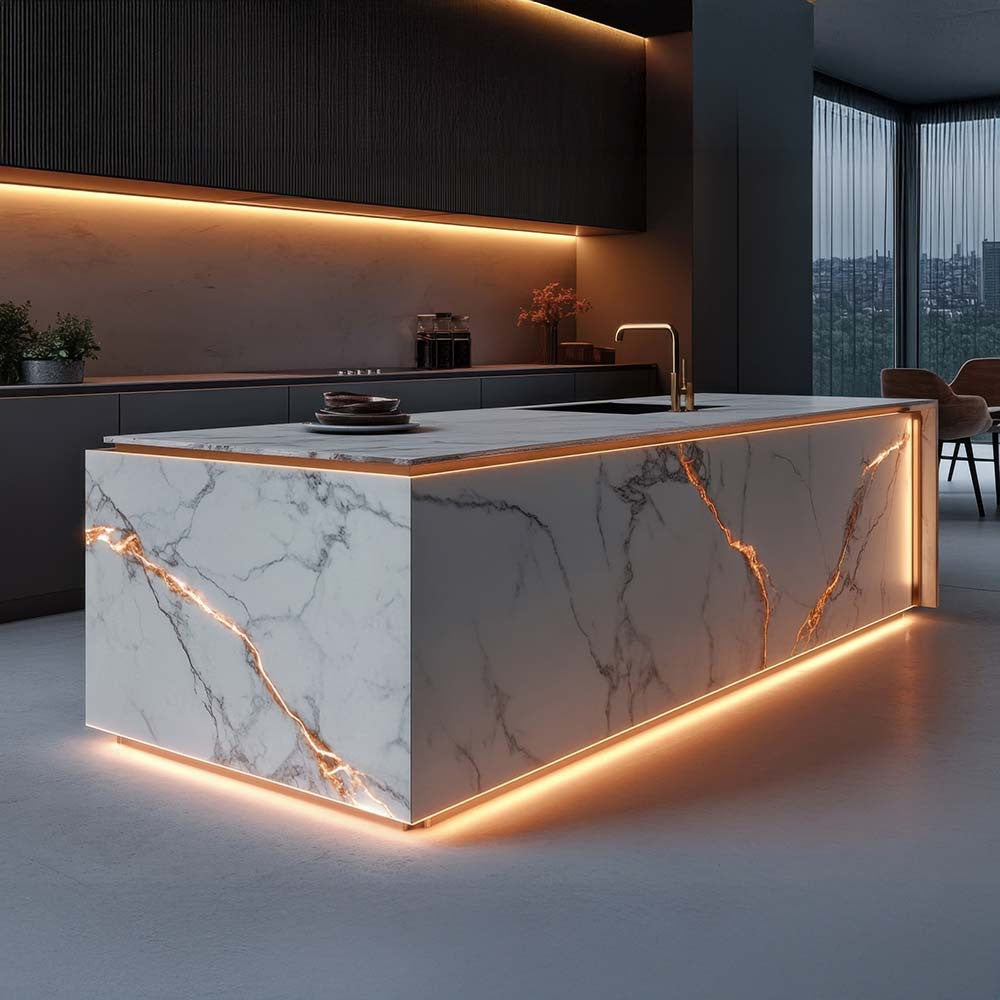

Marble Panels: Illuminate thick natural stone with stunning effect
-
Onyx Panels: Bring out the natural beauty of translucent stone
-
Printed Fabrics: Backlight fabric graphics and displays
-
Duratrans: Professional signage and advertising applications
-
Acrylic Panels: Enhanced illumination for thicker acrylic
-
Textured Materials: Powerful enough for materials that diffuse light
Ideal for High Ambient Light Environments
Exceptional brightness overcomes challenging lighting conditions:
-
Retail Environments: Remain visible in brightly-lit stores
-
Commercial Spaces: Compete with high ambient lighting
-
Outdoor Installations: Maintain visibility in daylight conditions
-
Exhibition Spaces: Stand out in well-lit venues
-
Showrooms: Create impact despite bright overhead lighting
Professional Applications
GlowSheet panels excel in commercial and architectural installations:
-
Feature Walls: Create stunning backlit architectural features
-
Signage: Professional illuminated signs and displays
-
Retail Displays: Eye-catching product presentations
-
Hospitality: Backlit bars, reception desks, and feature elements
-
Residential: Luxury backlit stone, feature walls, and custom installations
-
Commercial Interiors: Office features, lobby installations, and branding
-
Exhibition Stands: Trade show displays and presentations
Dimmable Control Options
Full control over brightness and ambience:
-
Dimmable: Adjust brightness to suit different times and moods
-
Remote Control: Compatible with remote and receiver (sold separately)
-
Driver Required: Requires 24V DC driver (sold separately)
-
Flexible Control: Integrate with building management systems
-
Scene Setting: Create different lighting scenes for various uses
Natural White 4000K Illumination
Ideal color temperature for backlighting applications:
-
Neutral White: 4000K provides crisp, clean illumination
-
True Color Rendering: Accurate representation of backlit materials
-
Versatile Application: Suits commercial and residential projects
-
Professional Appearance: Clean, modern lighting aesthetic
-
Other Colors Available: Tunable white and RGB options upon request
Energy-Efficient LED Technology
Professional performance with low energy consumption:
-
Just 11W per Sheet: Minimal power consumption
-
1200 Lumens Output: Exceptional efficiency (109 lumens per watt)
-
Reduced Operating Costs: Lower energy bills for commercial installations
-
Long Lifespan: LED technology provides years of reliable operation
-
Environmentally Friendly: Reduced energy consumption and carbon footprint
Complete Kit Options Available
Simplify your installation with complete kits:
-
Individual Sheets: Purchase sheets separately for custom projects
-
Complete Kits: Available with drivers and controls included
-
Flexible Ordering: Choose the configuration that suits your project
-
Professional Support: Guidance available for complex installations
Custom Color Options
Beyond standard natural white:
-
Tunable White: Adjust color temperature to suit application
-
RGB Options: Full color-changing capability for dynamic displays
-
Custom Specifications: Contact us for bespoke requirements
-
Project-Specific Solutions: Tailored to your exact needs
Create Professional Backlit Installations
GlowSheet LED panels transform ordinary materials into extraordinary illuminated features with their professional-grade backlighting that delivers exceptionally bright and uniform illumination. The combination of high-brightness output, perfect uniformity, flexible substrate, cuttable design, modular scalability, and easy installation makes GlowSheet the ideal solution for professional backlighting applications. Whether you're creating stunning backlit marble feature walls, illuminated signage, architectural lighting installations, or retail displays, GlowSheet panels deliver commercial-quality performance with unmatched versatility and ease of installation.
