⚡ Professional LED Strip System
This LED strip requires a 24V DC driver (sold separately). Power lead required to connect to driver (sold separately). Cut-anywhere design allows custom lengths.
Required Accessories: 24V Modex Intra Accessories (power leads, sensors, connectors, mounting clips) | 24V Pulse Drivers (8W, 15W, 30W, 60W)
Modex Intra Cut-Anywhere LED Strip – Professional Recessed Profile Lighting
Create sophisticated linear lighting with the Modex Intra, a professional-grade LED strip integrated into a sleek recessed aluminium profile. This innovative system features high-density LED strip (150 LEDs per metre) pre-installed in a 2.5m anthracite-finished recessed profile, delivering exceptional light quality with >90 CRI for superior color rendering. The revolutionary cut-anywhere design allows you to create custom lengths on-site, with cut pieces reusable by adding a power lead – eliminating waste and providing unmatched installation flexibility. Available in warm white (2700K) or natural white (4000K), the Intra combines professional performance with elegant recessed aesthetics. Perfect for under-cabinet lighting, cove lighting, architectural features, retail displays, or any application requiring high-quality linear illumination with a flush-mounted appearance, the Modex Intra delivers commercial-grade lighting with exceptional ease of installation and a comprehensive 5-year guarantee.
Premium Features
-
Cut-Anywhere Design: Create custom lengths on-site without waste
-
Recessed Profile: Flush-mounted design for elegant, seamless installation
-
Integrated LED Strip: High-density 150 LEDs per metre pre-installed in profile
-
Exceptional CRI >90: Superior color rendering for professional applications
-
Anthracite Finish: Contemporary dark grey finish suits modern interiors
-
Reusable Cut Pieces: Add power lead to reuse trimmed sections
-
Two Color Temperatures: Choose warm white 2700K or natural white 4000K
-
Energy Efficient: Just 7.5W per metre for high-quality illumination
-
Dimmable: Full dimming control with compatible driver
-
Sensor Compatible: Plug sensors directly into profile ends
-
Corner Connectors Available: Navigate angles with ease
-
2.5m Length: Generous length reduces joints in installations
-
5-Year Guarantee: Comprehensive warranty for peace of mind
-
Professional Grade: Commercial-quality construction and performance
Technical Specifications
| Product Type |
LED Strip in Recessed Aluminium Profile |
| Profile Length |
2500mm (2.5m) |
| Profile Finish |
Anthracite (Dark Grey) |
| Profile Type |
Recessed |
| LED Density |
150 LEDs per metre |
| Power per Metre |
7.5W/m |
| Total Power (2.5m) |
18.75W |
| Luminous Efficacy |
33-36 lm/W |
| Rated Voltage |
24V DC |
| Color Temperatures |
2700K (Warm White) or 4000K (Natural White) |
| Colour Rendering Index |
>90 CRI |
| Dimmable |
Yes (with compatible 24V driver) |
| Mounting |
Recessed |
| Cut-Anywhere |
Yes |
| Sensor Compatible |
Yes (plug directly into profile ends) |
| Driver Required |
Yes (24V DC driver - sold separately) |
| Power Lead Required |
Yes (sold separately) |
| Warranty |
5 Years |
Why Choose Modex Intra LED Strip?
The Modex Intra represents professional recessed LED strip lighting with its elegant flush-mounted profile that creates seamless, integrated illumination. Unlike surface-mounted profiles, the recessed design allows the profile to sit flush with the mounting surface, creating a clean, sophisticated appearance where the light source virtually disappears. The cut-anywhere functionality provides unmatched installation flexibility, while the exceptional >90 CRI ensures superior color rendering that rivals natural daylight, making the Intra ideal for retail, hospitality, residential, and any application where accurate color representation and elegant aesthetics are essential.
Elegant Recessed Profile Design
The flush-mounted profile creates sophisticated installations:
-
Recessed Installation: Profile sits flush with mounting surface
-
Seamless Appearance: Creates integrated, built-in look
-
Professional Aesthetics: Elegant finish for high-end installations
-
Anthracite Finish: Modern dark grey suits contemporary interiors
-
Aluminium Construction: Durable, lightweight, and heat-dissipating
-
Clean Lines: Sophisticated appearance for premium projects
Revolutionary Cut-Anywhere Design
The game-changing cut-anywhere functionality provides unmatched flexibility:
-
Cut at Any Point: No fixed cutting marks – cut exactly where you need
-
Custom Lengths: Create precise lengths to suit your installation
-
Zero Waste: Cut pieces can be reused with addition of power lead
-
On-Site Flexibility: Adapt to actual site conditions during installation
-
Perfect Fit: Achieve exact lengths without compromise
-
Reusable Offcuts: Use trimmed sections for other applications
-
Cost Effective: Maximize material usage and minimize waste
Exceptional >90 CRI Color Rendering
Superior color rendering for professional applications:
-
True Color Representation: >90 CRI ensures accurate color rendering
-
Professional Quality: Rivals natural daylight for color accuracy
-
Retail Perfect: Display products in their true colors
-
Hospitality Grade: Create inviting, natural-looking environments
-
Residential Excellence: Enhance home interiors with quality light
-
Food Service: Make food look fresh and appetizing
High-Density LED Strip
150 LEDs per metre delivers superior performance:
-
Smooth Illumination: High LED density eliminates visible dots
-
Even Light Distribution: Consistent brightness along entire length
-
Professional Appearance: No pixelation or spotting
-
Close Proximity Applications: Suitable for installations viewed up close
-
Quality Output: Premium LED performance
Integrated Sensor Compatibility
Unique plug-and-play sensor integration:
-
Direct Sensor Connection: Plug sensors directly into profile ends
-
Hand Wave Sensor: Swipe to control, hold to dim
-
Touch Sensor: Touch on/off, touch and hold to dim
-
PIR Motion Sensor: Automatic activation when movement detected
-
No External Wiring: Sensors integrate seamlessly into profile
-
Professional Installation: Clean, integrated appearance
All sensors sold separately. See Modex Intra Accessories for sensor options.
Corner Connectors Available
Navigate angles with ease:
-
Corner Connectors: Connect profiles around corners
-
Flexible Installation: Follow architectural features
-
Continuous Lighting: Seamless illumination around angles
-
Professional Finish: Clean corner transitions
Corner connectors sold separately. See Modex Intra Accessories.
Choose Your Color Temperature
Select the perfect light color for your application:
-
Warm White 2700K: Cozy, inviting illumination perfect for residential spaces, hospitality, restaurants, and creating warm, relaxing atmospheres. Ideal for living areas, bedrooms, dining spaces, and anywhere comfort is priority.
-
Natural White 4000K: Crisp, clean illumination perfect for kitchens, bathrooms, retail, offices, and task lighting. Ideal for workspaces, commercial environments, and applications requiring clear, neutral light.
Professional Applications
The Modex Intra excels in premium installations:
-

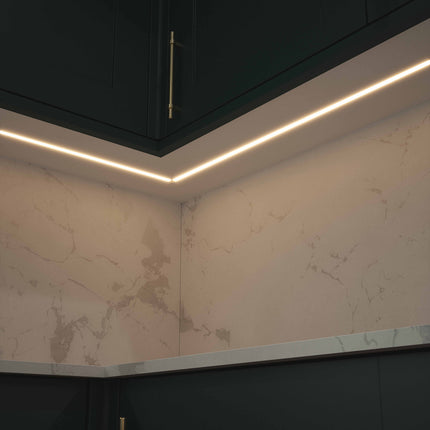

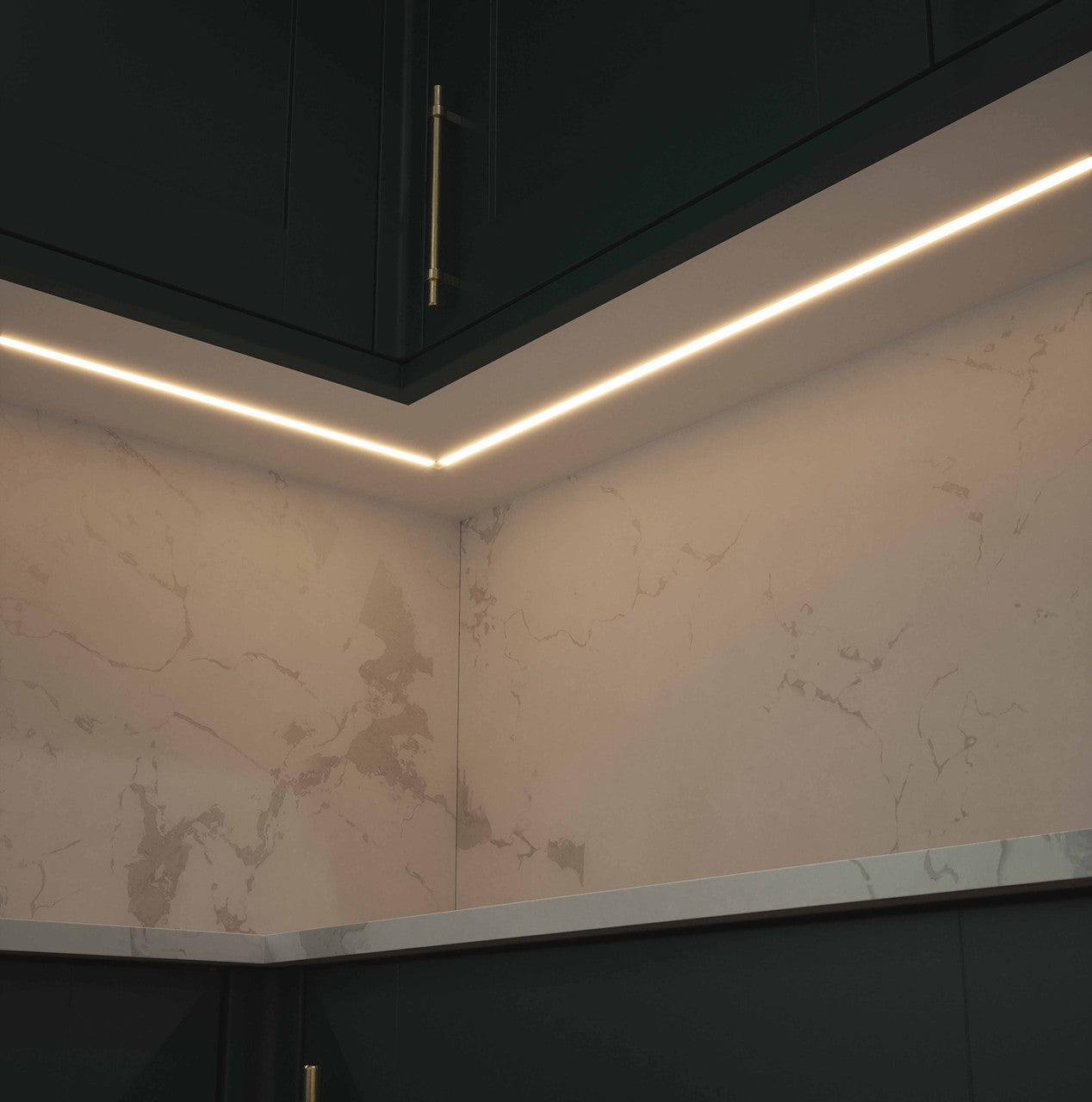

Under-Cabinet Lighting: Recessed kitchen and bathroom cabinet illumination
-
Cove Lighting: Architectural ceiling and wall features
-
Retail Displays: Product shelving and display case lighting
-
Hospitality: Hotels, restaurants, bars, and reception areas
-
Residential: Premium home accent lighting and features
-
Commercial: Office features, reception desks, and branding
-
Architectural: Linear features and design elements
-
Shelving: Flush-mounted shelving illumination
Energy-Efficient Performance
Professional quality with low energy consumption:
-
Just 7.5W per Metre: Minimal power consumption
-
18.75W Total (2.5m): Entire length uses less than 20W
-
Reduced Operating Costs: Lower energy bills for commercial installations
-
Long Lifespan: LED technology provides years of reliable operation
-
Environmentally Friendly: Reduced energy consumption and carbon footprint
Dimmable Control
Full control over brightness and ambience:
-
Dimmable: Adjust brightness to suit different times and moods
-
Compatible Drivers: Works with 24V dimmable drivers
-
Sensor Dimming: Touch and hold or swipe sensors for dimming
-
Scene Setting: Create different lighting scenes for various uses
-
Energy Saving: Reduce consumption by dimming when full brightness not needed
Easy Installation
Professional installation made straightforward:
-
Pre-Installed LED Strip: No separate strip mounting required
-
Recessed Mounting: Flush installation for seamless appearance
-
Cut to Length: Customize on-site for perfect fit
-
Power Lead Connection: Simple connection to driver (lead sold separately)
-
Sensor Integration: Plug sensors directly into profile ends
-
2.5m Lengths: Reduce number of joints in installations
Reusable Cut Pieces
Maximize material usage and minimize waste:
-
Add Power Lead: Trimmed sections become usable strips
-
Use for Smaller Projects: Perfect for short runs and accent lighting
-
Cost Effective: Get maximum value from every metre
-
Environmentally Responsible: Reduce waste through reuse
-
Flexible Inventory: Keep offcuts for future small projects
Comprehensive 5-Year Guarantee
Professional-grade warranty for peace of mind:
-
5-Year Coverage: Extended warranty demonstrates quality
-
Commercial Confidence: Suitable for professional installations
-
Quality Assurance: Backed by manufacturer guarantee
-
Long-Term Investment: Reliable performance for years
Anthracite Contemporary Finish
Modern dark grey finish suits current design trends:
-
Contemporary Aesthetic: Dark grey is hugely popular in modern design
-
Discreet Appearance: Blends into dark surfaces and shadows
-
Versatile Pairing: Works with both light and dark color schemes
-
Professional Look: Sophisticated finish for commercial applications
-
Timeless Appeal: Won't date like some metallic finishes
Complete System Components
Additional items required for complete installation:
Create Professional Recessed Linear Lighting
The Modex Intra LED strip transforms ordinary spaces into professionally-lit environments with its elegant recessed profile that creates seamless, flush-mounted illumination. The combination of recessed design, revolutionary cut-anywhere functionality, exceptional >90 CRI color rendering, high-density 150 LEDs per metre, integrated sensor compatibility, choice of warm or natural white, and comprehensive 5-year guarantee makes the Intra the ideal solution for premium recessed linear lighting applications. Whether you're creating sophisticated under-cabinet kitchen lighting, architectural cove features, retail display illumination, or hospitality accent lighting, the Modex Intra delivers commercial-grade performance with exceptional ease of installation and zero-waste customization in an elegant recessed profile.
