Description
The SycamoreLED 24V Pulse LED Driver is a compact, mains-powered driver with a built-in sensor port that makes sensor integration effortless. Plug a compatible Pulse touch, door, or PIR motion sensor directly into the driver — no junction boxes, no extra wiring runs. Available in four output ratings to suit everything from a single under-cabinet strip to a full commercial fit-out. When paired with a dimmable 24V LED strip and a Pulse touch sensor, the driver delivers smooth touch-and-hold dimming for complete lighting control.
Key Features
-
Integrated Sensor Port: Plug-and-play connection for Pulse touch, door, and PIR motion sensors — no separate sensor wiring required
-
Four Output Options: 8W, 15W, 30W, or 60W — select the wattage to match your LED strip length and load
-
24V DC Output: Compatible with all 24V LED strips including the Modex Zenith, Exa, and Intra ranges
-
Dimmable: Touch-and-hold dimming when used with a Pulse touch sensor and dimmable 24V LED strip
-
Compact & Neat: Integrated connector ports keep wiring tidy; ideal for concealed installation in cabinets and furniture
-
Mains Powered: 240V AC input — standard UK electrical connection
Choosing the Right Wattage
Multiply your LED strip's watts-per-metre rating by the total strip length, then add 20% headroom:
-
8W (SY2499-8): Up to ~1m of 7.5W/m strip — small under-cabinet runs, single short strips
-
15W (SY2499-15): Up to ~2m of 7.5W/m strip — kitchen cabinets, bathroom furniture, shelving
-
30W (SY2499-30): Up to ~4m of 7.5W/m strip — cove lighting, longer runs, multiple strips
-
60W (SY2499-60): Up to ~8m of 7.5W/m strip — large installations, commercial projects
Compatible Pulse Sensors (Sold Separately)
All sensors plug directly into the integrated sensor port — no additional wiring needed:
-
Touch Sensor: Touch on/off; touch-and-hold to dim — ideal for under-cabinet and display lighting
-
Single Door Sensor: Automatic on/off when door opens or closes; 1–3cm detection range — ideal for single-door cabinets and wardrobes
-
Double Door Sensor: As above for double-door cabinets; 1–3cm detection range
-
PIR Motion Sensor: Hands-free activation; 1–3m range, 90° angle, 30-second delay — ideal for hallways and stairs
Technical Specification
-
Brand: SycamoreLED — Pulse Series
-
Output Voltage: 24V DC
-
Input Voltage: 240V AC (mains)
-
Available Outputs: 8W | 15W | 30W | 60W
-
Sensor Port: Integrated — Pulse sensors compatible
-
Dimmable: Yes (with compatible dimmable LED strip and touch sensor)
-
Compatible LED Strips: All 24V LED strips (Modex Zenith, Exa, Intra and others)
-

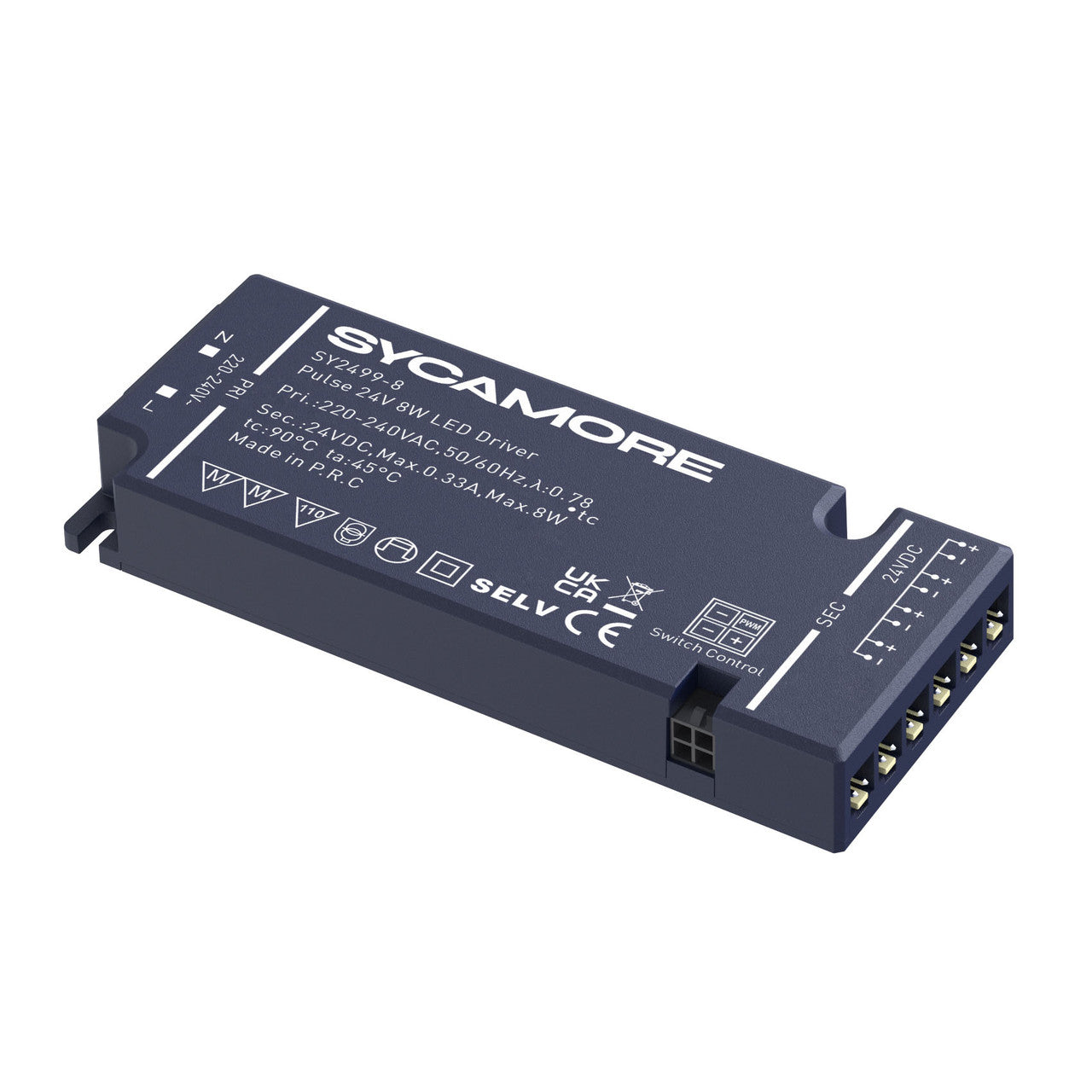

SKU (8W): SY2499-8
-

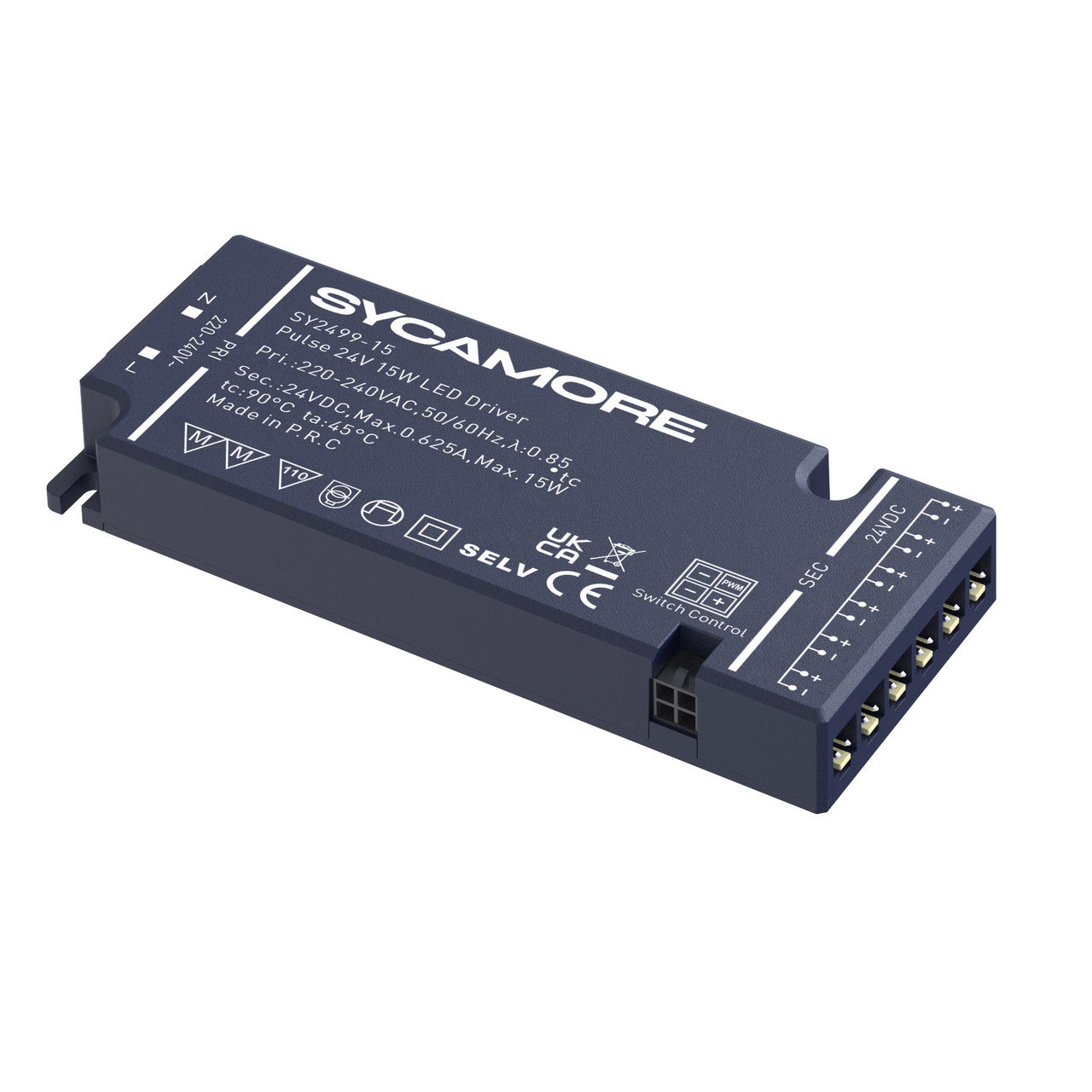

SKU (15W): SY2499-15
-

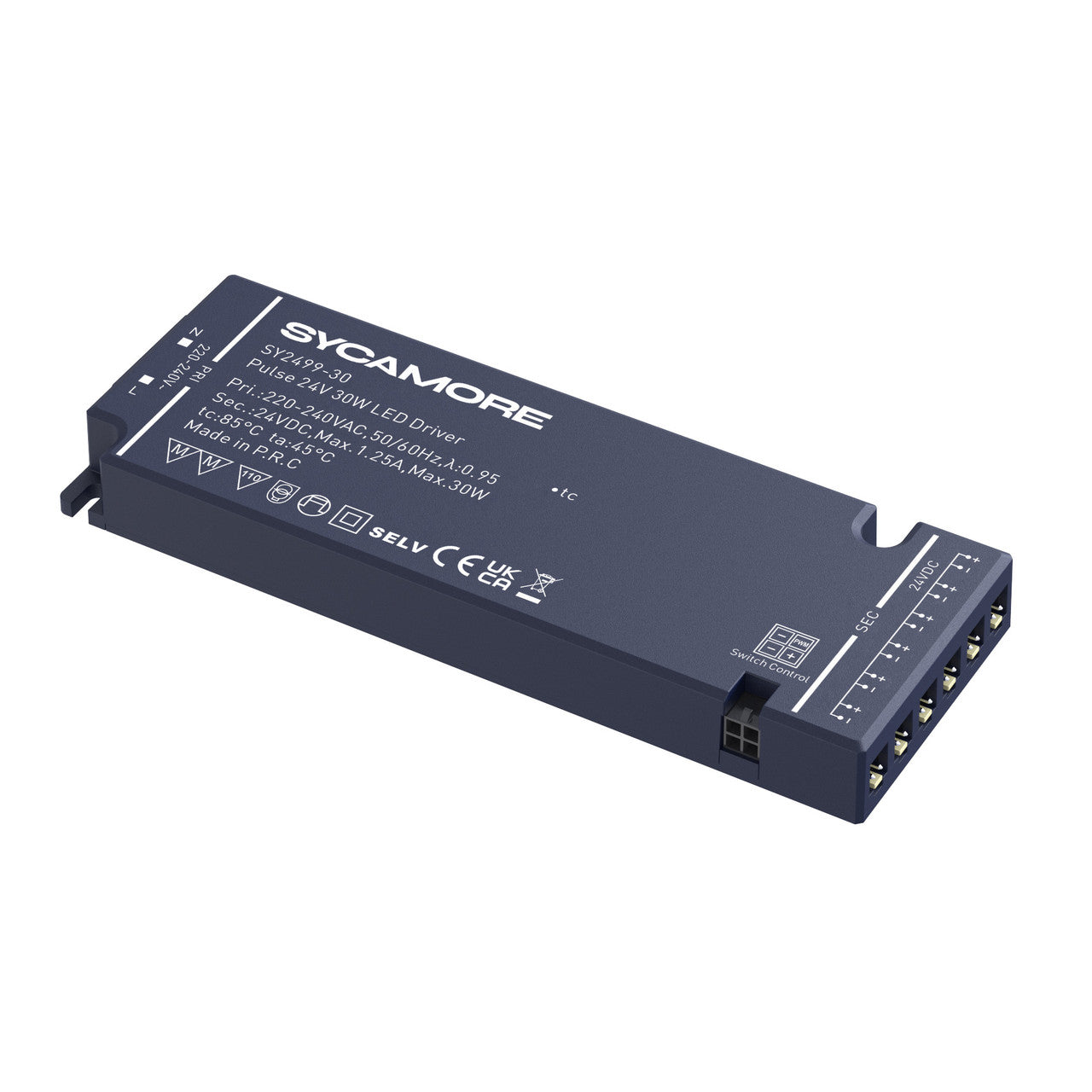

SKU (30W): SY2499-30
-

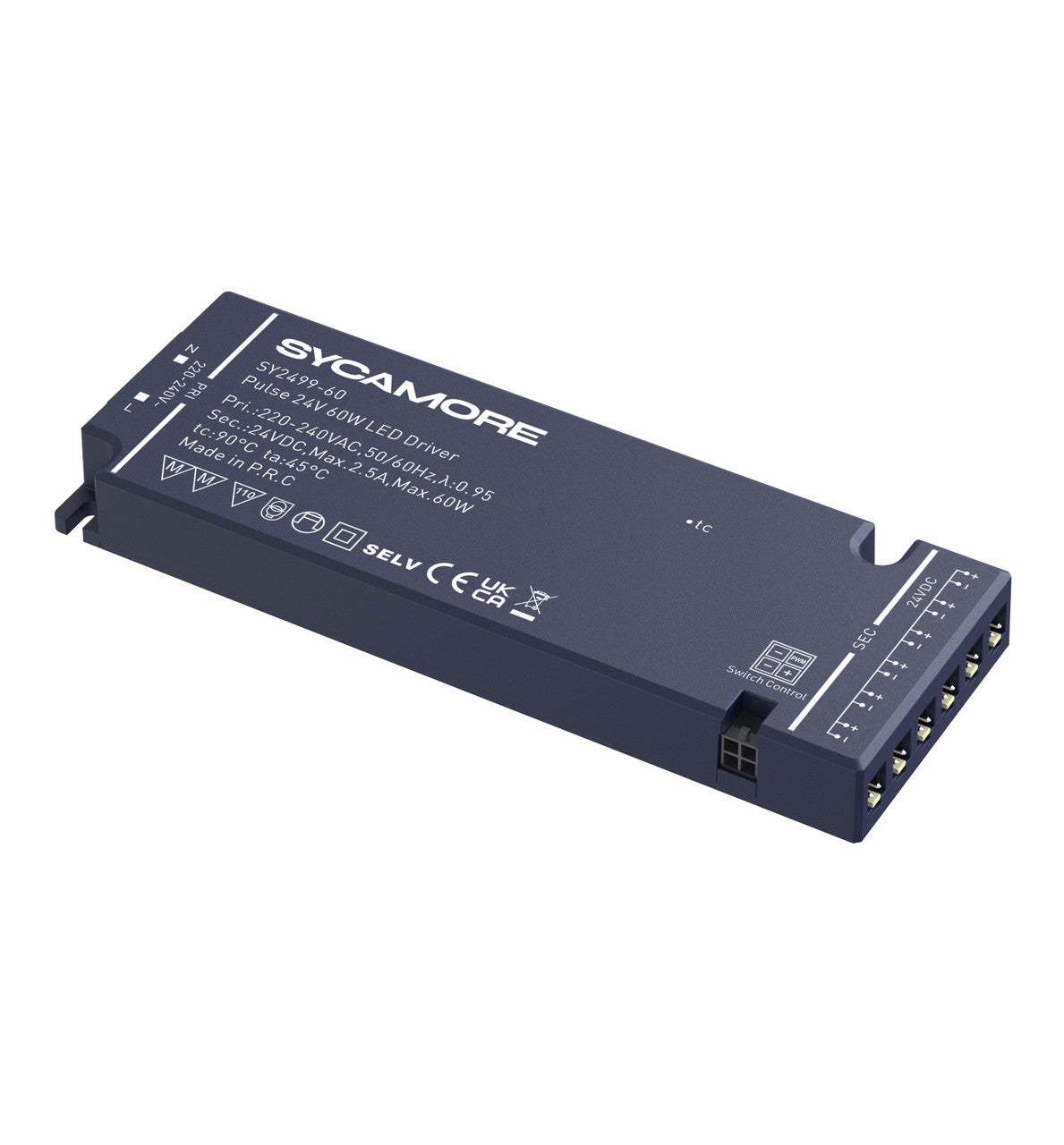

SKU (60W): SY2499-60
-
Country of Origin: China
Frequently Asked Questions
What wattage driver do I need?
Multiply your LED strip's watts-per-metre rating by the total strip length in metres, then add 20% headroom. For example: a 7.5W/m strip at 2m = 15W — choose the 15W or 30W driver. Always size up rather than down.
Do the sensors come included?
No — sensors are sold separately. Compatible Pulse sensors (touch, single door, double door, and PIR motion) are available in the Modex accessories ranges.
Is this driver dimmable?
Yes — when used with a compatible Pulse touch sensor and a dimmable 24V LED strip. Touch and hold the sensor to adjust brightness. Not all LED strips are dimmable — check your strip specification before ordering.
Which LED strips is this driver compatible with?
All 24V LED strips, including the SycamoreLED Modex Zenith, Exa, and Intra ranges. It is not compatible with 12V LED strips.
Can I order if the item shows as out of stock?
Yes — you can still place an order when stock shows as zero. We will fulfil your order as soon as stock is replenished. Contact us at customerservice@bubblegumbathrooms.co.uk or call 01603 381095 for a lead time estimate.
