Description

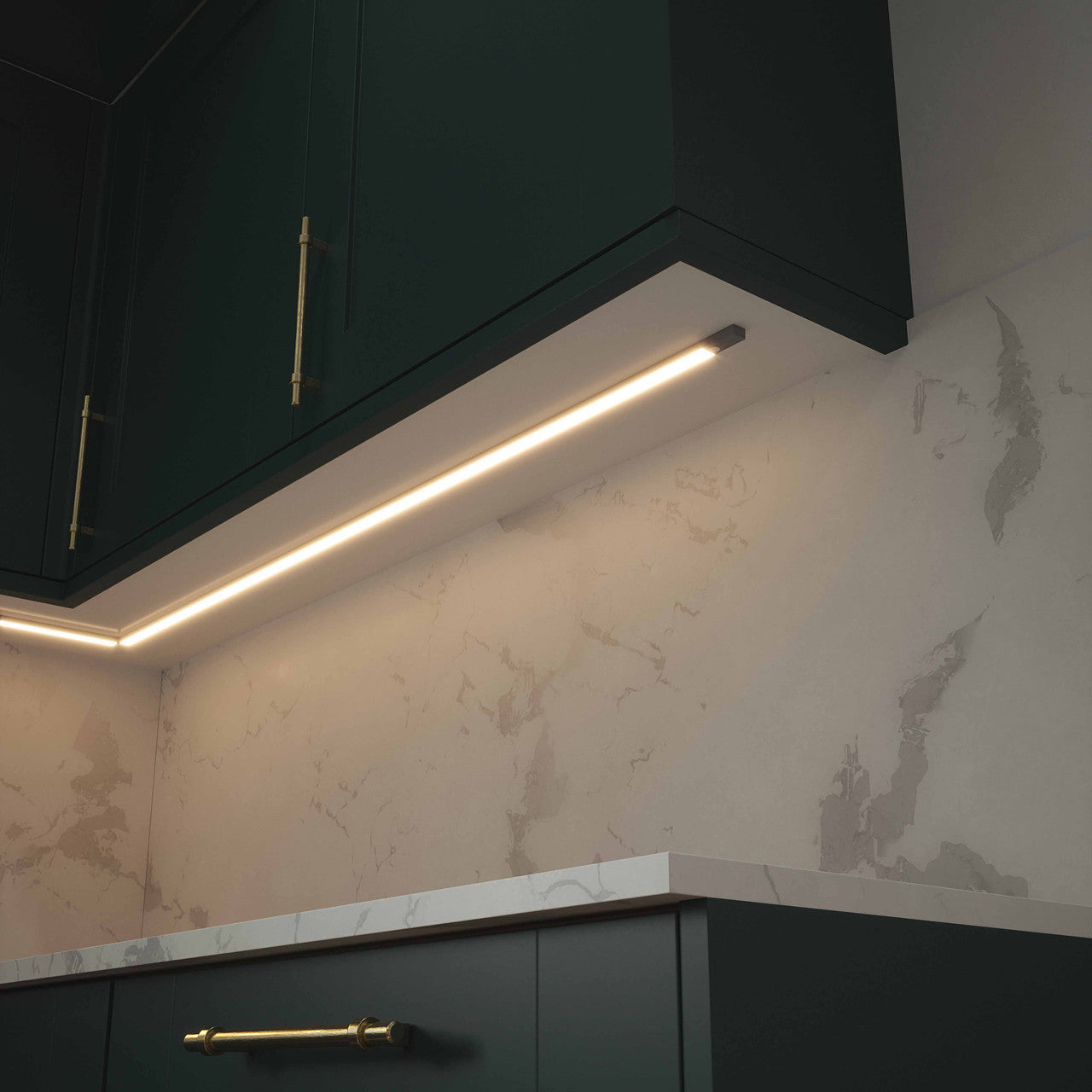

The Modex Exa is a professional-grade LED strip pre-installed in an ultra-slim 16mm × 10.5mm anthracite aluminium surface-mounted profile. At 2.5m long with 150 LEDs per metre and >90 CRI, it delivers smooth, high-quality linear illumination for under-cabinet lighting, shelving, display cases, and architectural features — in spaces where larger profiles simply won't fit. The revolutionary cut-anywhere design lets you trim to any length on-site, with offcuts reusable by adding a power lead. Available in warm white (2700K) or natural white (4000K), with full dimming and integrated sensor compatibility.
Key Features
-
Cut-Anywhere Design: Trim to any length on-site — no fixed cut marks, zero waste
-
Reusable Offcuts: Add a power lead to any trimmed section and use it elsewhere
-
Ultra-Slim Profile: Just 16mm wide × 10.5mm deep — virtually invisible when installed
-
High-Density Strip: 150 LEDs per metre for smooth, dot-free illumination
-
Exceptional Colour Rendering: >90 CRI for accurate, natural-looking light
-
Surface Mounted: No recessing required — fixes directly to any surface
-
Dimmable: Full brightness control with a compatible 24V dimmable driver
-
Sensor Compatible: Plug hand wave, touch, or PIR sensors directly into profile ends
-
Corner Connectors Available: Navigate angles with ease (sold separately)
-
Two Colour Temperatures: 2700K warm white or 4000K natural white
-
Anthracite Finish: Contemporary dark grey blends into modern interiors
-
Energy Efficient: 7.5W per metre — just 18.75W for the full 2.5m length
-
5-Year Guarantee: Comprehensive manufacturer warranty
Technical Specification
-
Profile Length: 2500mm (2.5m)
-
Profile Width: 16mm
-
Profile Depth: 10.5mm
-
Profile Finish: Anthracite (dark grey)
-
Profile Type: Surface mounted
-
LED Density: 150 LEDs per metre
-
Power per Metre: 7.5W/m
-
Total Power (2.5m): 18.75W
-
Luminous Efficacy: 39–40 lm/W
-
Rated Voltage: 24V DC
-
Colour Temperatures: 2700K (warm white) or 4000K (natural white)
-
Colour Rendering Index: >90 CRI
-
Dimmable: Yes (with compatible 24V driver)
-
Cut-Anywhere: Yes
-
Sensor Compatible: Yes (plug directly into profile ends)
-
Driver Required: Yes — 24V DC driver, sold separately
-
Power Lead Required: Yes — left or right hand feed, sold separately
-
Country of Origin: China
-
Warranty: 5 years
Frequently Asked Questions
Do I need a driver?
Yes — the Modex Exa requires a 24V DC driver (sold separately). See our 24V Pulse Drivers (8W, 15W, 30W, 60W).
Do I need a power lead?
Yes — a power lead is required to connect the profile to the driver. Left and right hand feeds are available separately via the Modex Exa Accessories page.
Can I cut it to a shorter length?
Yes — the cut-anywhere design allows you to trim at any point. Offcuts are reusable: simply add a power lead to the trimmed section.
Can I use sensors?
Yes — hand wave, touch, and PIR motion sensors plug directly into the profile ends. See Modex Exa Accessories for options.
Is it dimmable?
Yes — use a compatible 24V dimmable driver. Sensors also support touch-and-hold and swipe dimming.
Which colour temperature should I choose?
Warm white (2700K) suits living areas, bedrooms, and hospitality. Natural white (4000K) is ideal for kitchens, bathrooms, offices, and task lighting.
Can I order if the item shows as out of stock?
Yes — you can still place an order and we will fulfil it as soon as stock is available. Contact us at customerservice@bubblegumbathrooms.co.uk if you need an estimated lead time.
