Description
⚠️ 12V DC Driver Required
These drawer lights require a 12V DC power converter — 12V LED Driver (8W–100W) must be purchased at the same time. Calculate total wattage of all lights and select the appropriate driver capacity.

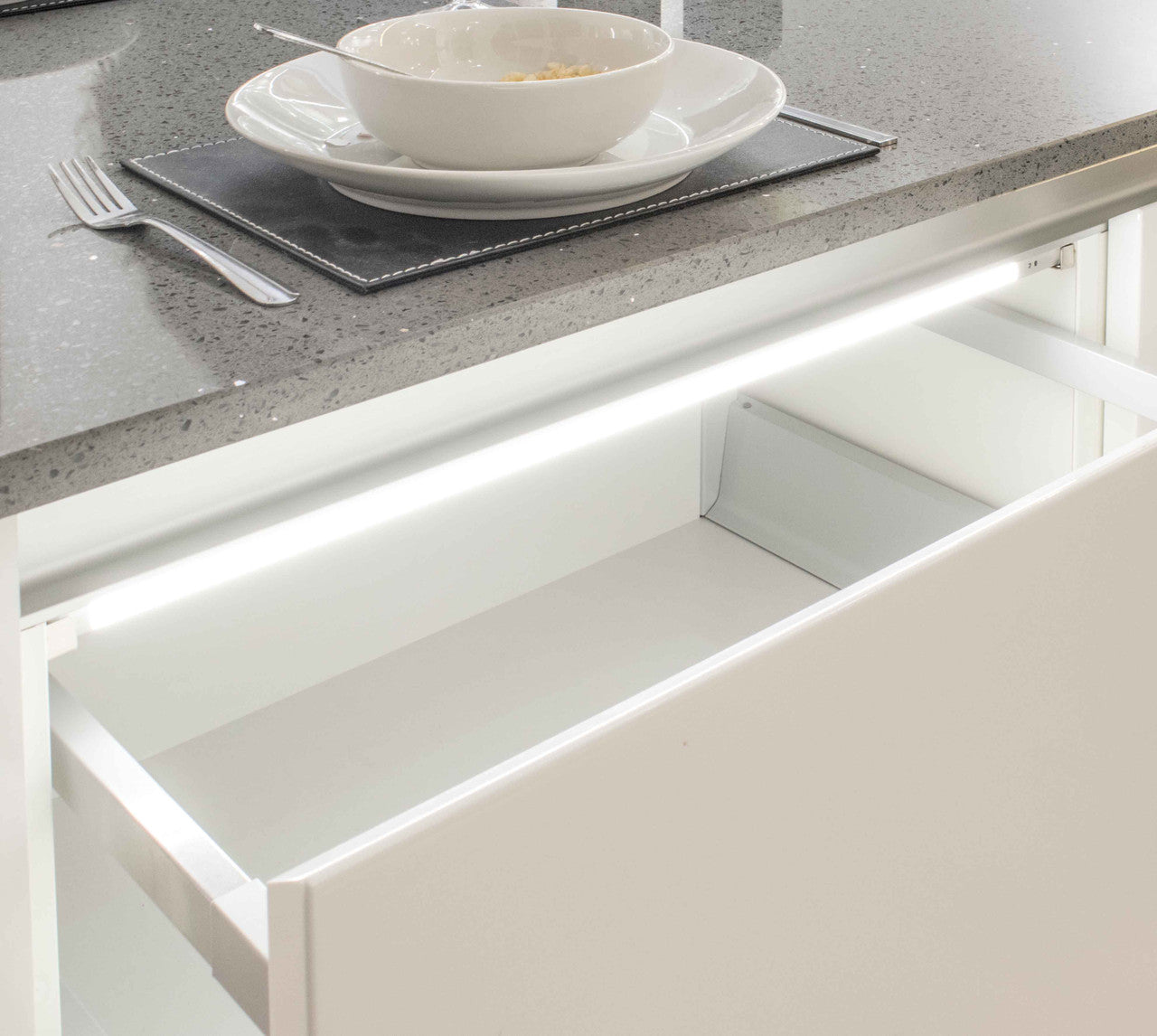

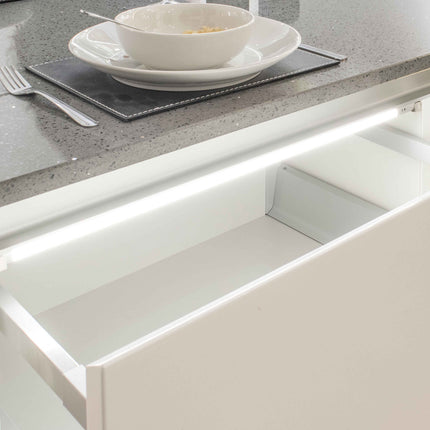

Open a drawer and the light comes on. Close it and it goes off. No switches, no fumbling — just effortless, hands-free illumination exactly when you need it. The SycamoreLED 12V Auto LED Drawer Light uses an integrated infrared sensor to detect drawer movement, delivering crisp 4000K natural white light from a sleek stainless steel housing that disappears into the drawer carcass. With six sizes from 360mm to 960mm, ultra-slim 12.6mm height, and a comprehensive 5-year guarantee, these are the professional's choice for kitchen, wardrobe, and furniture drawer lighting.
Key Features
-
Integrated Infrared Sensor — automatic on/off as drawer opens and closes, no manual switching required
-
Soft-Start Technology — gentle ramp-up eliminates harsh flashing on activation
-
Six Size Options — 360mm, 460mm, 560mm, 760mm, 860mm, 960mm to suit standard drawer widths
-
Stainless Steel Housing — premium, corrosion-resistant finish; easy to wipe clean
-
4000K Natural White | >80 CRI — crisp, accurate illumination for finding items quickly
-
Ultra-Slim Profile — just 12.6mm high × 23.7mm deep; fits 15–22mm carcass units without reducing drawer capacity
-
Low Energy — 2.5W to 6.7W depending on size; lights only active when drawer is open
-
1.5m Cable — flexible routing to your 12V driver
-
5-Year Guarantee — commercial-grade confidence for professional and domestic installations
-
Energy Efficiency Class G (EU 2019/2015)
Size Guide
| Size |
Power |
Typical Application |
| 360mm |
2.5W |
Cutlery drawers, narrow cabinets |
| 460mm |
3.2W |
Utensil drawers, small storage |
| 560mm |
3.9W |
Medium pan drawers, general storage |
| 760mm |
5.3W |
Large pan drawers, wide cabinets |
| 860mm |
6.0W |
Extra-large drawers, wide storage units |
| 960mm |
6.7W |
Maximum-width pan drawers |
Measure the internal width of your drawer and select the closest size, allowing a small clearance gap at each end.
Technical Specification
| Rated Voltage |
12V DC |
| Available Lengths |
360mm, 460mm, 560mm, 760mm, 860mm, 960mm |
| Power Range |
2.5W – 6.7W (size dependent) |
| Colour Temperature |
4000K Natural White |
| CRI |
>80 |
| Housing |
Stainless Steel |

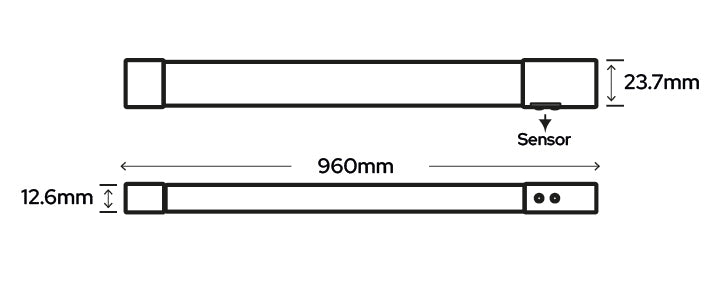

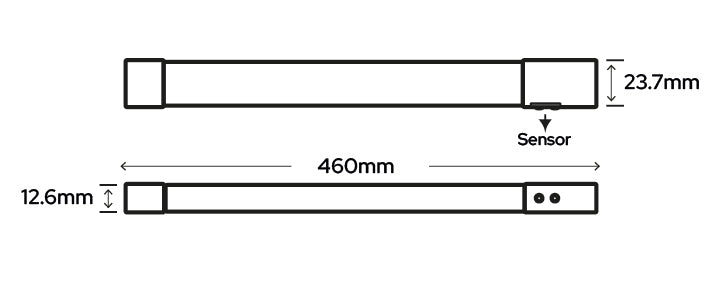

| Height |
12.6mm |
| Depth |
23.7mm |
| Carcass Compatibility |
15–22mm |
| Cable Length |
1.5m |
| Sensor Type |
Integrated Infrared |
| Mounting |
Surface Mounted |
| Dimmable |
No |
| Driver Required |
Yes — 12V DC (sold separately) |
| Energy Efficiency Class |
G (EU 2019/2015) |
| Warranty |
5 Years |
| Country of Origin |
China |
| Brand |
SycamoreLED |
Complete Your SycamoreLED Installation
Frequently Asked Questions
Do I need to buy a driver separately?
Yes — these lights run on 12V DC and require a separate LED driver. Add the 12V LED Driver to your order. To choose the right wattage, add up the total wattage of all drawer lights you're installing (e.g. four 560mm lights = 4 × 3.9W = 15.6W, so choose the 20W driver).
Can I order if the item shows as out of stock?
Yes — we can fulfil this product even when stock shows as zero. Place your order as normal and we'll confirm lead time with you.
How does the infrared sensor work?
The sensor is integrated into the light bar itself. When the drawer is opened, the sensor detects movement and switches the light on automatically. When the drawer is closed, the light switches off. No additional sensor components are required.
Which size should I choose?
Measure the internal width of your drawer. Choose the light length that fits comfortably within that width, leaving a small gap at each end. If your drawer is between sizes, select the smaller option to ensure a clean fit.
Can these be used in bathrooms?
These lights are not IP-rated for wet areas. They are suitable for bathroom vanity drawers that are not directly exposed to water or steam. For wet-area applications, please contact us for advice.
Are these dimmable?
No — these drawer lights are non-dimmable. They operate at full brightness when the drawer is open.
