Description
The Nuie Beaumont Cranked Bath Shower Mixer is a traditional three-handle bath and shower mixer with a generous cranked spout for comfortable bathing clearance. Featuring classic crosshead handles for hot, cold, and diverter control, this deck-mounted mixer operates from just 0.1 bar minimum — ideal for gravity-fed systems and period properties. Shower kit included. Solid brass construction in chrome or brushed brass. Backed by Nuie’s 5-year guarantee.
Key Features
- Deck-mounted cranked bath shower mixer — 200mm pipe centres
- 3 crosshead handles — independent hot, cold, and diverter control
- Cranked spout — generous clearance for comfortable bathing
- Screw-down cartridges for reliable, long-lasting operation
- Shower kit included — waste sold separately
- Ultra-low pressure compatible — operates from just 0.1 bar minimum
- High flow rate — up to 48 l/min at 1 bar
- Solid brass body construction
- Available in Chrome and Brushed Brass
- 5-year guarantee from Nuie
Available Finishes
-

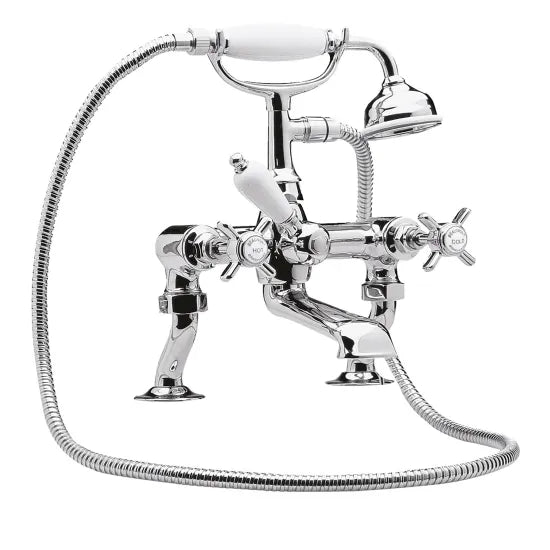

Chrome — SKU: I303X
-

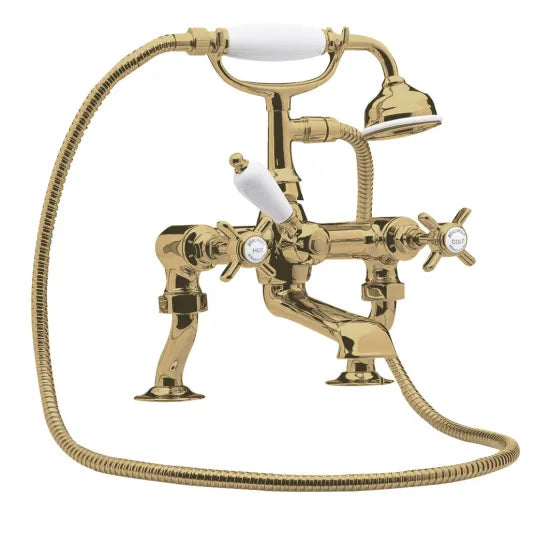

Brushed Brass — SKU: I803X
Technical Specification
-
Brand: Nuie
-
Range: Beaumont
-
SKU (Chrome): I303X
-
SKU (Brushed Brass): I803X
-
Style: Traditional crosshead
-
Material: Solid brass body
-
Handles: 3 crosshead (hot, cold, diverter)
-
Cartridge: Screw-down
-
Mounting: Deck mounted
-
Pipe Centres: 200 mm
-
Connection: 22mm (¾" BSP)
-
Dimensions: H295 × W215 × D180 mm
-
Spout Height: 30 mm
-
Spout Projection: 115 mm
-
Minimum Pressure: 0.1 bar
-
Flow Rate at 0.1 bar: 12 l/min
-
Flow Rate at 0.5 bar: 36 l/min
-
Flow Rate at 1 bar: 48 l/min
-
Shower Kit: Included
-
Waste: Not included
-
Guarantee: 5 Years
-
HS Code: 8481800000
Complete the Beaumont Collection
Frequently Asked Questions
Is a shower kit included?
Yes — a shower kit is included. A bath waste is not included and must be purchased separately.
What is a cranked spout?
A cranked spout has an angled bend that raises the spout outlet higher above the bath rim, providing generous clearance for comfortable bathing and a distinctive traditional silhouette.
What is the minimum pressure required?
The Beaumont Cranked Bath Shower Mixer operates from just 0.1 bar minimum, making it ideal for gravity-fed systems, loft conversions, and period properties. Flow rates are 12 l/min at 0.1 bar, 36 l/min at 0.5 bar, and 48 l/min at 1 bar.
What are the pipe centres?
This mixer requires 200mm pipe centres — the distance between the hot and cold supply connections.
What guarantee is included?
Nuie backs the Beaumont range with a 5-year guarantee.
