Description

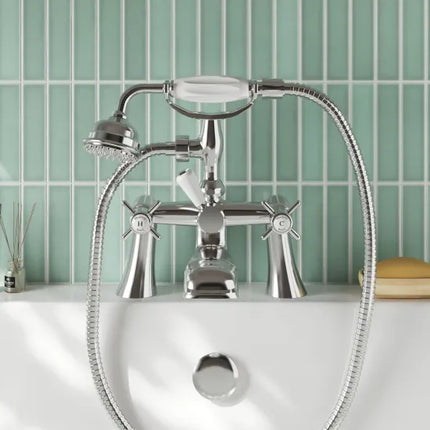

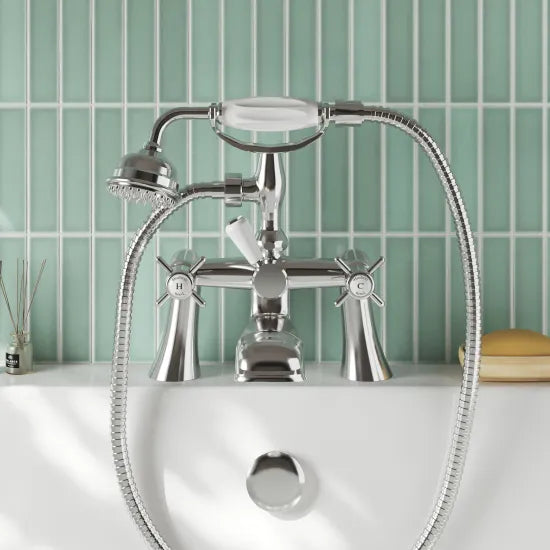

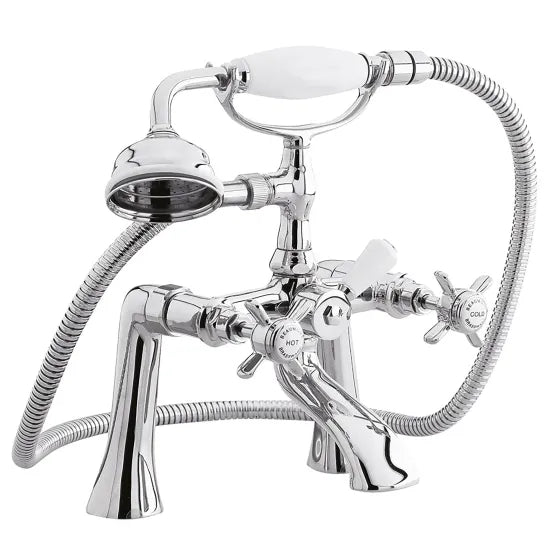

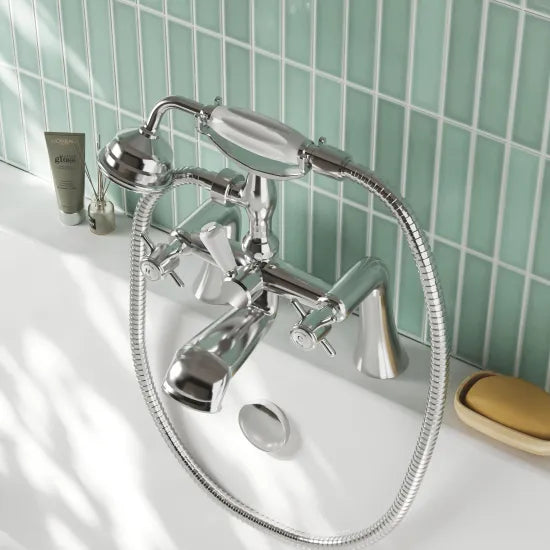

The Nuie Beaumont Traditional Bath Shower Mixer is a classic three-handle deck-mounted mixer combining period crosshead styling with dual bath and shower functionality. The upright spout provides generous clearance for comfortable bathing, while the separate diverter handle switches effortlessly between bath fill and shower. Shower kit with handset and hose included. Solid brass construction in chrome or brushed brass. Operates from just 0.1 bar minimum. Backed by Nuie’s 5-year guarantee.
Available Finishes & Prices
-
Chrome — £195 (SKU: I304X)
-

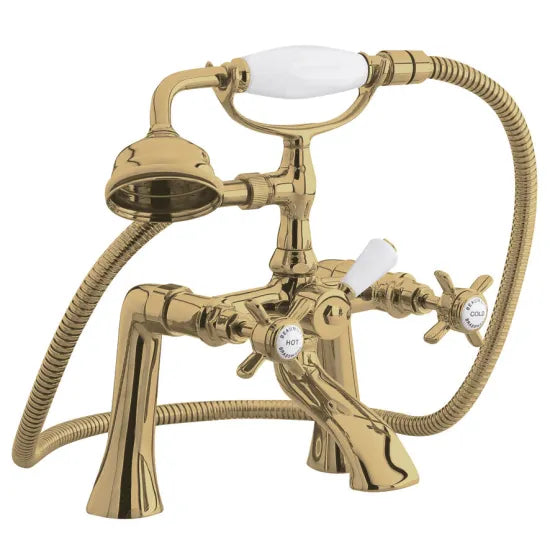

Brushed Brass — £259 (SKU: I804X)
Key Features
- Deck-mounted traditional bath shower mixer — 180mm pipe centres
- 3 crosshead handles — independent hot, cold, and diverter control
- Upright spout — generous clearance for comfortable bathing
- Screw-down cartridges for reliable, long-lasting operation
- Shower kit included — handset and hose supplied; waste sold separately
- Ultra-low pressure compatible — operates from just 0.1 bar minimum
- High flow rate — up to 48 l/min at 1 bar
- Solid brass body construction
- Available in Chrome and Brushed Brass
- 5-year guarantee from Nuie
Technical Specification
-
Finish options: Chrome / Brushed Brass
-
Style: Traditional crosshead
-
Material: Brass body
-
Handles: 3 crosshead (hot, cold, diverter)
-
Cartridge: Screw-down (pre-installed)
-
Mounting: Deck Mounted
-
Pipe Centres: 180mm
-
Connection: 22mm (¾" BSP)
-
Dimensions: H282 × W220 × D165mm
-
Spout Projection: 115mm
-
Minimum Pressure: 0.1 bar
-
Flow Rate (0.1 bar): 11.5 l/min
-
Flow Rate (0.5 bar): 35 l/min
-
Flow Rate (1 bar): 48 l/min
-
Includes: Shower kit (handset and hose)
-
Waste Supplied: No
-
Brand: Nuie
-
Range: Beaumont
-
SKU (Chrome): I304X
-
SKU (Brushed Brass): I804X
-
Guarantee: 5 years
Complete the Beaumont Collection
Frequently Asked Questions
What is the difference between this and the Beaumont Cranked Bath Shower Mixer?
The Traditional Bath Shower Mixer has an upright spout and 180mm pipe centres, while the Cranked version has an angled cranked spout and 200mm pipe centres. Both operate from 0.1 bar and include a shower kit. Choose based on your pipe centre spacing and preferred spout style.
Is a shower kit included?
Yes — a shower kit with handset and hose is included. A bath waste is not included and must be purchased separately.
What is the minimum pressure required?
The Beaumont Traditional Bath Shower Mixer operates from just 0.1 bar minimum, making it ideal for gravity-fed systems, loft conversions, and period properties. Flow rates are 11.5 l/min at 0.1 bar, 35 l/min at 0.5 bar, and 48 l/min at 1 bar.
What are the pipe centres?
This mixer requires 180mm pipe centres — the distance between the hot and cold supply connections. If your pipe centres are 200mm, see the Beaumont Cranked Bath Shower Mixer.
What guarantee is included?
Nuie backs the Beaumont range with a 5-year guarantee.
