Description
Complete your traditional bathroom with the Nuie Beaumont Bath Filler — a classic crosshead bath filler with solid brass construction, screw-down cartridges, and impressive flow rates from just 0.1 bar. The 115mm spout projection and 180mm pipe centres suit standard bath configurations, while the timeless crosshead styling complements period, country, and heritage bathroom schemes. Available in Chrome and Brushed Brass, backed by a 5-year guarantee.
Available Finishes & Prices
-

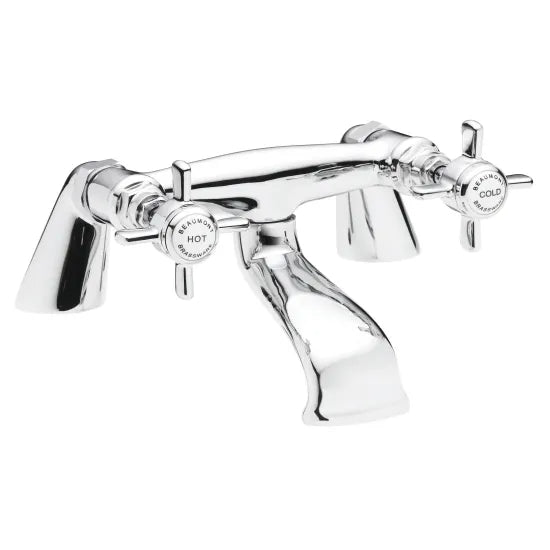

Chrome — £145 (SKU: I328X)
-

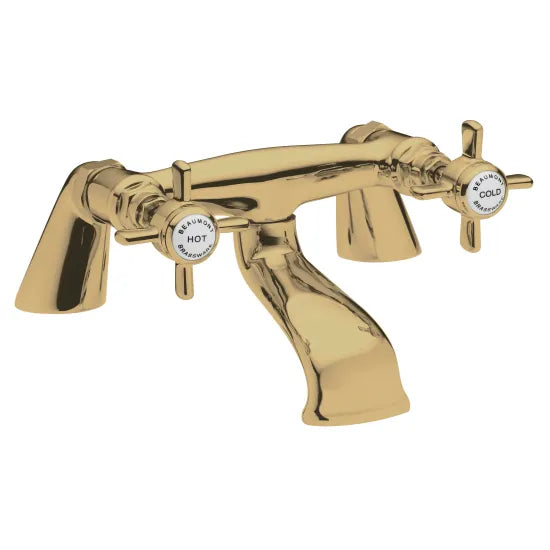

Brushed Brass — £189 (SKU: I828X)
Key Features
-
Ultra-Low Pressure Compatible: Operates from just 0.1 bar — ideal for gravity-fed systems
-
Excellent Flow Rates: Up to 49 l/min at 2 bar for fast, efficient bath filling
-
Classic Crosshead Handles: Traditional styling with screw-down cartridges
-
Solid Brass Construction: Chrome or brushed brass finish
-
Standard Pipe Centres: 180mm centres, 22mm (¾" BSP) connections
-
Deck Mounted: 2 tap holes required
-
5-Year Guarantee: Nuie manufacturer warranty
Technical Specification
-
Type: Bath Filler Tap — Traditional Crosshead
-
Brand: Nuie — Beaumont Range
-
Handles: 2 Crosshead (Hot & Cold)
-
Cartridge: Screw-Down
-
Material: Solid Brass
-
Mounting: Deck Mounted — 2 Tap Holes
-
Height: 100mm
-
Width: 220mm
-
Depth: 180mm
-
Spout Projection: 115mm
-

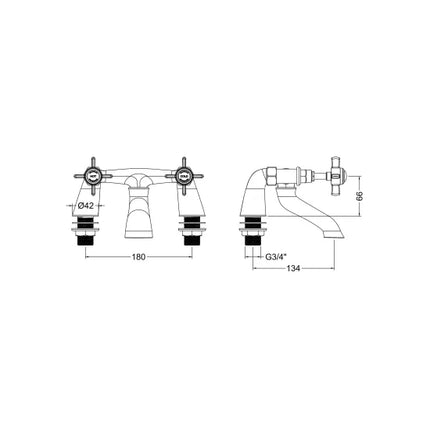

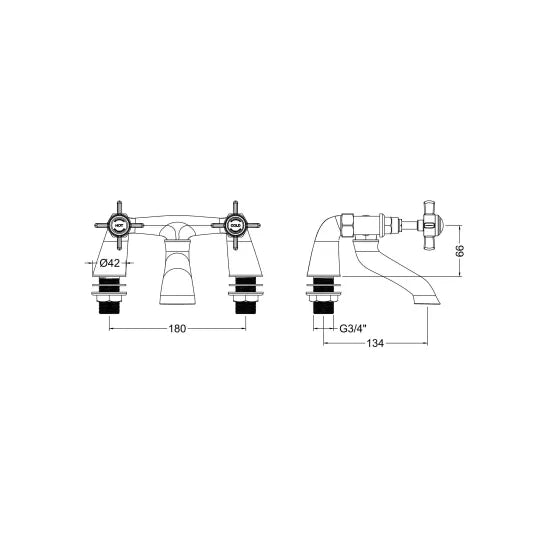

Pipe Centres: 180mm
-
Connection: 22mm (¾" BSP)
-
Minimum Pressure: 0.1 bar
-
Flow Rate (0.1 bar): 9 l/min
-
Flow Rate (0.5 bar): 30 l/min
-
Flow Rate (1 bar): 40 l/min
-
Flow Rate (2 bar): 49 l/min
-
Waste: Not Included
-
SKU (Chrome): I328X
-
SKU (Brushed Brass): I828X
-
Guarantee: 5 years
Complete the Beaumont Collection
Frequently Asked Questions
What is the minimum water pressure required?
The Nuie Beaumont Bath Filler operates from a minimum of 0.1 bar — one of the lowest available, making it ideal for gravity-fed systems, tank-fed supplies, and upper-floor installations. Flow rates scale from 9 l/min at 0.1 bar up to 49 l/min at 2 bar.
What are screw-down cartridges?
Screw-down cartridges use a traditional compression mechanism — turning the handle compresses a rubber washer against a seat to control flow. They are the classic valve type used in traditional taps, well-suited to low-pressure systems, and straightforward to service or replace. They differ from ceramic disc cartridges, which use a quarter-turn mechanism.
What are the pipe centres?
The Beaumont Bath Filler has 180mm pipe centres — the distance between the hot and cold supply inlets. Ensure your bath has tap holes at 180mm centres, or that your plumber can set the supplies to this spacing.
How many tap holes does this require?
This bath filler requires 2 tap holes in the bath deck or rim.
Is a waste included?
No — a bath waste is not included. Please add a compatible bath waste separately.
What guarantee does this tap come with?
A 5-year manufacturer guarantee from Nuie.
