Description

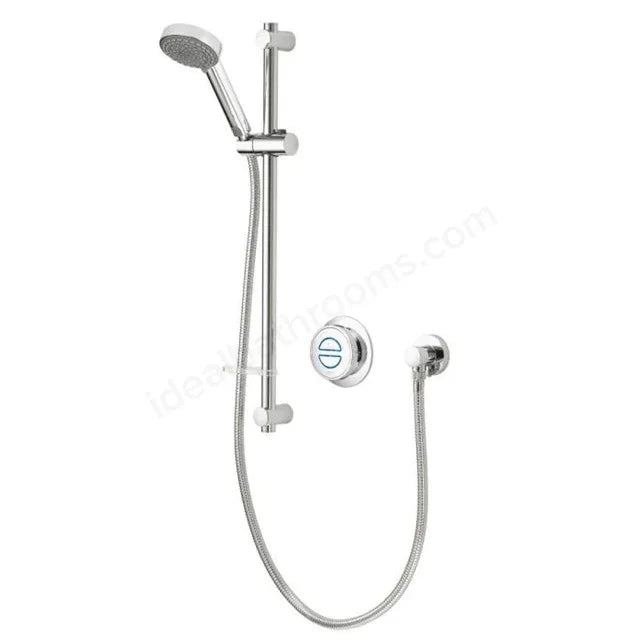

The Aqualisa Quartz Classic Concealed Digital Shower with Adjustable Head brings one-touch smart showering to your bathroom with a clean, concealed installation. The Aqualisa SmartValve™ sits remotely — in a loft, airing cupboard, or under bath — keeping all mechanical components out of the bathroom. Supplied with a 105mm adjustable head offering 4 spray patterns including an eco-spray option. Available in High Pressure/Combi and Gravity/Low Pressure variants.
One-Touch Smart Control with Boost
Simple push-button one-touch start/stop operation with an LED display that indicates when your pre-selected temperature has been reached. The boost button provides enhanced flow on demand — ideal for rinsing or when extra pressure is needed.
Wi-Fi & App Compatible
Connect via Wi-Fi for full smartphone control through the Aqualisa app. Features include remote start/stop, shower timer, user dashboard, usage tracker, and help & support. Also compatible with Alexa and Google Home smart home devices.
Aqualisa SmartValve™ — Remote Siting
The concealed Aqualisa SmartValve™ can be sited remotely — in a loft, airing cupboard, or under bath — keeping all mechanical components out of the bathroom for a clean, uncluttered installation. All connections are 15mm push-fit throughout.
105mm Adjustable Head — 4 Spray Patterns
The 105mm adjustable head offers 4 spray patterns including an eco-spray option for water-efficient showering. The adjustable angle suits all users and installation heights.
Key Features
- One-touch start/stop control with LED temperature display
- Boost button for enhanced flow on demand
- Wi-Fi & app compatible (iOS & Android) — start/stop, timer, dashboard, usage tracker
- Alexa & Google Home compatible
- Aqualisa SmartValve™ — remote siting in loft, airing cupboard, or under bath
- 105mm adjustable head — 4 spray patterns including eco-spray
- Compatible with wired secondary remote control
- CE, UKCA & BEAB approved
- 5-year guarantee (shower unit) / 2-year guarantee (shower head & kit)
- Concealed installation — clean, uncluttered bathroom finish
Technical Specification
| Specification |
High Pressure / Combi |
Gravity / Low Pressure |
| SKU |
QZD.A1.BV.23 |
QZD.A2.BV.23 |
| Barcode |
5023942293571 |
5023942294288 |
| Price |
£779.00 |
£879.00 |
| Min. pressure |
1 bar |
0.1 bar |
| Max. pressure |
5 bar |
1 bar |
| Inlet connections |
15mm push-fit |
| Outlet connections |
15mm push-fit |
| Valve inlet centres |
48mm |
| Inlet supply |
Hot right, cold left |
| SmartValve™ siting |
Loft, airing cupboard, under bath |
| Cold inlet temp |
1–15°C |
| Hot inlet temp |
Max 65°C |
| Head |
105mm adjustable, 4 spray patterns inc. eco-spray |
| Finish |
Chrome |
| Approvals |
CE, UKCA, BEAB |
| Guarantee |
5yr (unit) / 2yr (head & kit) |
| Brand |
Aqualisa |
| Range |
Quartz Classic |
Complete the Quartz Classic Range
Frequently Asked Questions
What is the difference between the High Pressure/Combi and Gravity/Low Pressure variants?
The High Pressure/Combi variant (QZD.A1.BV.23) is designed for mains-pressure and combination boiler systems with a minimum of 1 bar. The Gravity/Low Pressure variant (QZD.A2.BV.23) is designed for gravity-fed and low-pressure systems (immersion heater) with a minimum of just 0.1 bar. If you're unsure which system you have, check with your plumber before ordering.
Does this shower require professional installation?
Yes — professional installation by a qualified plumber is required. The SmartValve™ must be sited in an accessible location for future servicing.
Where does the SmartValve™ go?
The SmartValve™ can be sited remotely — in a loft, airing cupboard, or under the bath — keeping all mechanical components out of the bathroom for a clean finish.
Is this shower compatible with smart home devices?
Yes — the Quartz Classic is compatible with Alexa and Google Home, and can be controlled via the Aqualisa app on iOS and Android.
Can I add a secondary control?
Yes — the Quartz Classic is compatible with the Aqualisa Quartz Classic Smart Secondary Start/Stop Control, allowing you to start and stop your shower from a second location.
What is the guarantee?
5 years on the shower unit and 2 years on the shower head and kit.
Can I order if the item shows as out of stock?
Yes — we operate on a pre-order basis for out-of-stock items. Please contact us at customerservice@bubblegumbathrooms.co.uk or call 01603 381095 to confirm lead times before ordering.
