Description

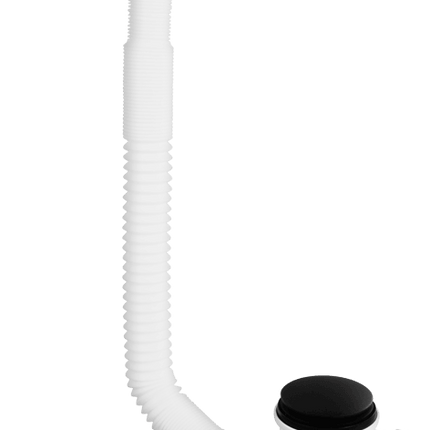

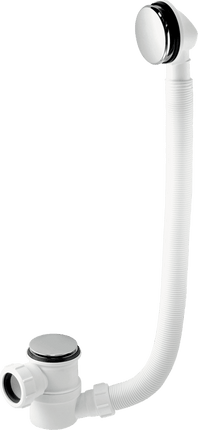

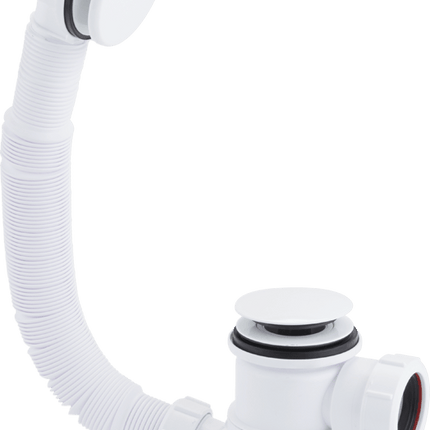

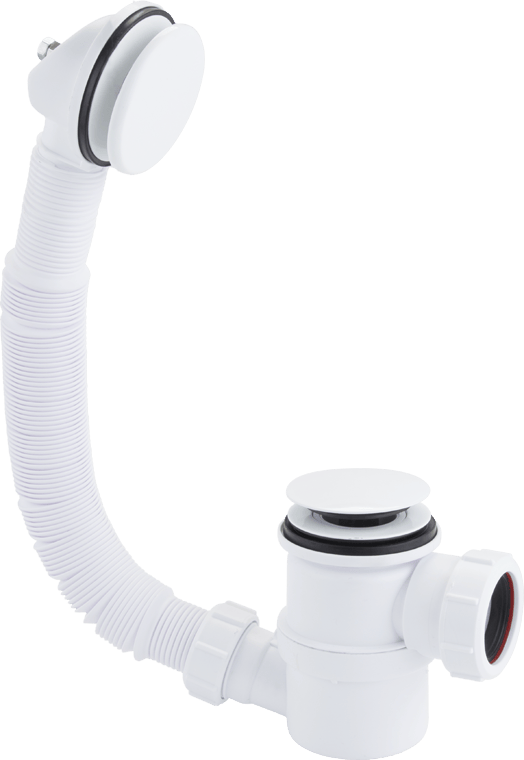

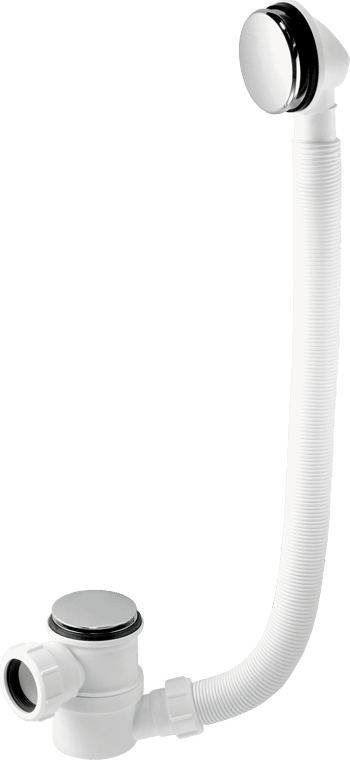

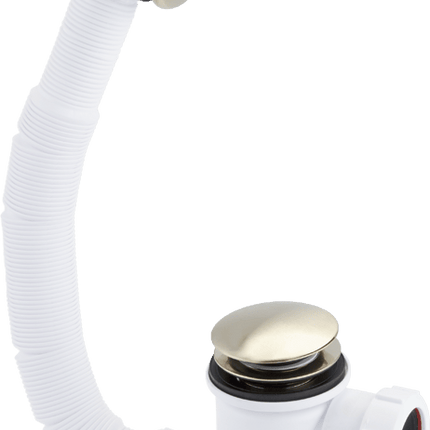

The McAlpine HC2650UK is the shallowest combined top access bath trap and waste assembly on the market — with an overall height of just 112mm including the trap and waste. Featuring a 50mm water seal, a swivelling outlet for easy installation, and a spring-loaded mushroom plug for top-access cleaning, it’s the go-to solution for low-clearance bath installations. Available in four finishes to match your bathroom hardware.
Key Features
-
Ultra-Low Profile: 112mm overall height — the shallowest top access combined bath trap & waste available
-

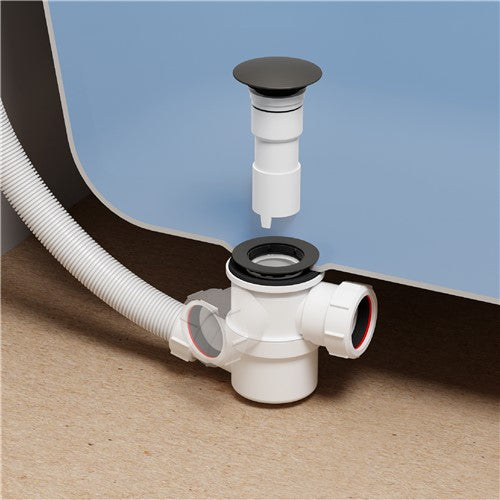

Top Access Cleaning: Spring-loaded mushroom plug lifts out for easy hair and debris removal without removing the trap
-
Swivel Outlet: 1½” outlet rotates 360° for flexible positioning during installation
-
50mm Water Seal: Provides effective odour barrier in compliance with building regulations
-
Universal Multifit Compression Outlet: Suits all plastic, copper, and lead waste pipes
-
Adjustable Overflow Tube: Flexible length adjusts from 330mm to 580mm to suit your bath
-

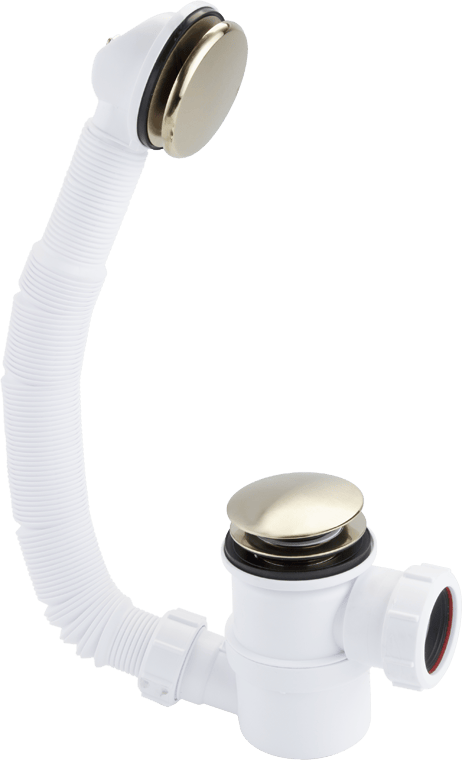

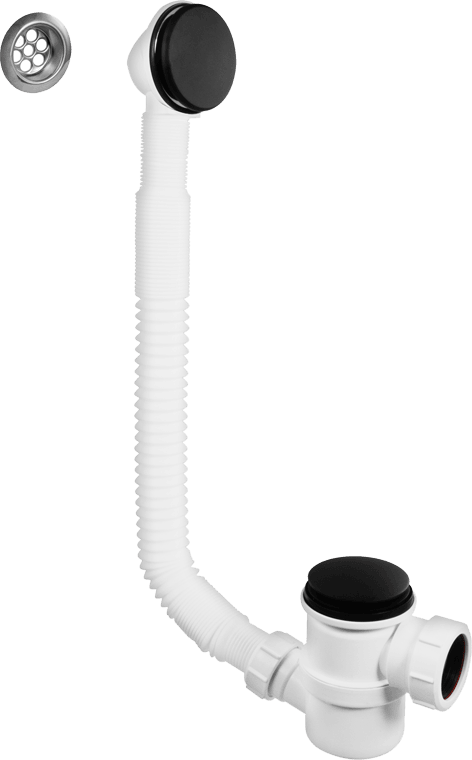

Four Finishes: Chrome, Matt Black, Brushed Brass, or White — to match your bathroom taps and hardware
-
Conforms to BS EN 274-1:2002: Meets the relevant UK/EU standard for sanitary appliance fittings
Technical Specification
-
SKU / MPN: HC2650UK (Chrome) | HC2650UK-WH (White) | HC2650UK-MB (Matt Black) | HC2650UK-BB (Brushed Brass)
-
Brand: McAlpine
-
Water Seal: 50mm
-
Outlet Size: 1½” Universal Compression (Multifit)
-
Outlet Type: Swivel — suits all plastic, copper, and lead pipe
-
Overall Height (incl. trap & waste): 112mm
-
Overflow Tube Length: Adjustable 330mm – 580mm
-
Plug Type: Spring-loaded mushroom plug (top access)
-
Finishes: Chrome Plated Brass | Matt Black | Brushed Brass | White
-
Standard: BS EN 274-1:2002
-
Country of Origin: United Kingdom
Multifit Connections Explained
McAlpine Multifit connections suit all plastic waste pipes to BS EN 1451-1:2000 and BS EN 1329-1:2000, copper pipe (metric or imperial), and lead pipe. The moulded internal sleeve centres and supports the pipe, while the Multifit and friction washers create a secure seal. Tighten hand-tight for the best mechanical joint. If a plastic pipe is undersize or out of round, warming the end gently will help it seat over the sleeve.
Delivery Information
This is a small, postable item covered by a one-off small item delivery charge. You can combine it with other small items in a single order and pay just one delivery charge. Browse all items covered by the small delivery charge.
Frequently Asked Questions
Why is the HC2650UK described as the shallowest on the market?

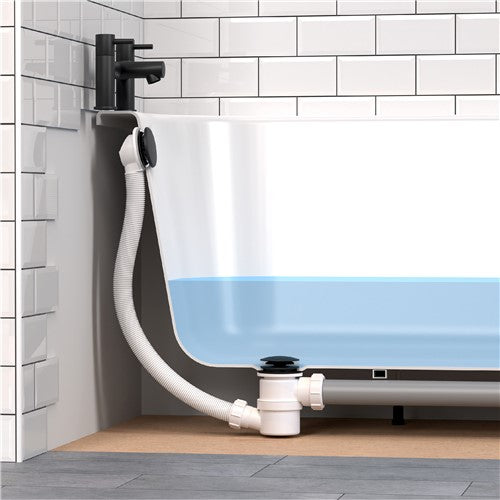

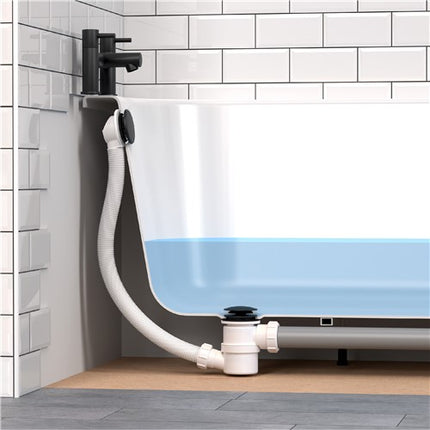

The combined overall height of the trap and waste assembly is just 112mm — making it ideal for baths where floor-to-underside clearance is severely restricted, such as freestanding baths on low feet or built-in baths with deep frames.
What pipe sizes does the outlet fit?
The 1½” Multifit compression outlet suits all standard plastic, copper (metric and imperial), and lead waste pipes without adaptors.
My bath has a thick reinforced base — will this fit?
If your bath has a thicker than standard baseboard or reinforced frame, you may need the HC2650UK Extension Kit, which lowers the outlet position to accommodate the extra depth.
Can the overflow tube length be adjusted?
Yes — the flexible overflow tube adjusts from 330mm to 580mm, making it compatible with a wide range of bath overflow heights.
Does it require a plumber to install?
The HC2650UK is designed for straightforward installation, but if you’re not confident with plumbing work we recommend using a qualified plumber, particularly in a bathroom environment.
