Description

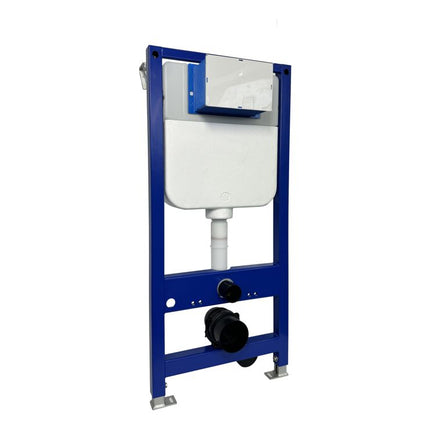

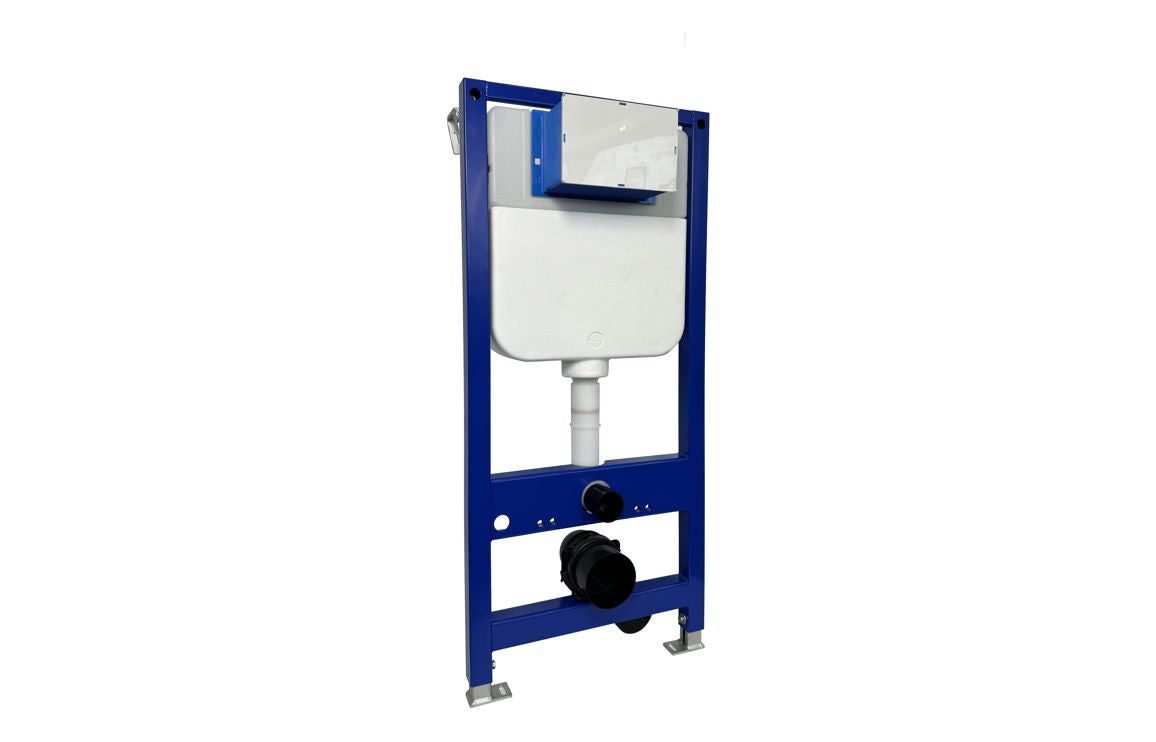

A sturdy standard-height wall-hung WC frame with integrated slim dual-flush cistern, suitable for all wall-hung toilet pans. Height-adjustable to accommodate different pan heights, with front-access servicing and WRAS-approved fittings throughout. Backed by a 3-year manufacturer's guarantee.
Note: A flush plate is required and sold separately. This frame is compatible with all of our round and rectangle flush plates — see the Compatible Flush Plates section below.
Key Features
- Standard height frame suitable for most wall-hung WC installations
- Height adjustable between 1080–1380mm to suit different pan heights
- Integrated slim dual-flush cistern — 6/4L for water efficiency
- Front accessible for easy servicing
- Suitable for all wall-hung WC pans
- Not compatible with WC furniture units
- WRAS approved fittings
- 3-year manufacturer's guarantee

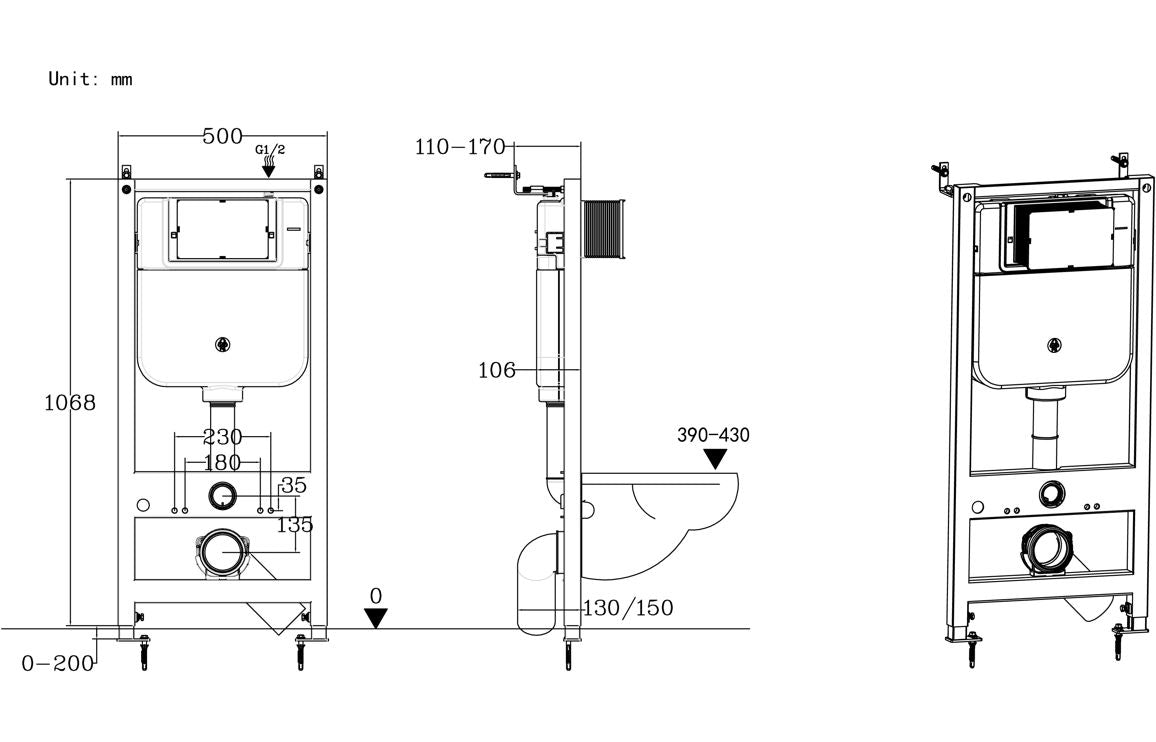

Technical Specification
-
Height: 1068mm
-
Width: 500mm
-
Depth: 110–170mm
-
Height Adjustment: 1080–1380mm
-
Flush Volume: 6/4L dual flush
-
Access: Front
-
Guarantee: 3 Years
-
Packaged Weight: 17.2kg
-
EAN: 5054913515217
-
SKU: BGBP109014
Compatible Flush Plates
This frame requires a flush plate, sold separately. It is compatible with all of our round and rectangle flush plates:
Also Available — Cistern & Frame Options
Complete the Installation
Frequently Asked Questions
Does this frame come with a flush plate?
No — a flush plate is required but sold separately. This frame is compatible with all of our round and rectangle flush plates, each available in Chrome, White, Black, Brushed Brass, and Brushed Bronze.
Is this frame compatible with WC furniture units?
No — this frame is designed to be fixed directly into a supporting wall and is not compatible with WC furniture units.
What is the difference between this and the low-height frame?
This standard-height frame adjusts between 1080–1380mm and suits most typical bathroom installations. The low-height frame (BGBP109016) adjusts between 740–920mm and is designed for installations with restricted ceiling height or sloped roofs.
Can I order if the item shows as out of stock?
Yes — this product can be ordered even when showing as out of stock, and we'll fulfil your order as soon as stock is available. If you need a specific delivery timeframe, please contact us at customerservice@bubblegumbathrooms.co.uk before ordering.
