Description

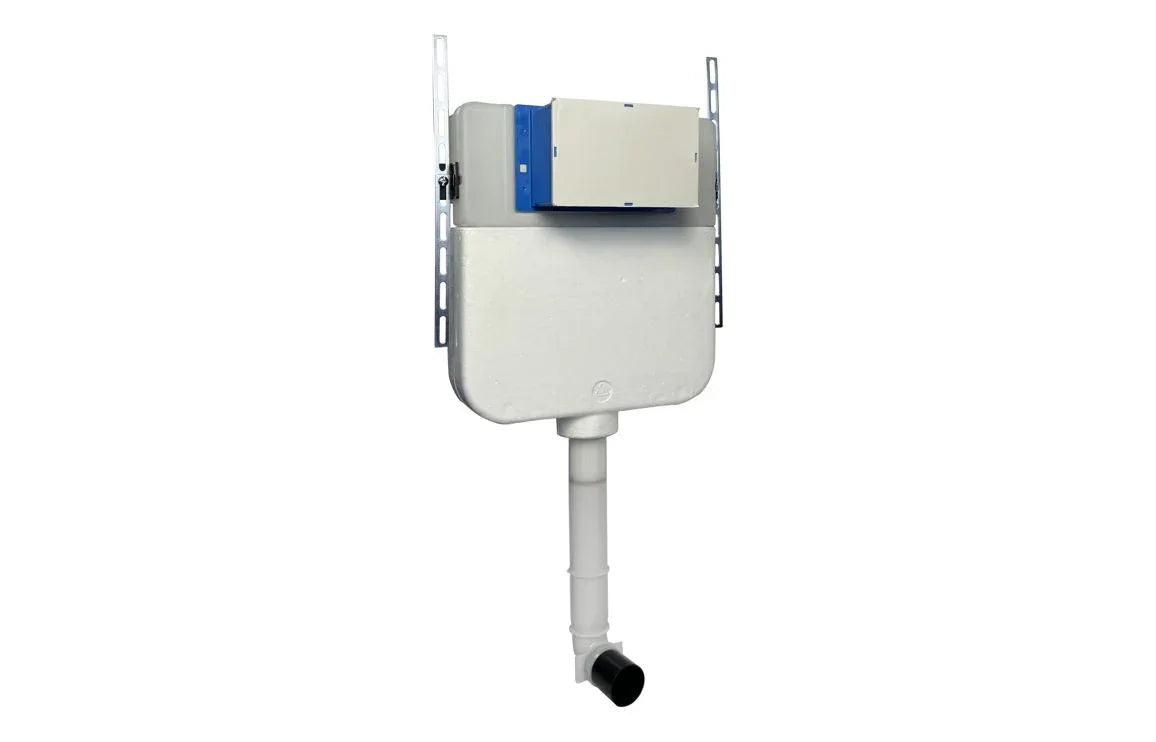

Transform your bathroom with this premium slim concealed cistern featuring dual flush technology (6/4L) for water efficiency and modern aesthetics. Designed for professional installations behind the wall or BTW pans, this WRAS-approved cistern delivers reliable performance in compact spaces.
Key Features
-
Space-Saving Design — Ultra-slim profile (104mm depth) perfect for tight installations
-
Dual Flush Efficiency — 6/4L flush options reduce water consumption and utility costs
-
Front Access Panel — Easy maintenance without wall removal
-
Top Inlet Connection — Flexible plumbing configuration
-
Universal Compatibility — Works with BTW (back-to-wall) pans and wall-hung toilets
-
WRAS Approved — Certified fittings meet UK water regulations
-
Professional Quality — Built for durability with 2-year manufacturer guarantee
Technical Specification
-
Overall Dimensions: H 930mm x W 460mm x D 104mm
-
Height Excluding Pipe: 452mm
-
Flush Volume: 6L/4L dual flush
-
Inlet Position: Top inlet
-
Access: Front accessible for servicing
-
Installation: Suitable for fixing into supporting wall (not compatible with WC furniture units)
-
Certification: WRAS approved components
-
Guarantee: 2 Years
-
EAN: 5054913515248
-
SKU: BGBP109017
Compatible Flush Plates
A flush plate is required and sold separately. This cistern is compatible with the following flush plates:
Also Available — WC Frames with Integrated Cistern
If you need a full wall-hung WC frame with cistern included, see our frame options:
Complete the Installation
Frequently Asked Questions
Is this cistern compatible with WC furniture units?
No — this cistern is designed to be fixed directly into a supporting wall. It is not compatible with WC furniture units. For furniture-housed cisterns, please contact us at customerservice@bubblegumbathrooms.co.uk for advice.
Which flush plates are compatible?
This cistern is compatible with both the Round Flush Plate (BGBP109021) and the Rectangle Flush Plate (BGBP109027), each available in Chrome, White, Black, Brushed Brass, and Brushed Bronze.
What is the difference between this cistern and the WC frames?
This slim cistern (BGBP109017) is a cistern only — it does not include a structural frame and is designed to be installed into an existing wall void or behind a false wall. The WC frames (BGBP109014 and BGBP109016) include both the structural frame and the cistern in one unit, and are designed to be fixed to a solid wall to support a wall-hung toilet pan.
Can I order if the item shows as out of stock?
Yes — this product can be ordered even when showing as out of stock, and we'll fulfil your order as soon as stock is available. If you need a specific delivery timeframe, please contact us at customerservice@bubblegumbathrooms.co.uk before ordering.
