Description
Aqua Elegance Touchscreen Thermostat — Chrome Surround — Electric Underfloor Heating — 3600W — 50-Year Guarantee

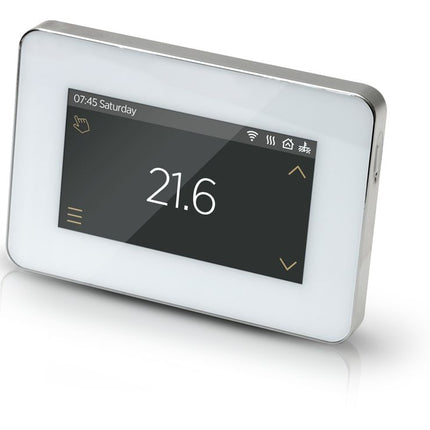

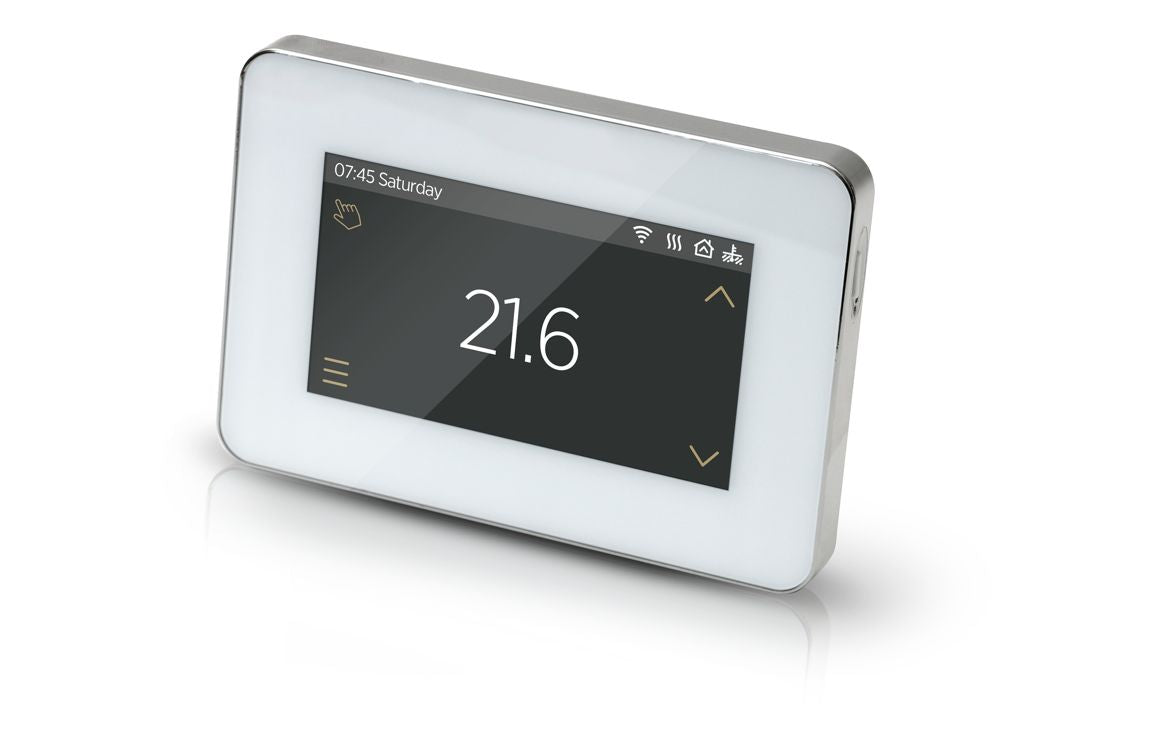

The Aqua Elegance Touchscreen Thermostat combines a premium touchscreen interface with a sleek chrome surround for a contemporary finish in modern bathrooms. With a 3600W / 16A switching capacity, it is compatible with the full range of Aqua Elegance 150W heating mats and cables. Advanced features include window open detection, holiday mode, and frost protection — providing intelligent energy management beyond basic programmable control. The included 3m floor sensor probe monitors floor temperature directly. Programmable on a 5/2-day or 7-day schedule. Backed by a 50-year lifetime guarantee.
⚠️ Electrical installation must be carried out by a qualified electrician. Thermostat wiring must be completed by a Part P registered electrician in accordance with BS 7671 (IET Wiring Regulations). Not suitable for use with wet (hydronic) underfloor heating systems.
Key Features
-
Touchscreen interface — ultra-sleek, minimal design; intuitive touch control
-
Chrome surround — premium contemporary styling; coordinates with chrome bathroom fittings
-
3600W / 16A switching capacity — compatible with Aqua Elegance 150W heating mats up to 24m²
-
7-day or 5/2-day programming — set different schedules for weekdays and weekends
-
Window open detection — automatically reduces heating when a window is opened; saves energy
-
Holiday setting — extended absence mode; maintains frost protection while you’re away
-
Frost protection — prevents the floor from dropping below a set minimum temperature
-
Air or floor temperature control — monitor ambient room temperature or floor surface temperature
-
3m floor sensor probe included — monitors floor temperature directly beneath the floor covering
- 50-year lifetime guarantee
Technical Specification
-
Brand: Aqua Elegance
-
SKU: BGBP108847
-
EAN: 5054913527616
-
Type: Touchscreen thermostat for electric underfloor heating
-

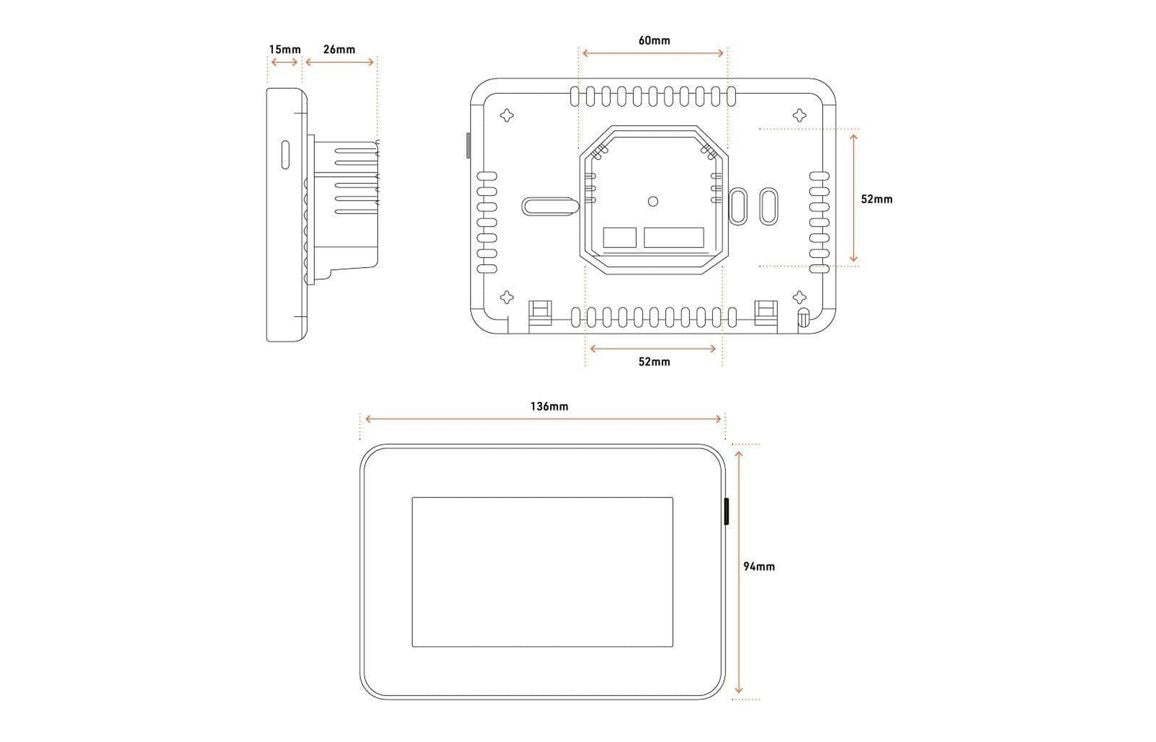

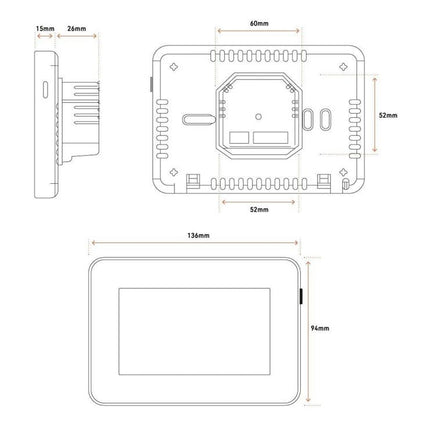

Dimensions: 94mm × 136mm × 15mm
-
Switching capacity: 3600W / 16A
-
Supply voltage: 230V AC
-
Sensor probe: 3m floor sensor (included)
-
Temperature control: Air (ambient) or floor temperature
-
Programming: 5/2-day or 7-day schedules
-
Special functions: Window open detection, holiday setting, frost protection
-
Finish: Chrome surround
-
Compatible with: Electric (resistive) underfloor heating systems only
-
Guarantee: 50 years (lifetime)
What’s Included
- Aqua Elegance touchscreen thermostat with chrome surround
- 3m floor sensor probe
- Installation instructions
- Guarantee documentation
Compatible Underfloor Heating Products
Frequently Asked Questions
What size underfloor heating mat can this thermostat control?
This thermostat has a switching capacity of 3600W / 16A. At 150W per m², it can control a heating mat or cable of up to 24m² (3600W ÷ 150W = 24). It is compatible with all Aqua Elegance mat sizes — 1, 2, 3, 7, and 10m². If combining multiple mats on a single circuit, ensure the total wattage does not exceed 3600W.
What is window open detection?
Window open detection is an energy-saving feature that monitors the rate of temperature drop in the room. If the temperature falls rapidly — as it would when a window or door is opened — the thermostat automatically suspends heating for a set period to avoid wasting energy heating a room with an open window. Once the temperature stabilises, normal heating resumes. This is particularly useful in bathrooms where windows are opened for ventilation after showering.
What is the holiday setting?
The holiday setting allows you to programme an extended absence period — for example, 14 days while you are on holiday. During this time, the thermostat suspends the normal heating schedule but maintains frost protection, ensuring the floor does not drop below a set minimum temperature. When the holiday period ends, the thermostat automatically returns to the normal programme.
What is frost protection?
Frost protection is a safety feature that prevents the floor temperature from dropping below a set minimum — typically around 5°C — regardless of the programmed schedule. This protects the floor covering and any pipework from damage in very cold conditions, and is particularly useful in rooms that are unheated for extended periods.
What is the difference between this and the Digital Programmable Thermostat?
Both thermostats are compatible with the same Aqua Elegance underfloor heating systems and carry the same 50-year guarantee. The Digital Programmable Thermostat (£92) uses a digital display with push-button controls and includes an adaptive start learning function. The Touchscreen Thermostat (this product, £135) features a premium touchscreen interface with chrome surround and adds window open detection, holiday mode, and frost protection. Choose the digital model for straightforward reliable control; choose this model for a premium finish and advanced energy-saving features.
What is the difference between air and floor temperature control?
In floor temperature mode, the thermostat uses the included 3m floor sensor probe to monitor the temperature of the floor surface directly. The system switches off when the floor reaches the set temperature — recommended for most installations as it protects the floor covering from overheating. In air temperature mode, the thermostat uses its internal sensor to monitor the ambient room temperature, switching the heating on and off to maintain the room at the set temperature.
Is this thermostat suitable for wet (hydronic) underfloor heating?
No — this thermostat is designed for electric (resistive) underfloor heating systems only. It is not suitable for wet (water-based/hydronic) underfloor heating systems.
What guarantee does this thermostat carry?
The Aqua Elegance touchscreen thermostat carries a 50-year lifetime guarantee against manufacturing defects when installed in accordance with the installation instructions by a qualified electrician.
Can I order if the item shows as out of stock?
Yes — this product is available to order even when stock shows as zero. Please allow additional lead time and contact us on 01603 381095 to confirm availability.
