Description

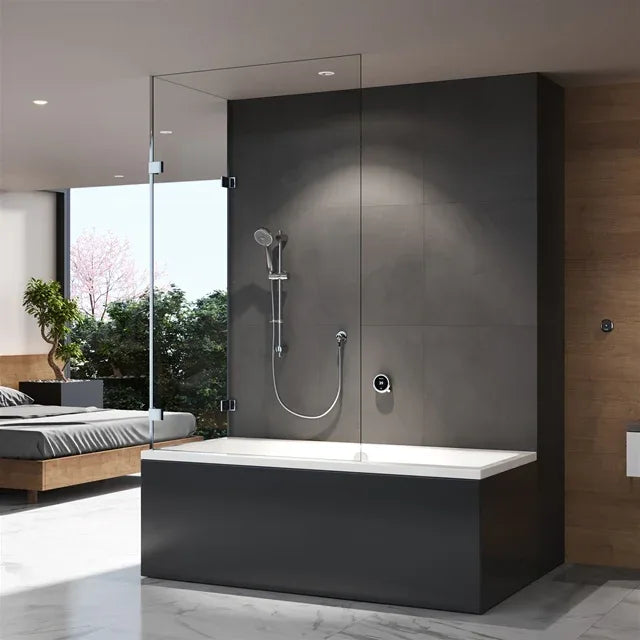

The Aqualisa Quartz Touch Concealed Divert Digital Shower with Bath Filler & Slide Rail is the ultimate smart shower/bath combination system. The digital diverter switches between the bath filler and the adjustable slide rail handset — filling the bath or showering, all controlled from one touch interface, Wi-Fi app, or Alexa and Google Home. The Aqualisa SmartValve™ is sited remotely for a completely clean bathroom installation.
Don’t forget your wireless remote — available separately.
Bath Filler & Shower in One System
The integrated digital diverter switches seamlessly between the bath filler and the slide rail handset — giving you smart control over both your bath and shower from a single concealed valve. Pre-set your preferred bath temperature via the app and step away while it fills to exactly the right temperature.

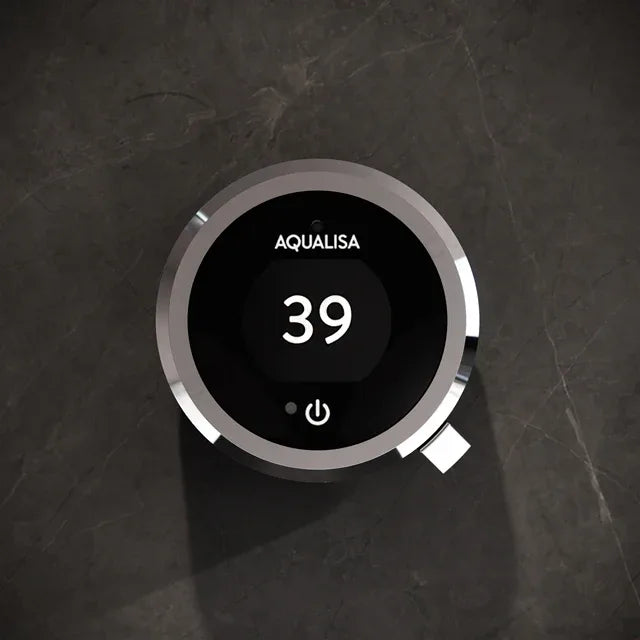

One-Touch Smart Control
The touch-sensitive controller provides one-touch start/stop operation with an LED display that indicates when your pre-selected temperature has been reached — for both showering and bath filling.
Wi-Fi & App Compatible
Connect via Wi-Fi for full smartphone control through the Aqualisa app. Features include remote start/stop, shower timer, user dashboard, usage tracker, and help & support. Also compatible with Alexa and Google Home smart home devices.
Aqualisa SmartValve™
The concealed Aqualisa SmartValve™ can be sited remotely — in a loft, airing cupboard, or under bath — keeping all mechanical components out of the bathroom for a completely clean installation. Connections are 15mm push-fit throughout.
Key Features
- Bath filler outlet — smart temperature-controlled bath filling
- Digital diverter — switch between bath filler and slide rail handset
- One-touch start/stop control
- LED display — shows when target temperature is reached
- Wi-Fi & app compatible (iOS & Android)
- Alexa & Google Home compatible
- App: start/stop, timer, dashboard, usage tracker
- Aqualisa SmartValve™ — remote siting in loft, airing cupboard, or under bath

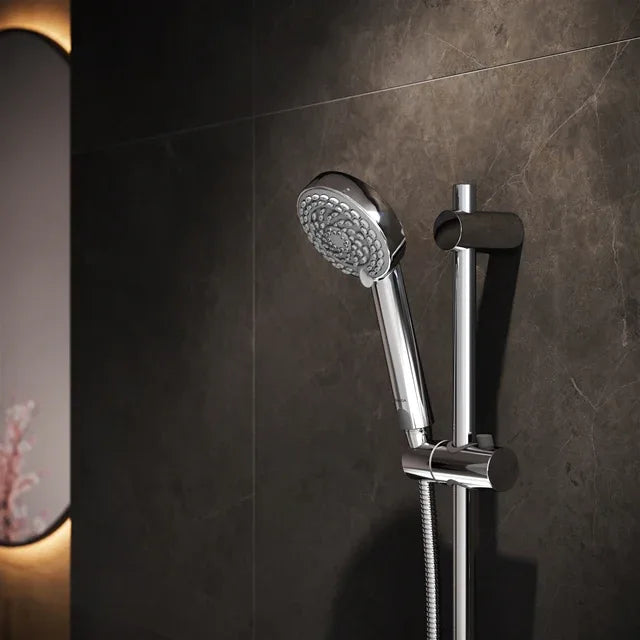

- Adjustable slide rail with 90mm handset (4 spray patterns) included
- Flow rate: 10–20 L/min
- CE, UKCA & BEAB approved
- 5-year guarantee (shower unit)
- 2-year guarantee (shower head & kit)
Specifications
- Min. pressure: 0.1 bar (Gravity) / 1 bar (HP/Combi)
- Max. pressure: 1 bar (Gravity) / 5 bar (HP/Combi)
- Inlet connections: 15mm push-fit
- Outlet connections: 15mm push-fit
- Valve inlet centres: 48mm
- Inlet supply: Hot right, cold left
- SmartValve™ siting: Loft, airing cupboard, under bath
- Cold inlet temp: 1–15°C
- Hot inlet temp: max 65°C
- Flow rate: 10–20 L/min
- Finish: Chrome
- Approvals: CE, UKCA, BEAB
- Brand: Aqualisa
- Range: Quartz Touch
- SKU: QZST.A1.BV.DVBTX.23
- Guarantee: 5yr (unit) / 2yr (head & kit)
Professional installation by a qualified plumber is required. SmartValve™ must be sited in an accessible location for servicing. Bath filler outlet requires appropriate bath installation.
