Description

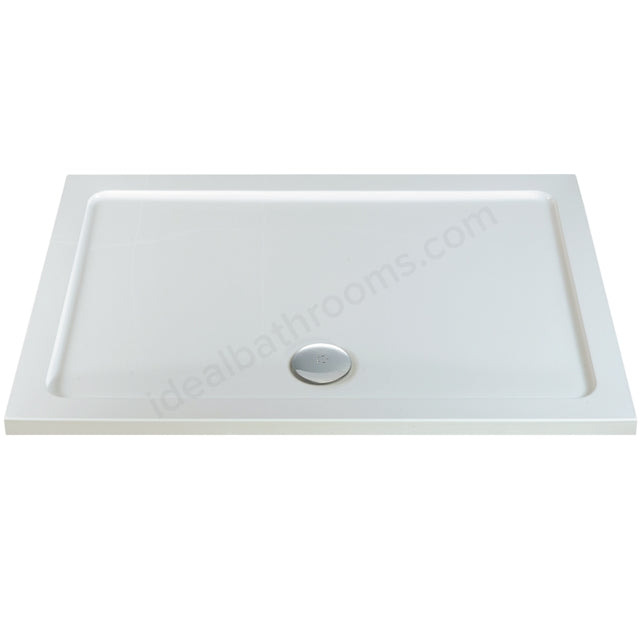

The MX Elements Anti Slip Rectangle Shower Tray combines the clean, low-profile look of the Elements range with a built-in anti-slip surface — ideal for family bathrooms, accessible wet rooms, and anywhere extra underfoot safety is a priority. Available in lengths from 800mm to 1700mm and widths from 700mm to 900mm.
⚠️
UK Mainland Delivery Only. These trays are delivered direct from our supplier to UK mainland addresses only. We are unable to ship to Northern Ireland, Scottish Highlands, offshore islands, or internationally. Please
contact us to confirm delivery eligibility before ordering.
Key Features
- Built-in anti-slip surface — enhanced safety underfoot, no mat required
- Low profile 40mm height — sleek, modern look with easy step-in access
- Rectangle format — ideal for walk-in showers, wet rooms, and larger enclosures
- 90mm waste outlet — compatible with standard shower waste fittings
- Waste position: centre of front edge, centred lengthways, 190mm from front edge to centre
- Top lip: 65mm wide all round
- White gloss finish — timeless and easy to clean
- 23 common size combinations — lengths 800–1700mm, widths 700–900mm
- Additional sizes available to order — contact us for lead time and pricing
- MX Trays — a trusted UK manufacturer with decades of shower tray expertise
Available Sizes & Prices
The sizes listed are our most popular combinations, held for fast turnaround. If you can't find the size you need, get in touch — additional sizes can be ordered on a slightly longer lead time and we'll confirm the ETA for your preferred dimensions.
-
800mm length: 700mm width
-
900mm length: 700, 760, 800mm widths
-
1000mm length: 800, 900mm widths
-
1100mm length: 800mm width
-
1200mm length: 700, 800, 900mm widths
-
1300mm length: 800, 900mm widths
-
1400mm length: 900mm width
-
1500mm length: 800, 900mm widths
-
1600mm length: 700, 760, 800, 900mm widths
-
1700mm length: 700, 760, 800, 900mm widths
Technical Specification
| Brand |
MX Trays |
| Range |
Elements |
| Shape |
Rectangle |
| Colour |
White |
| Tray Height |
40mm |
| Top Lip Width |
65mm (all round) |
| Waste Hole Size |
90mm |
| Waste Position |
Centre of front edge, centred lengthways, 190mm from front edge to centre |
| Anti Slip |
Yes — built-in anti-slip surface |
| Available Lengths |
800, 900, 1000, 1100, 1200, 1300, 1400, 1500, 1600, 1700mm |
| Available Widths |
700, 760, 800, 900mm (not all widths available at every length) |
| Delivery |
UK Mainland only (supplier direct delivery) |
| Country of Origin |
GB (United Kingdom) |
| HS Code |
3922.90 |
You'll Also Need
Complete the MX Elements Range
Frequently Asked Questions
What's the difference between this and the standard rectangle tray?
This tray has a built-in anti-slip surface for enhanced safety underfoot — no separate mat needed. The standard MX Elements Rectangle Tray has a smooth finish. Both share the same 40mm low-profile height and 90mm waste position.
Do you deliver to my area?
These trays are delivered direct from our supplier and are available to UK mainland addresses only. We cannot deliver to Northern Ireland, Scottish Highlands, offshore islands, or internationally. If you're unsure whether your address qualifies, please contact us before ordering.
What if I can't find the size I need?
The sizes listed are the most common combinations, stocked for fast turnaround. If your preferred size isn't shown, get in touch — additional sizes can be ordered on a slightly longer lead time and we'll confirm the ETA for you.
What waste do I need for this tray?
This tray has a 90mm waste outlet, positioned at the centre of the front edge, centred lengthways, 190mm from the front edge. Browse our Shower Tray Wastes collection for compatible options.
Is the waste included?
No — the waste is sold separately. Please ensure you select a 90mm waste to match this tray.
Can I order if the item shows as out of stock?
Yes — you can still place your order and we will fulfil it as soon as stock is available. If you need a specific delivery date, please contact us before ordering.
What enclosure will fit this tray?
You'll need a rectangle shower enclosure or walk-in panel matching your chosen tray dimensions. Ensure the enclosure is designed for a low-profile 40mm tray.
