Description

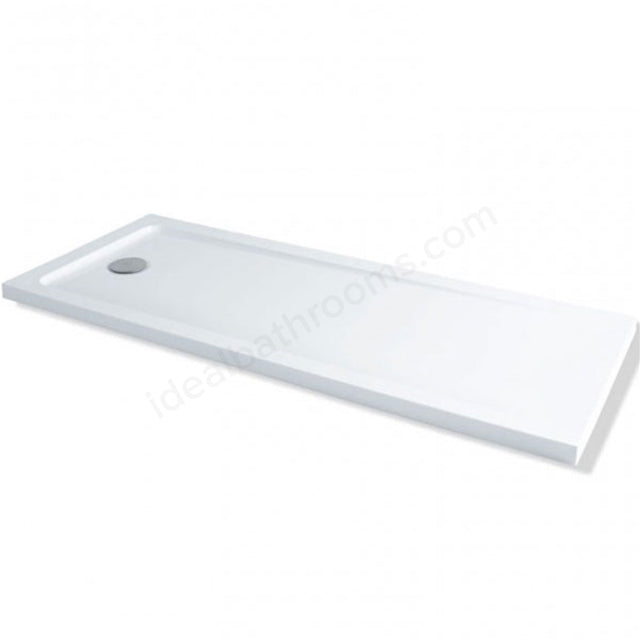

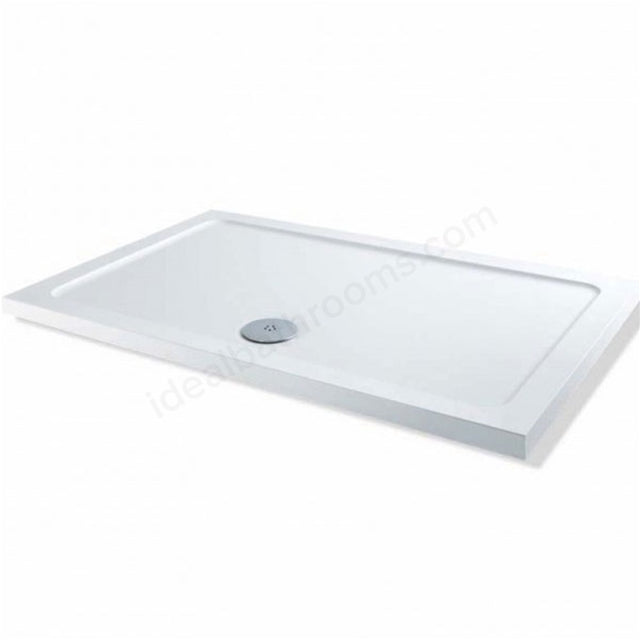

The MX Elements Rectangle Shower Tray is a versatile, low-profile tray built for walk-in showers, wet rooms, and larger bathroom layouts. At just 40mm high, it creates a sleek, contemporary shower floor with easy step-in access. With lengths from 800mm to 2000mm and widths from 700mm to 900mm across 43 size combinations, it offers one of the widest ranges available — the go-to choice when a standard square tray won’t do. Made in the UK by MX Trays.
⚠️ Delivery Notice: These trays are delivered direct from our supplier to UK mainland addresses only. We are unable to ship to Northern Ireland, Scottish Highlands, offshore islands, or internationally. Please contact us at customerservice@bubblegumbathrooms.co.uk or call 01603 381095 to confirm delivery eligibility before ordering.
Key Features
-
40mm Low Profile: Sleek, modern look with easy step-in access
-
Rectangle Format: Ideal for walk-in showers, wet rooms, and larger enclosures
-
43 Size Combinations: Lengths 800–2000mm, widths 700–900mm
-
90mm Waste Outlet: Centre of front edge, centred lengthways, 190mm from front edge to centre
-
65mm Top Lip: All round
-
White Gloss Finish: Timeless and easy to clean
-
Smooth Finish: Not anti-slip — see the Anti Slip Rectangle version if required
-
Additional sizes available to order — contact us for lead time and pricing
-
Made in the UK by MX Trays
Available Sizes
The sizes listed are the most popular combinations, held for fast turnaround. If your preferred size isn’t shown, contact us — additional sizes can be ordered on a slightly longer lead time.
-
800mm length: 700, 760mm widths
-
900mm length: 700, 760, 800mm widths
-
1000mm length: 700, 760, 800, 900mm widths
-
1100mm length: 700, 760, 800, 900mm widths
-
1200mm length: 700, 760, 800, 900mm widths
-
1300mm length: 700, 760, 800, 900mm widths
-
1400mm length: 700, 760, 800, 900mm widths
-
1500mm length: 700, 760, 800, 900mm widths
-
1600mm length: 700, 760, 800, 900mm widths
-
1700mm length: 700, 760, 800, 900mm widths
-
1800mm length: 700, 760, 800, 900mm widths
-
2000mm length: 800, 900mm widths only
Technical Specification
-
Brand: MX Trays
-
Range: Elements
-
Shape: Rectangle
-
Colour: White
-
Tray Height: 40mm
-
Top Lip Width: 65mm (all round)
-
Waste Hole Size: 90mm
-
Waste Position: Centre of front edge, centred lengthways, 190mm from front edge to centre
-
Anti-Slip: No (smooth finish)
-
Available Lengths: 800, 900, 1000, 1100, 1200, 1300, 1400, 1500, 1600, 1700, 1800, 2000mm
-
Available Widths: 700, 760, 800, 900mm (not all widths available at every length)
-
Country of Origin: United Kingdom
-
HS Code: 3922900000
You’ll Also Need
Complete the MX Elements Range
Frequently Asked Questions
Do you deliver to my area?
These trays are delivered direct from our supplier and are available to UK mainland addresses only. We cannot deliver to Northern Ireland, Scottish Highlands, offshore islands, or internationally. Please contact us on 01603 381095 or email customerservice@bubblegumbathrooms.co.uk before ordering if you are unsure whether your address qualifies.
What if I can’t find the size I need?
The sizes listed are the most common combinations, stocked for fast turnaround. If your preferred size isn’t shown, contact us on 01603 381095 or email customerservice@bubblegumbathrooms.co.uk — additional sizes can be ordered on a slightly longer lead time and we’ll confirm the ETA for you.
What waste do I need for this tray?
This tray has a 90mm waste outlet, positioned at the centre of the front edge, centred lengthways, 190mm from the front edge to the centre. Browse our Shower Tray Wastes collection for compatible options.
Is the waste included?
No — the waste is sold separately. Please ensure you select a 90mm waste to match this tray.
Are all length and width combinations available?
Most lengths are available in 700, 760, 800, and 900mm widths. The 2000mm length is only available in 800 and 900mm widths. If you need a combination not listed, please contact us and we’ll confirm availability and lead time.
Is there an anti-slip version available?
Yes — the MX Elements Anti Slip Rectangle Shower Tray is available in 23 size options from 800–1700mm with a built-in anti-slip surface.
Is this tray anti-slip?
This version has a smooth finish and is not anti-slip. If you need a built-in anti-slip surface, see our Anti Slip Rectangle Shower Tray.
Do I need shower tray legs?
Legs are not required for solid floor installations — the tray can be bedded directly onto a solid, level floor. For timber or suspended floors, we recommend the Universal Shower Tray Legs (8 Pack) to provide a stable, adjustable base.
What enclosure will fit this tray?
You will need a rectangle shower enclosure or walk-in panel matching your chosen tray dimensions. Ensure the enclosure is designed for a low-profile 40mm tray. Contact us on 01603 381095 if you need help selecting a compatible enclosure.
Can I order if the item shows as out of stock?
Yes — you can place an order even when stock shows as zero. Contact us on 01603 381095 or email customerservice@bubblegumbathrooms.co.uk to confirm lead time before ordering.
