Description
STEP 1 - Choose your tray
STEP 2 - Choose Your Waste (You are Here)
The Aqua-Dec EasyFit features a large central 360° rotating drain plate to help circumnavigate all potential floor joists and underfloor obstructions. The spoked structure underside increases strength and provides the ideal surface for bonding to concrete.
Drains,(Option 1 & 2 Included with Tray Price)

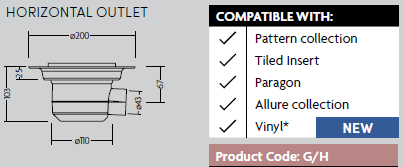

1- Gravity Drain with Horizontal Outlet, Supplied With Slotted Drain Grate

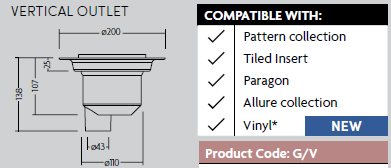

2- Gravity Drain with Vertical Outlet, Supplied With Slotted Drain Grate.
The Gravity Drain is the most popular drain type to be used. Compatible with all Aqua-Dec floor formers within your existing
floor structure or easily incorporated into a new build.
• Specifically designed to secure WaterGuard membrane into place using a clamp, guaranteeing a secure watertight seal at
the drainage point.
• The patented height adjustment technology allows adaptability between 6-26mm to suit various tile depths. Height
adjustment for Tiled Insert, Paragon and Allure collection are between 14-24mm.
• The Gravity Drain for Aqua-Dec EasyFit has a flow rate of 36l/min depending on the drain top.
• The 50mm water seal of the Gravity Drain prevents odours escaping from the drainage system and features a 43mm solvent
weld pipe connection.
• Specially designed hook and removable bucket included for easy cleaning
3- Slim Drain, Supplied with slotted Drain Grate
The Slim+ Drain is designed for when the floor structure below is restricted in depth.
• Specifically designed to secure WaterGuard membrane into place using a clamp, guaranteeing a secure watertight seal at
the drainage point.
• The patented height adjustment technology allows adaptability between 6-26mm to suit various tile depths.
• The Slim+ Drain has a potential flow rate of up to 32 l/min.
• Specially designed hook and hair trap included which is easy to remove and clean without affecting the membrane
4- Pumped Drain, Supplied With slotted Drain Grate
The Pumped Drain is the ideal solution for unbreachable floors as it evades any limitations that a floor structure may bring.
• Specifically designed to secure WaterGuard membrane into place using a clamp, guaranteeing a secure watertight seal at
the drainage point.
• The patented height adjustment technology allows adaptability between 6-26mm to suit various tile depths.
• The Pumped Drain must be used with a shower waste pump to discharge showering water in areas gravity drainage is not
an option, and is fully compatible with Whale pumps.
• The Pumped Drain flow rate is dependent on your chosen shower waste pump; 12l/min (Instant Match Premium) and
20l/min (Dry Deck 20).
• Specially designed hook included for easy cleaning.
Install WaterGuard with any Impey Aqua-Dec and receive A Lifetime Watertight Guarantee. Waste Sold Seperately
