Description

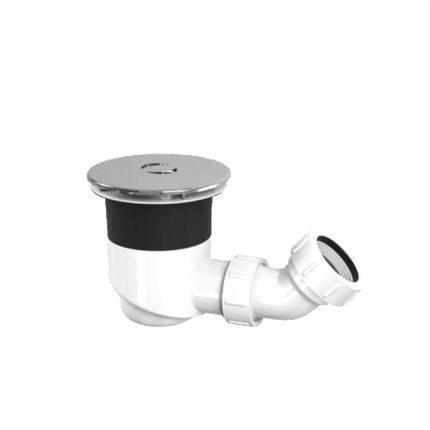

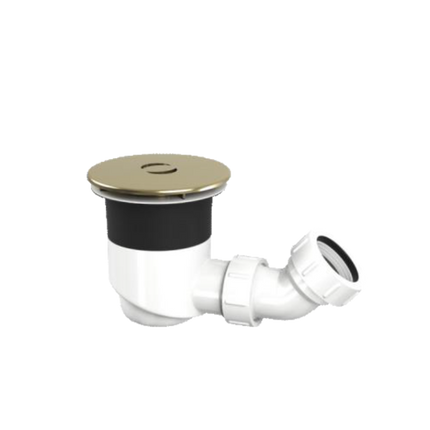

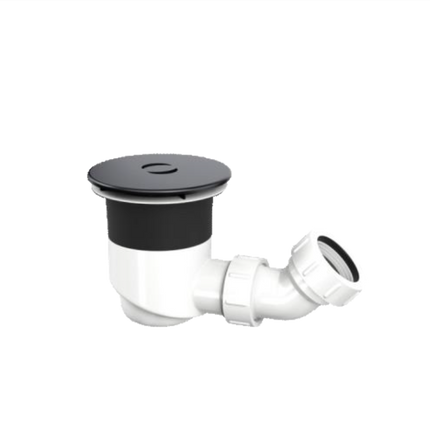

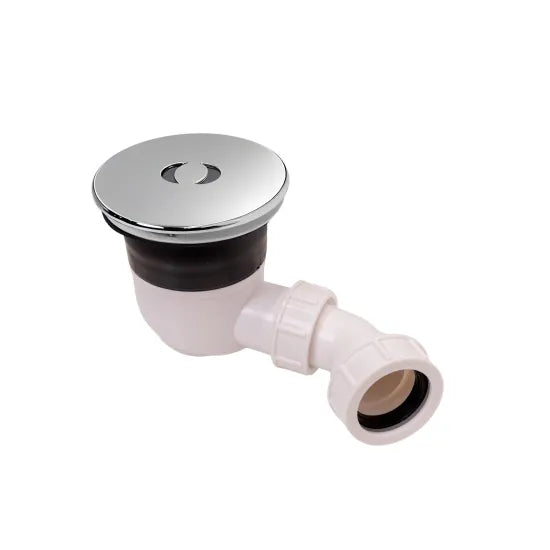

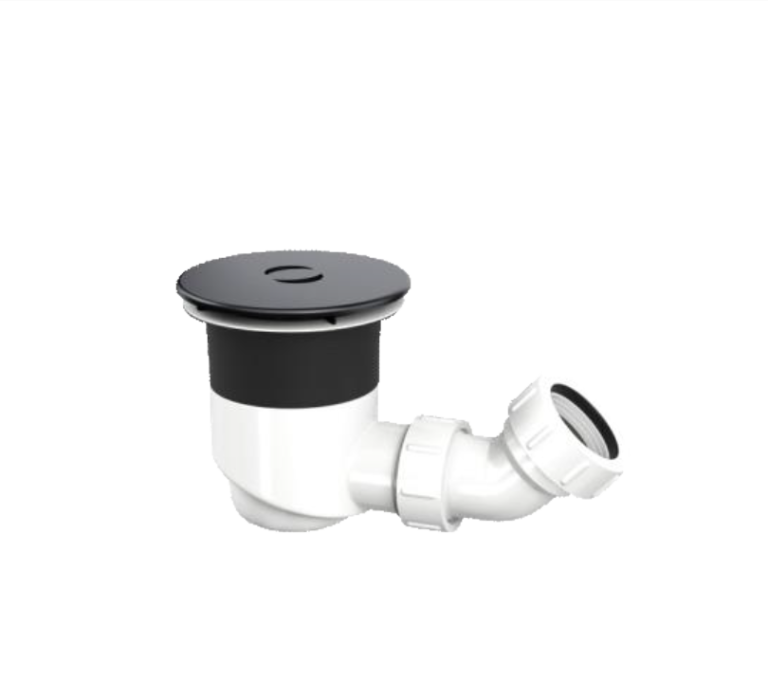

TOP-FIX Shower Tray Waste — 90mm — Top-Fix Installation — Chrome, Matt Black & Brushed Brass
The TOP-FIX Shower Tray Waste is an innovative 90mm shower waste designed to make installation easier. The waste body is secured to the tray entirely from above — no underneath access required to fix the fitting to the tray. Under-tray access is still needed to connect the waste pipe outlet. The removable water seal trap delivers reliable fast-flow drainage. Available in Chrome, Matt Black, and Brushed Brass to coordinate with your shower valve, taps, and accessories.
✅ Waste body fixes to tray from above. No underneath access required to secure the fitting to the tray. Note: under-tray access is still required to connect the waste pipe outlet. Ideal for low-profile trays and raised installations where tightening from below is difficult or impossible.
Available Finishes & Prices
-
Chrome — £23 (SKU: PDT-000598 · EAN: 5056634504174)
-
Matt Black — £23 (SKU: PDT-000729 · EAN: 5056634504846)
-
Brushed Brass — £26 (SKU: PDT-000733 · EAN: 5056634504884)
Key Features
-
TOP-FIX installation — waste body secured to tray from above; no underneath access needed to fix the fitting
-
90mm waste opening — standard size; fits the majority of UK shower trays
-
Polypropylene and rubber construction — durable, lightweight body with rubber sealing components
-
Fast-flow drainage — rapid water clearance; prevents pooling
-
Removable water seal trap — prevents odours; easy to remove for cleaning
-
3 finish options — Chrome / Matt Black / Brushed Brass
- Standard UK waste pipe connections
Technical Specification
-
Brand: TOP-FIX
-
Type: Shower tray waste with removable trap
-
Installation: Top-fix — waste body secured from above; pipe connection requires under-tray access
-
Waste opening: 90mm (3.5")
-
Body material: Polypropylene and rubber
-
Trap: Removable water seal trap
-
Drainage: Fast-flow
-
Connection: Standard UK waste pipe fittings
-
Finish options: Chrome / Matt Black / Brushed Brass
-
SKU (Chrome): PDT-000598 · EAN: 5056634504174
-
SKU (Matt Black): PDT-000729 · EAN: 5056634504846
-
SKU (Brushed Brass): PDT-000733 · EAN: 5056634504884
What’s Included
- TOP-FIX shower tray waste body (polypropylene and rubber)
- Removable water seal trap
- Waste cover in chosen finish
- Installation fixings
- Installation instructions
Coordinate Your Shower
Frequently Asked Questions
How does the TOP-FIX installation system work?
The TOP-FIX system allows the waste body to be secured to the shower tray entirely from above — no need to reach underneath the tray to tighten the back nut. This is the key advantage over traditional shower wastes, which require underneath access to fix the fitting to the tray. Please note: under-tray access is still required to connect the waste pipe outlet to your drainage pipework. The TOP-FIX system eliminates the awkward step of fixing the waste to the tray, but standard pipe connection beneath the tray is still needed.
Do I still need access under the tray?
Yes — under-tray access is still required to connect the waste pipe outlet. The TOP-FIX system means you do not need underneath access to secure the waste body to the tray, which is the most awkward part of a traditional installation. However, you will still need to connect the outlet to your waste pipe from below. Ensure you have sufficient access for pipe connection before ordering.
What is the waste body made from?
The waste body is constructed from polypropylene and rubber. Polypropylene provides a lightweight, durable, and corrosion-resistant body, whilst the rubber components provide the sealing and flexibility needed for a watertight installation.
What size shower trays does this waste fit?
This waste fits shower trays with a 90mm (3.5") waste hole. This is the standard waste hole size for the majority of UK shower trays, including low-profile, standard height, and walk-in tray formats. Check your tray specification before ordering if you are unsure.
What finishes are available?
The TOP-FIX shower tray waste is available in Chrome (£23), Matt Black (£23), and Brushed Brass (£26). Select your preferred finish from the dropdown above.
Does this waste include a trap?
Yes — a removable water seal trap is included. The water seal prevents sewer gases from entering the bathroom. The trap is removable for easy cleaning and debris removal.
What waste pipe connection does this use?
The TOP-FIX waste uses standard UK waste pipe fittings. Please confirm the specific outlet size and connection type with the installation instructions supplied, or call us on 01603 381095 before ordering if you need to confirm compatibility with your existing pipework.
Can I order if the item shows as out of stock?
Yes — please contact us on 01603 381095 to check availability and lead time.
