Description

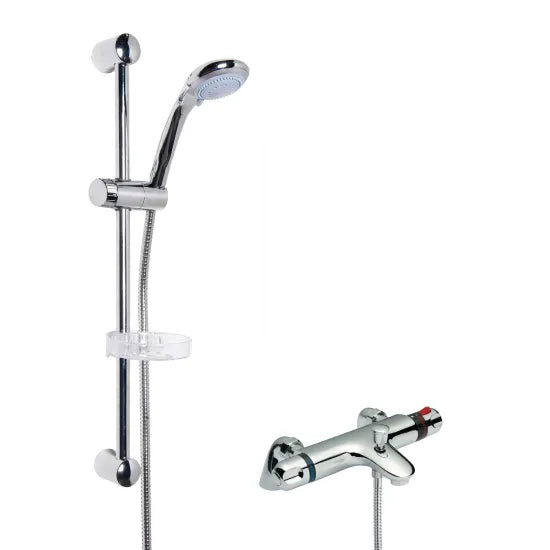

The Nuie Reef Thermostatic Shower Kit provides a complete, ready-to-install single-outlet shower solution in contemporary chrome. The exposed thermostatic valve with ¼-turn cartridge maintains a consistent water temperature throughout your shower, protecting against sudden fluctuations. Includes a multi-function slide rail kit with adjustable bracket, handset, and hose — everything needed for a full showering installation. Brass and ABS construction. Backed by Nuie’s 5-year guarantee.
Key Features
- Complete single-outlet thermostatic shower kit — valve and slide rail included

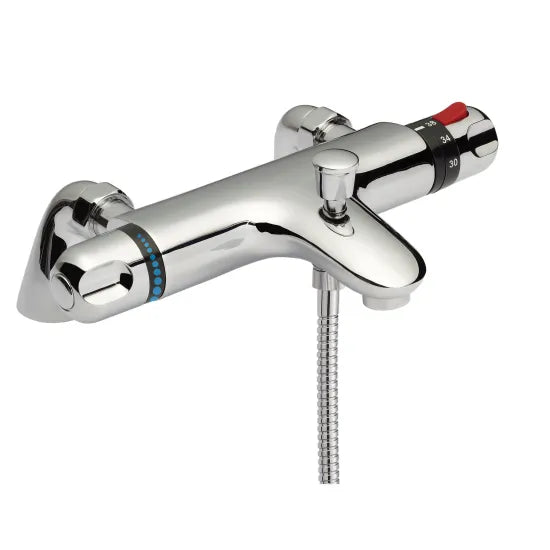

- Exposed thermostatic valve — ¼-turn cartridge for consistent temperature control

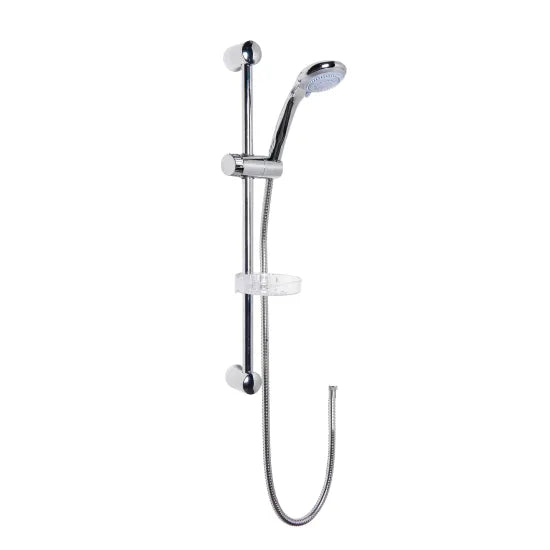

- Multi-function slide rail with adjustable bracket, handset, and hose
- Contemporary chrome finish
- Brass and ABS construction
- Minimum pressure: 1 bar
- 5-year guarantee from Nuie
Technical Specification
-
Finish: Chrome
-
Material: Brass & ABS
-
Type: Thermostatic Exposed Shower Kit — 1 Outlet
-
Valve Type: ¼-turn thermostatic cartridge
-
Mounting: Wall Mounted (exposed)
-

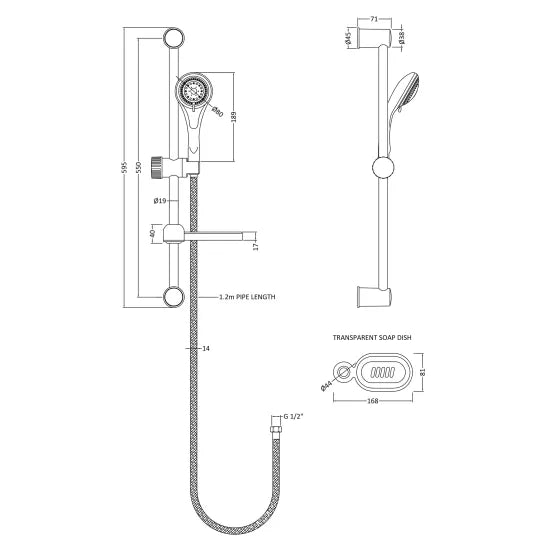

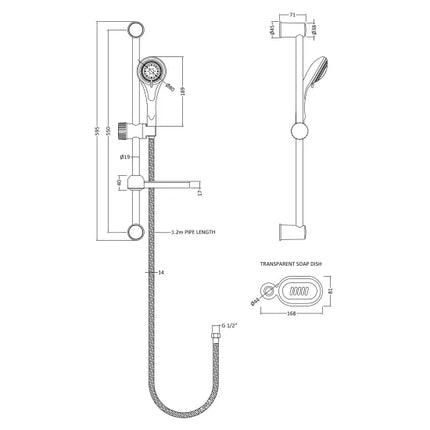

Dimensions: H595 × W168 × D71mm
-
Weight: 3kg
-
Minimum Pressure: 1 bar
-
Flow Rate (0.2 bar): 3 l/min
-
Flow Rate (0.5 bar): 8 l/min
-
Flow Rate (1 bar): 12 l/min
-
Flow Rate (2 bar): 17 l/min
-
Flow Rate (3 bar): 21 l/min
-
Country of Origin: CN
-
Brand: Nuie — Reef Range
-
SKU: SBR93BV1 | EAN: 5056462602462
-
Guarantee: 5 years
What’s Included
- Thermostatic exposed shower valve (pre-installed cartridge)
- Multi-function slide rail with adjustable bracket
- Chrome handset with multiple spray patterns
- Shower hose
- Fixing kit and installation instructions
Frequently Asked Questions
What is included in this kit?
The Nuie Reef Thermostatic Shower Kit includes the exposed thermostatic valve, multi-function slide rail, adjustable bracket, chrome handset, and shower hose. Everything needed for a single-outlet shower installation is in the box.
What is the minimum pressure required?
A minimum of 1 bar is required. Flow rates range from 3 l/min at 0.2 bar up to 21 l/min at 3 bar.
What does thermostatic mean?
A thermostatic valve automatically maintains your set water temperature, protecting against sudden hot or cold fluctuations caused by other water usage in the property — making it safer and more comfortable than a manual shower valve.
Is this suitable for a gravity-fed system?
The minimum operating pressure is 1 bar. Gravity-fed systems typically operate below 1 bar — please confirm your system pressure before ordering, or contact us on 01603 381095 for advice.
What guarantee is included?
Nuie backs the Reef range with a 5-year guarantee.
