Description

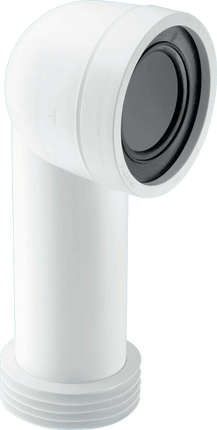

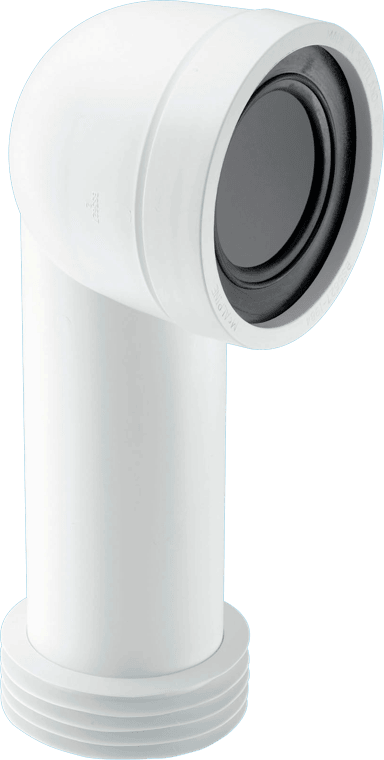

The McAlpine WC-CON8 is a 90° bent rigid WC pan connector with an adjustable length inlet and double seal on the pan connection — delivering a reliable, leak-free fit with all standard WC pan spigots. The 110mm outlet connects to both PVC-U and cast iron soil pipe, making it suitable for the vast majority of UK domestic installations. Manufactured in durable polypropylene and compliant with BS 5627:1984 and DIN 1389:2015-12.
Key Features
- 90° bend — ideal for pans set at right angles to the soil pipe
- Adjustable length inlet for flexible positioning
- 97–107mm inlet suits all standard WC pan spigots
- Double seal on pan connection for a secure, leak-free fit
- 4″/110mm outlet — available with finned end (PVC-U/cast iron internal diameter) or plain end (110mm soil/underground pipe fittings)
- Durable polypropylene construction
- Complies with BS 5627:1984 and DIN 1389:2015-12
Technical Specification
-
SKU: WC-CON8
-
Barcode: 503484006097
-
Inlet: 97–107mm (adjustable)
-
Outlet: 4″/110mm
-
Angle: 90°
-
Material: Polypropylene
-
Standards: BS 5627:1984 / DIN 1389:2015-12
-
Weight: 0.2kg
-
Brand: McAlpine
More McAlpine WC Pan Connectors
Need a different angle, length, or flexibility? Browse the full McAlpine WC connector range:
Frequently Asked Questions
What is the difference between the WC-CON8 and the WC-CON8E?
The WC-CON8E has an extended inlet for additional reach between the pan spigot and the soil pipe. If you need extra length, choose the WC-CON8E. For a standard 90° connection, the WC-CON8 is the right choice.
What does the double seal do?
The double seal on the pan connection creates a more secure, leak-free joint between the connector and the WC pan spigot — reducing the risk of seepage even with minor misalignment during installation.
What pan spigot sizes does this fit?
The adjustable inlet fits all standard WC pan spigots in the 97–107mm range, covering the vast majority of UK toilet pans.
What soil pipe does the outlet connect to?
The 110mm outlet is available with a finned end (for 4″/110mm PVC-U and cast iron soil pipe internal diameters) or a plain end (for 110mm soil or underground pipe fittings). Please confirm which outlet type you require before ordering.
Can I order if the item shows as out of stock?
Yes — we can order this product for you even if it shows as out of stock. Lead times may vary; please contact us at customerservice@bubblegumbathrooms.co.uk for availability.
