Description

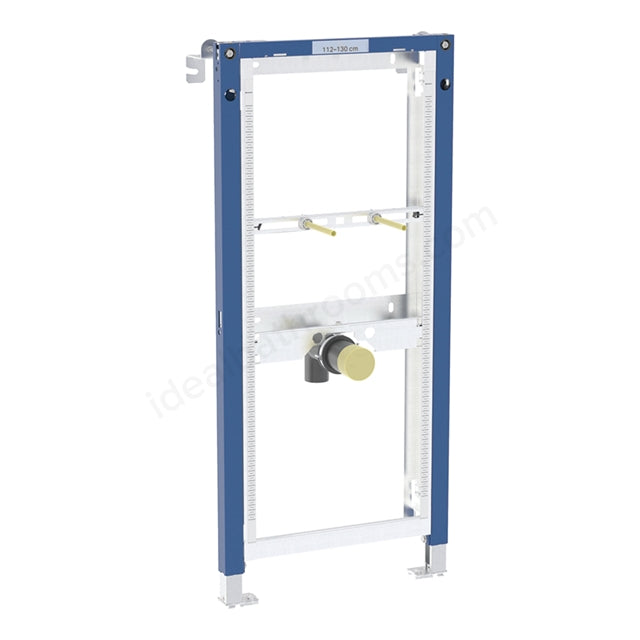

The Geberit Duofix Urinal Frame (111.671.00.2) is a height-adjustable, self-supporting steel installation frame designed for wall-hung waterless urinals and 1-litre flush urinals. Part of Geberit's 2025 Duofix range, it is compatible with a wide variety of wall constructions — metal stud, timber frame, masonry, and Geberit Duofix system walls — and is pre-configured for connection to the Geberit Preda waterless urinal. The powder-coated steel frame is corrosion-resistant and statically self-supporting, with tool-free adjustable crossbars and height-adjustable urinal fasteners for precise, flexible installation.
Key Features
-
Height-adjustable 112–130cm — suits a range of urinal models and installation heights
-

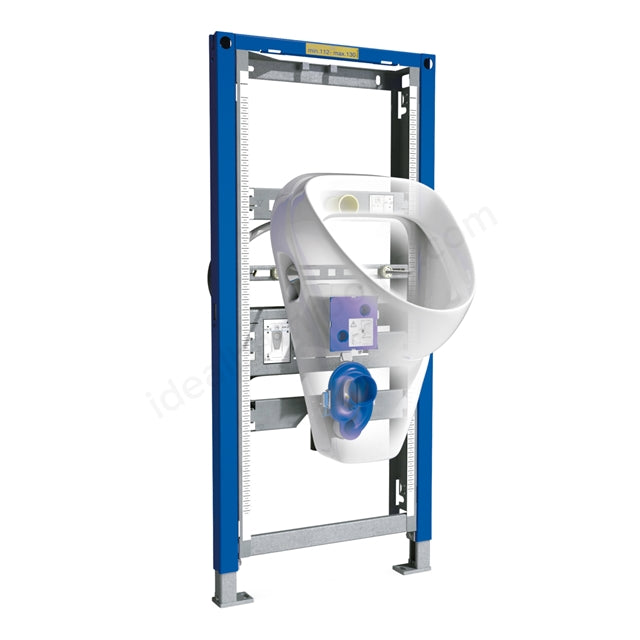

Waterless urinal ready — connection positions for Geberit Preda waterless urinal pre-prepared
-
Compatible with 1-litre urinals — can be fitted with accessories for Laufen Lema 1L Compact and Tamaro-VS
-
Self-supporting steel frame — powder-coated and corrosion-resistant; no additional wall support required
-
Versatile wall compatibility — suits metal/wood frame walls, masonry, Duofix system walls, and partition walls
-
Floor construction depth 0–25cm — accommodates a range of floor build-ups
-
Tool-free crossbar adjustment — centring marks for accurate positioning
-
Pull-out plate for lateral fastening — for fixing to metal/wood profiles or Duofix system studs
-
Rotating foot plates — suitable for UW 50 and UW 75 U profiles
-
Sound-absorbing connection bend fastening — height-adjustable for noise reduction
-
M8 urinal fasteners — width and height adjustable for precise urinal positioning
Technical Specification
-
Brand: Geberit
-
Range: Duofix
-
Part number: 111.671.00.2
-
Type: Wall-hung urinal installation frame
-
Material: Steel (powder-coated, corrosion-resistant)
-

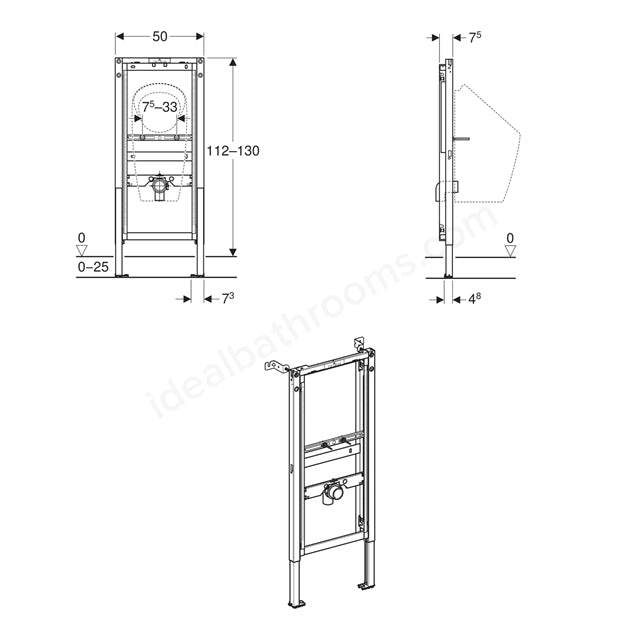

Element height: Adjustable 112–130cm
-
Floor construction depth: 0–25cm
-
Urinal fasteners: M8, width and height adjustable
-
Compatible urinals: Geberit Preda (waterless), Geberit Selva (waterless), Laufen Lema 1L Compact (with accessories), Tamaro-VS (with accessories)
-
Wall types: Metal/wood frame, masonry, Geberit Duofix system, part- or room-height prewalls, room-height partition walls
-
Country of Origin: Germany
What’s Included
- Geberit Duofix urinal frame (111.671.00.2)
- 2 wall anchors
- Connection bend PE-HD Ø50/63mm
- Fastening material
To Order Separately
- Urinal trap (required — not included; note: for Preda and Selva urinals, the trap is included with the urinal)
Frequently Asked Questions
Is this frame compatible with the Geberit Preda waterless urinal?

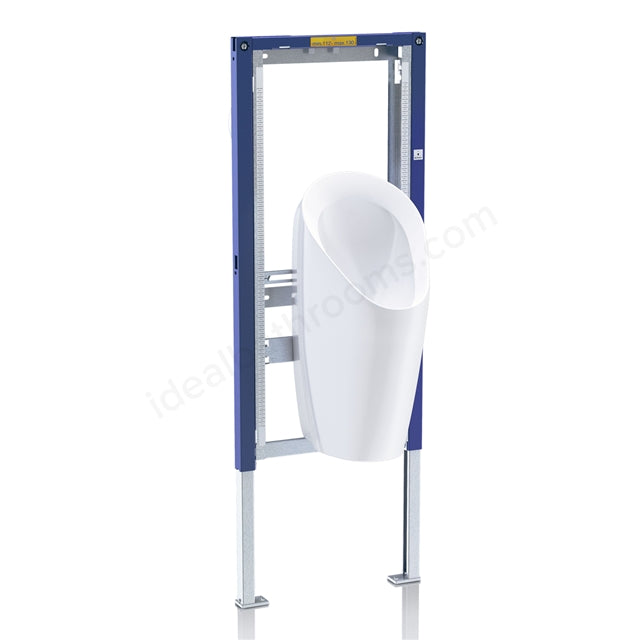

Yes — the frame is pre-configured with connection positions for the Geberit Preda waterless urinal. It is the recommended installation frame for the Preda.
Do I need a separate urinal trap?
For most urinals, a urinal trap must be ordered separately. However, for the Geberit Preda and Selva waterless urinals, the urinal trap is already included in the scope of delivery with the urinal itself.
What wall types is this frame compatible with?
The Duofix urinal frame is compatible with metal and wood frame walls, masonry walls, Geberit Duofix system walls, part- or room-height prewalls, and room-height partition walls. Rotating foot plates accommodate UW 50 and UW 75 U profiles.
Can this frame be used with 1-litre flush urinals?
Yes — with the appropriate accessories, the frame can be used with Laufen Lema 1-litre Compact and Tamaro-VS urinals.
