Description
The Geberit Low-Height Concealed Cistern is the ideal solution for bathrooms where height is restricted — whether fitting into a furniture unit, a low pre-wall installation, or a back-to-wall WC setup. At just 132mm deep and 355mm tall, it slots neatly behind panels and into vanity units where a standard cistern simply won’t fit. Supplied complete with a Type 01 chrome pneumatic dual-flush button, 90° flush pipe bend, and all necessary fixings, this is a complete, ready-to-install package from one of Europe’s most trusted sanitaryware brands. Backed by a 10-year cistern guarantee and 5-year button guarantee.
What’s Included

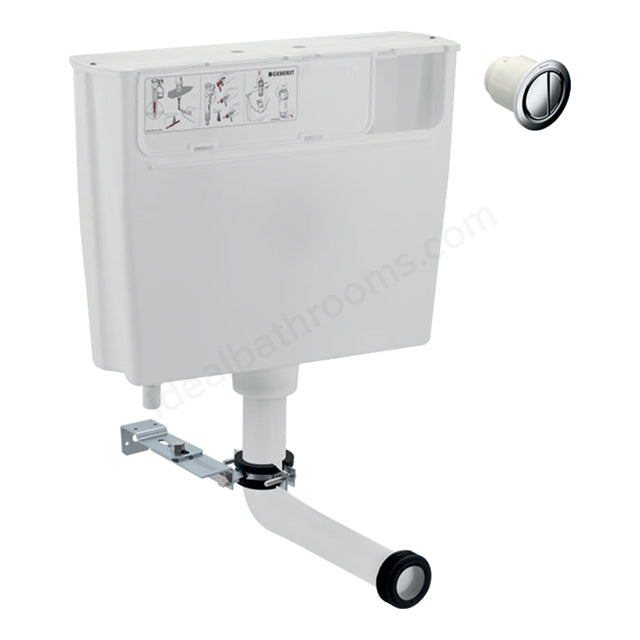

- Geberit low-height concealed cistern
- Type 01 chrome pneumatic dual-flush button
- 90° flush pipe bend (Ø45mm with compression joint)
- Flush volume reduction cup (for 4.0/2.6 litre setting)
- Fixings for flush pipe and actuator
Key Features
-
Low-Height Design — 355mm tall, ideal for furniture units and height-restricted installations
-
Ultra-Slim 132mm Depth — fits into tight pre-wall and furniture cavities
-
Dual Flush — factory set to 5.8/3 litres; reduction cup included for 4.0/2.6 litre setting
-
Pneumatic Flush Button Included — Type 01 chrome-plated dual-flush button supplied
-
Flexible Installation — suitable for drywall, pre-wall, and furniture installations
-
Eco-Friendly — compatible with filtered rainwater/greywater systems
-
EN 14055 Class II Compliant — certified performance standard
- 10-Year Cistern Guarantee / 5-Year Button Guarantee
Technical Specification
-
Brand: Geberit
-
Range: Furniture Cistern
-
SKU / Part Number: 109.724.21.2
-
Type: Low-height concealed cistern
-
Colour: White
-
Material: Plastic
-

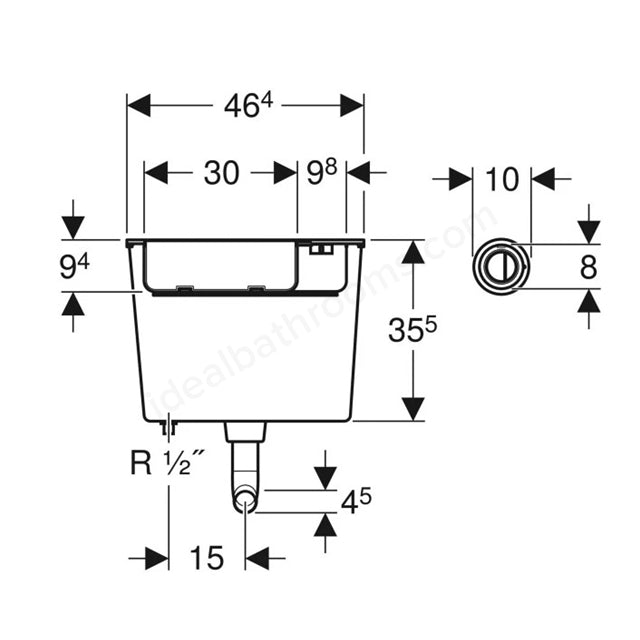

Cistern Width: 465mm
-
Cistern Height: 355mm
-
Cistern Depth: 132mm
-
Flush Volume: 6/3 litres (factory set 5.8/3L; adjustable to 4.0/2.6L with reduction cup)
-
Flush Type: Pneumatic dual flush
-
Flush Button: Type 01 chrome pneumatic (included)
-
Flow Pressure: 0.1 – 10 bar
-
Max Water Temperature: 25°C
-
Water Supply Connection: Bottom left (R ½”)
-
Flush Pipe: Ø45mm with compression joint (90° bend included)
-
Standard: EN 14055 Class II
-
Cistern Guarantee: 10 years
-
Button Guarantee: 5 years
-
Country of Origin: Switzerland
Frequently Asked Questions
What type of WC installation is this cistern designed for?
This cistern is designed for back-to-wall floor-standing WCs installed within furniture units, low pre-wall constructions, or drywall installations where a standard-height cistern won’t fit. The 355mm height and 132mm depth make it specifically suited to these applications.
Is the flush button included?
Yes — the Geberit Type 01 chrome pneumatic dual-flush button is included in the box, along with the 90° flush pipe bend, reduction cup, and all fixings. No additional button purchase is required.
What is the flush volume?
The cistern is factory set to 5.8/3 litres. A reduction cup is included to reduce this to 4.0/2.6 litres for more water-efficient installations. The nominal flush rating is 6/3 litres.
Can this cistern be used with rainwater or greywater?
Yes — this cistern is compatible with filtered used water (rainwater/greywater) systems, making it suitable for eco-conscious installations.
What water pressure is required?
This cistern operates across a wide pressure range of 0.1 to 10 bar, making it compatible with virtually all UK water supply systems including gravity-fed, combi boiler, and unvented systems.
Can I order if the item shows as out of stock?
Yes — we accept orders even when stock shows as zero. Please contact us on 01603 381095 to confirm lead time and availability before ordering.
