Description
Keep your cistern performing at its best with the Geberit Type 380AG Fill Valve — supplied in a retail-ready boxed pack. Designed for bottom entry installation, this high-quality fill valve fits all common close-coupled ceramic cisterns as well as Geberit concealed cisterns, making it an ideal like-for-like replacement without the need to change the whole cistern. WRAS approved and certified to BS 1212-4:2016.
Key Features
-
Delay fill function — cistern only begins filling once the flush valve has fully closed, reducing water waste
- Delay fill easily activated or deactivated — remove the float and reattach with a quarter turn
-
Adjustable filling height — 155–235mm, suitable for a wide range of cistern designs
-
Bottom supply connection G½" — durable plastic threaded nipple for long-lasting performance
-
Backflow prevention Type AG — free outlet with overflow protection
- Fits all common close-coupled ceramic cisterns and Geberit concealed cisterns
- WRAS approved (Section 2075) and certified to BS 1212-4:2016
- 5-year manufacturer’s guarantee
- Supplied in retail-ready boxed packaging
Technical Specification
-
Brand: Geberit
-
Type: 380AG Fill Valve (Bottom Entry)
-
SKU: 136.761.00.1
-
Connection Size: G ½" (bottom supply)
-
Backflow Prevention: Type AG (free outlet)
-

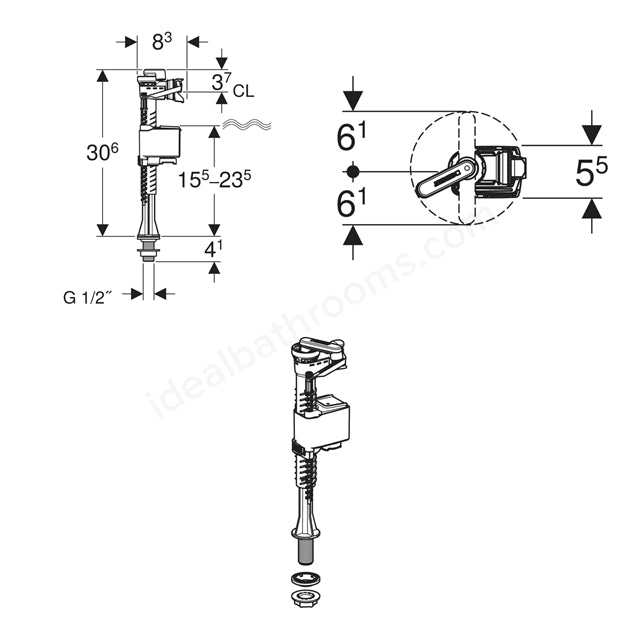

Adjustable Height: 155–235 mm
-
Overall Height: 306 mm
-
Flow Pressure Range: 0.1–10 bar
-
Minimum Flow Pressure: 0.1 bar
-
Flow Rate at 0.5 bar: 0.06 l/s
-
Flow Rate at 3 bar: 0.17 l/s
-
Max. Water Temperature: 25°C
-
Material: Plastic
-
Colour: White & Blue
-
Certifications: WRAS Section 2075, BS 1212-4:2016
-
Guarantee: 5 Years
-
HS Code: 8481200000
Related Products
Frequently Asked Questions
What is the difference between this and the standard 380AG fill valve?
This is the boxed retail pack version of the Geberit 380AG, supplied in point-of-sale packaging. The valve itself is the same — bottom entry, Type AG backflow prevention. If you need the side supply version, see the Geberit Type 380AG Side Supply Fill Valve.
Which cisterns is this compatible with?
This fill valve fits all common close-coupled ceramic cisterns as well as Geberit concealed cisterns. It is suitable as a replacement for older Geberit cisterns and exposed or concealed cisterns from many other manufacturers.
What does the delay fill function do?
The delay fill function prevents the cistern from refilling until the flush valve has fully closed. This reduces unnecessary water waste and can deliver measurable water savings depending on flush volume and pressure.
Is this WRAS approved?
Yes — this fill valve meets WRAS Section 2075 requirements and is certified to BS 1212-4:2016.
What connection size does it use?
The valve uses a G ½" bottom supply connection with a plastic threaded nipple.
