Fire-Rated LED Downlight with Bezel - Switchable 3.5W/5W and Colour Temperature
This versatile fire-rated LED downlight offers exceptional flexibility with face-switchable wattage (3.5W or 5W) and three colour temperature options (3000K, 4000K, 5700K), all adjustable from beneath the ceiling without removing the fitting. Perfect for new builds, renovations and commercial installations where lighting requirements may change.
Key Features & Benefits
-
Switchable Wattage – 3.5W (480 lumens) or 5W (700 lumens) selectable from beneath ceiling
-
Three Colour Temperatures – 3000K warm white, 4000K natural white, 5700K cool white
-
Fire-Rated Construction – Complies with building regulations for ceiling integrity
-
Two-Part First Fix Connector – Simplifies installation with dedicated testing terminals
-
Double Hinged Terminal – Easy access to wiring connections
-
Universal Ceiling Compatibility – Tested for solid, I-joist, steel web joist and PVC clad ceilings
-
6 Bezel Finishes Available – White, chrome, brushed nickel, black, brass, anthracite
-
No Stock Complexity – One product suits all applications
Switchable Wattage Options
Adjust the light output to suit your needs without changing the fitting:
-
3.5W Mode: 480 lumens – Ideal for ambient lighting, bedrooms, hallways, and areas requiring softer illumination
-
5W Mode: 700 lumens – Perfect for task lighting, kitchens, bathrooms, and areas needing brighter illumination
The switchable wattage feature allows you to optimize energy consumption while maintaining the flexibility to increase brightness when needed.
Switchable Colour Temperature Options
Select the perfect colour temperature for each room or application:
-
3000K Warm White: Creates a cosy, relaxing atmosphere – perfect for living rooms, bedrooms, and dining areas
-
4000K Natural White: Neutral, versatile lighting – ideal for kitchens, hallways, and multi-purpose spaces
-
5700K Cool White: Bright, crisp illumination – excellent for bathrooms, offices, and task-oriented areas

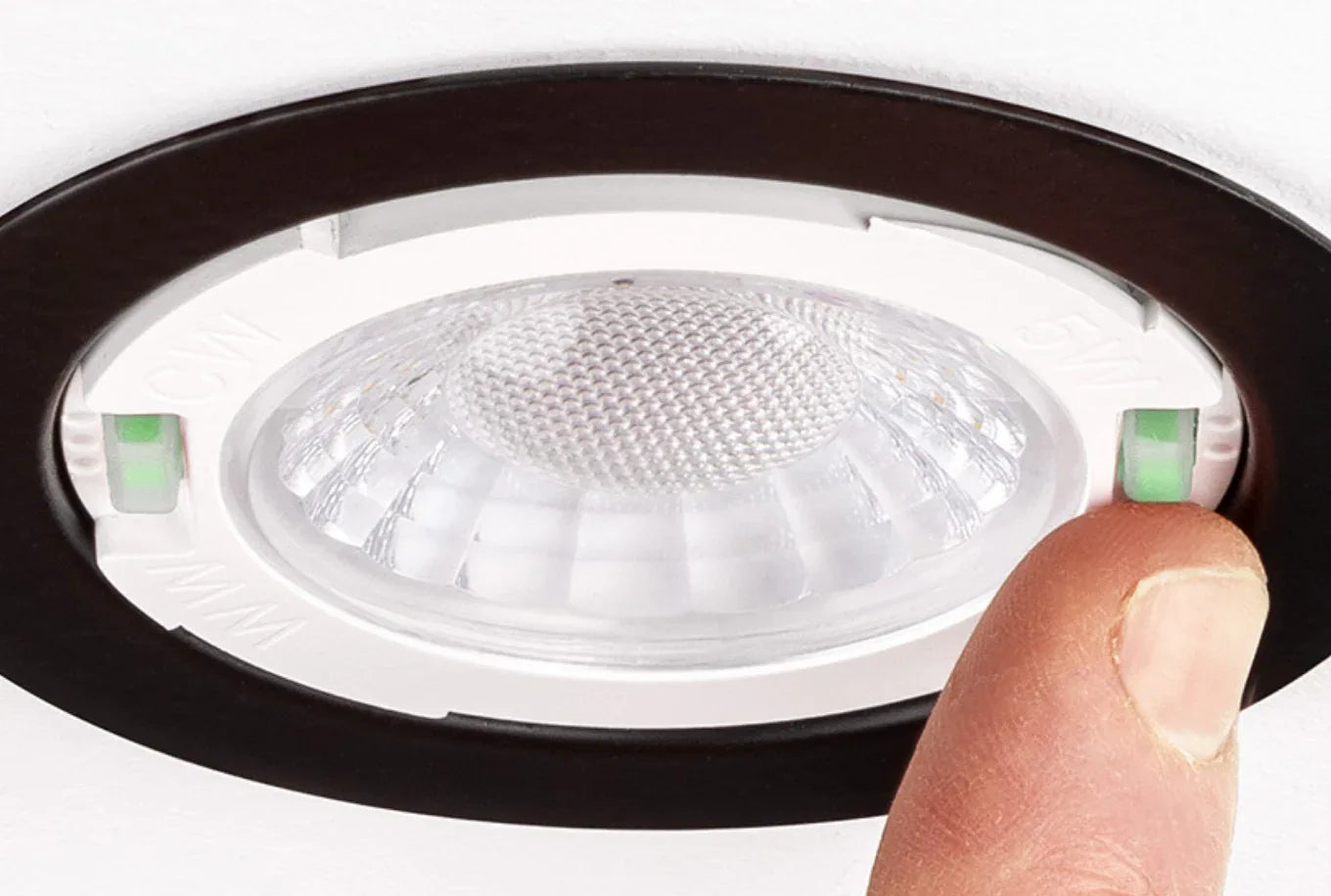

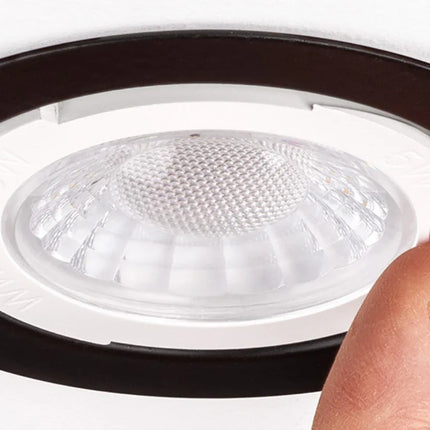

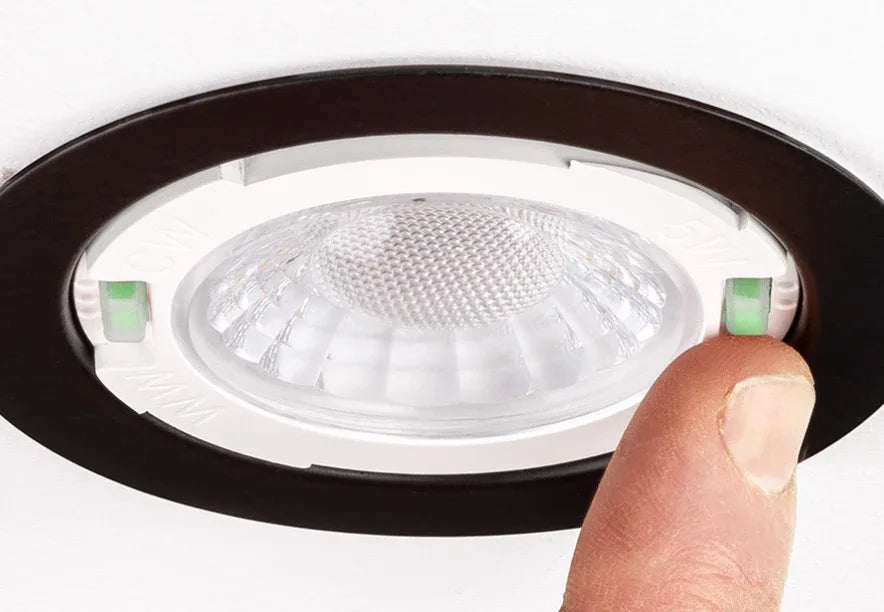

All colour temperature adjustments are made from beneath the ceiling using a simple switch – no need to remove the fitting or access the ceiling void.
What's Included
- Fire-rated LED downlight body
- White bezel (standard)
- Two-part first fix connector
- Double hinged terminal block
- Installation instructions
Note: Alternative bezel finishes (chrome, brushed nickel, black, brass, anthracite) available separately.
Technical Specifications
- Wattage: 3.5W or 5W (face-switchable)
- Light Output: 480 lumens (3.5W) or 700 lumens (5W)
- Colour Temperature: 3000K / 4000K / 5700K (face-switchable)
- Fire Rating: Yes (fire-rated construction)
- Cut-Out Diameter: Typically 65-75mm (check specifications)
- Depth: Typically 70-80mm (check specifications)
- Voltage: 220-240V AC
- Beam Angle: Typically 60-90°
- IP Rating: IP20 (suitable for most indoor applications)
- Dimmable: Check specifications (may vary by model)
- Standard Bezel: White
- Optional Bezels: Chrome, brushed nickel, black, brass, anthracite
- Installation: Two-part first fix connector with testing terminals
- SKU: JC1101-ANTH
Fire-Rated Construction Explained
Fire-rated downlights are essential for maintaining ceiling integrity in the event of a fire. This downlight features:
-
Intumescent Protection: Expands when exposed to heat to seal the ceiling aperture
-
Building Regulations Compliance: Meets UK fire safety requirements
-
Ceiling Integrity: Prevents fire and smoke spread between floors
-
Insurance Compliance: Satisfies insurance requirements for fire safety
Fire-rated downlights are mandatory in many applications, particularly in multi-storey buildings, new builds, and renovations where building control approval is required.
Installation Features

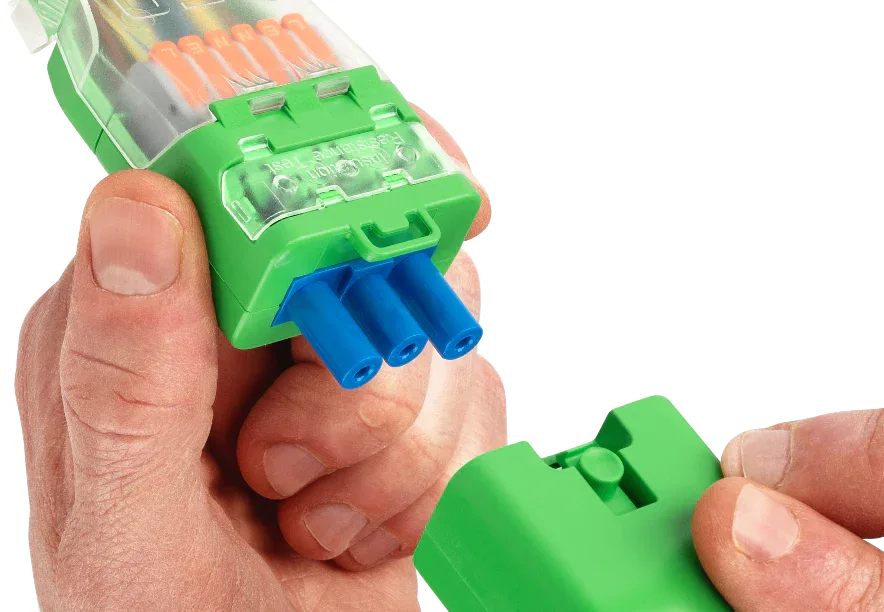

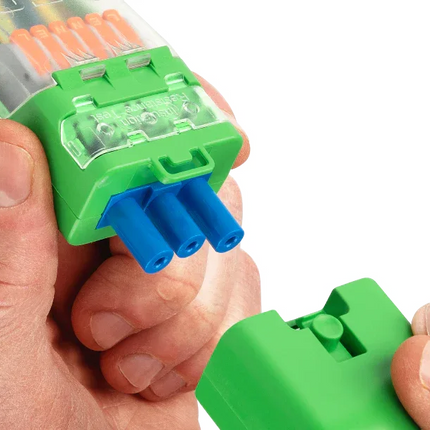

Two-Part First Fix Connector: Simplifies installation by allowing the first fix wiring to be completed independently of the downlight fitting. The electrician can wire the connector, test the circuit, and install the downlight later without disturbing the wiring.

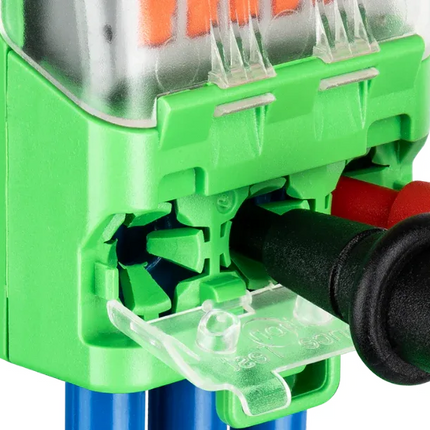

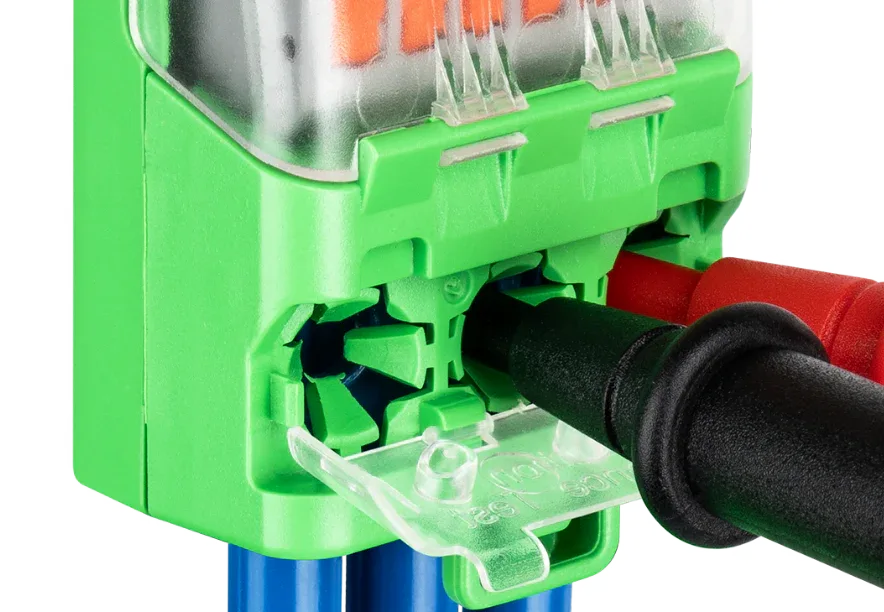

Dedicated Testing Terminals: Built-in testing points allow easy commissioning and fault-finding without disconnecting wiring.
Double Hinged Terminal: Provides excellent access to terminal blocks, making wiring connections easier and more secure.
Bezel Finish Options
Choose from six premium finishes to complement your interior design:
-

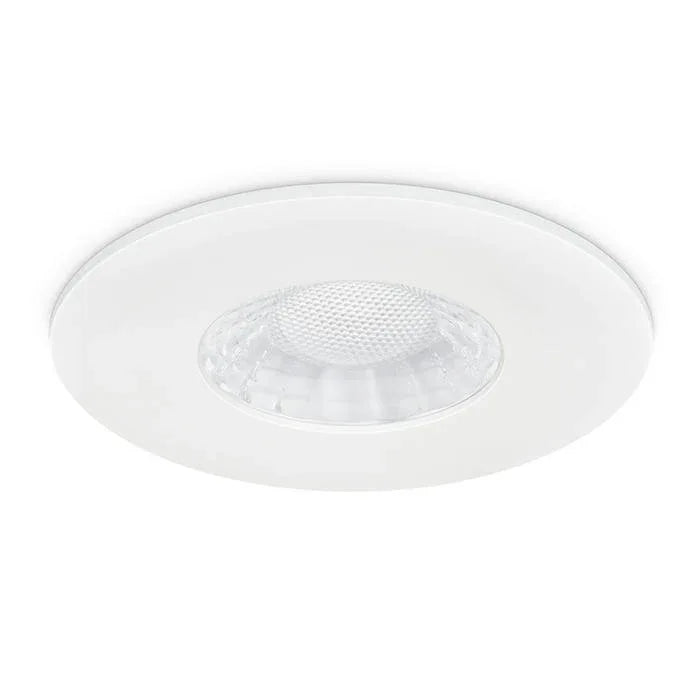

White (WH): Included as standard – classic, versatile finish
-

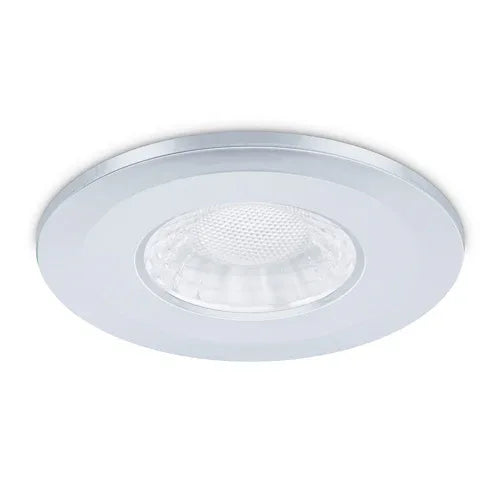

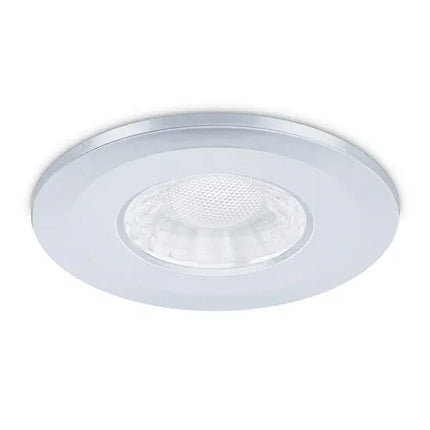

Chrome (CH): Available from stock – polished, contemporary look
-

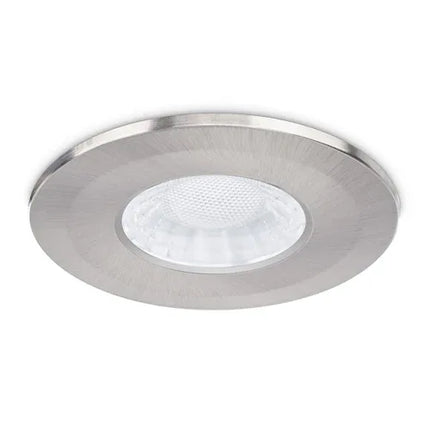

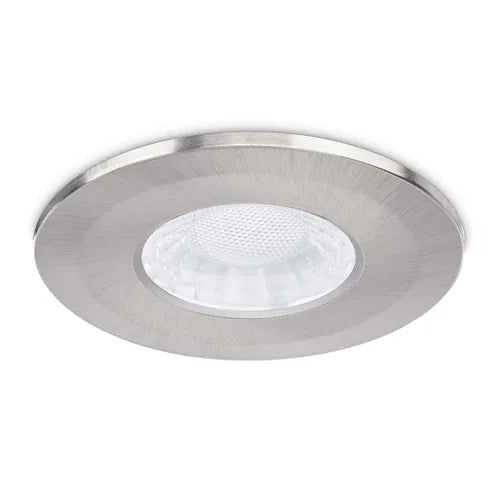

Brushed Nickel (BN): 2-5 days delivery – subtle, sophisticated finish
-

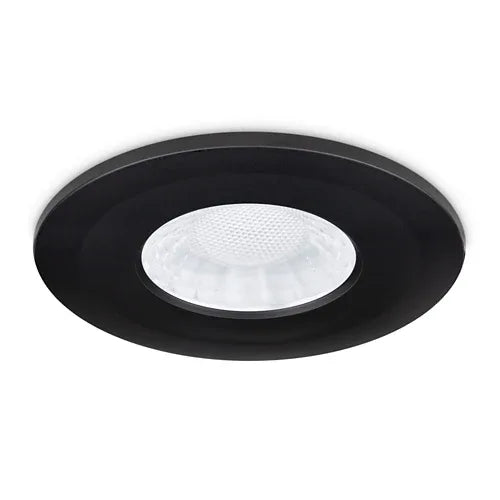

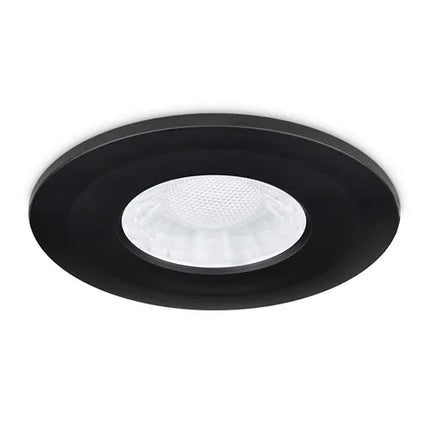

Black (BLK): 2-5 days delivery – bold, modern statement
-

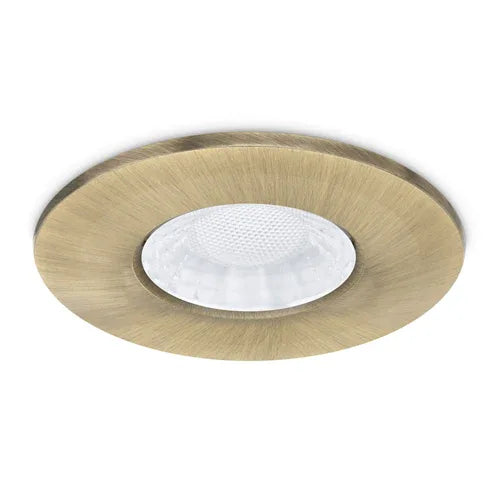

Brass (BR): 2-5 days delivery – warm, luxurious metallic
-

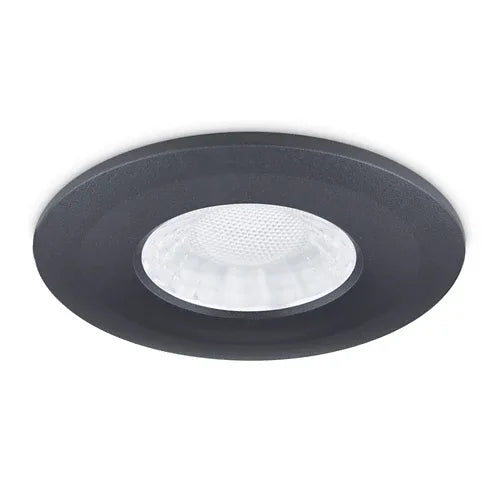

Anthracite (ANTH): 2-5 days delivery – dark grey, industrial aesthetic
Bezels are interchangeable, allowing you to update the appearance without replacing the entire fitting.
Applications & Use Cases
-
Residential: Living rooms, kitchens, bedrooms, bathrooms, hallways
-
Commercial: Offices, retail spaces, showrooms
-
Hospitality: Hotels, restaurants, bars, cafes
-
New Builds: Developments requiring fire-rated lighting
-
Renovations: Refurbishment projects with building control requirements
-
Multi-Tenancy: Buildings where lighting preferences vary between occupants

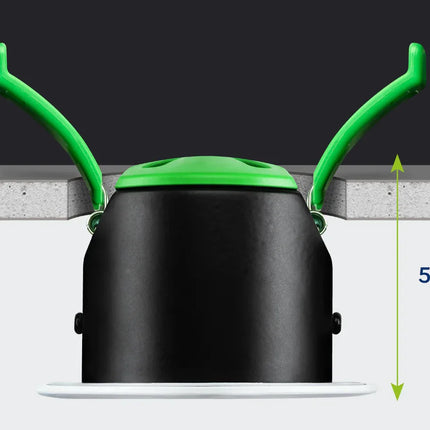

Ceiling Compatibility
This downlight has been tested and approved for use with:
-
Solid Ceilings: Traditional plasterboard on timber joists
-
I-Joist Ceilings: Engineered timber I-beam construction
-
Steel Open Web Joist Ceilings: Metal framework systems
-
PVC Clad Ceilings: Plastic-finished ceiling systems
This universal compatibility eliminates concerns about ceiling type and ensures reliable fire-rated performance across all common ceiling constructions.
Why Choose Switchable Downlights?
Switchable wattage and colour temperature offer significant advantages:
-
Future-Proofing: Adapt lighting to changing needs without replacing fittings
-
Reduced Stock: Electricians and contractors need only one product type
-
Flexibility: Adjust settings room-by-room to suit different purposes
-
Cost Savings: No need to purchase multiple product variants
-
Easy Adjustment: Change settings from beneath ceiling – no removal required
-
Tenant Preferences: Ideal for rental properties where occupants have different preferences
Installation Guide
-
Cut Ceiling Aperture: Create hole to specified cut-out diameter
-
Install First Fix Connector: Wire the two-part connector to mains supply
-
Test Circuit: Use dedicated testing terminals to verify installation
-
Select Settings: Adjust wattage and colour temperature switches as required
-
Install Downlight: Connect to first fix connector and secure in ceiling
-
Fit Bezel: Attach chosen bezel finish
-
Final Test: Verify operation and settings
Note: Professional installation by a qualified electrician is recommended to ensure compliance with building regulations and electrical safety standards.
Energy Efficiency
LED downlights offer exceptional energy efficiency compared to traditional halogen downlights:
- 3.5W LED replaces 35W halogen (90% energy saving)
- 5W LED replaces 50W halogen (90% energy saving)
- Long lifespan reduces replacement frequency and maintenance costs
- Low heat output improves comfort and reduces cooling costs
Building Regulations Compliance
This fire-rated downlight helps ensure compliance with:
- Building Regulations Part B (Fire Safety)
- Building Regulations Part L (Conservation of Fuel and Power)
- Fire safety requirements for new builds and renovations
- Insurance requirements for fire-rated ceiling integrity
Perfect for: Electricians, contractors, property developers, architects, homeowners, landlords, and anyone requiring flexible, fire-rated LED downlighting with switchable wattage and colour temperature for residential or commercial applications.
