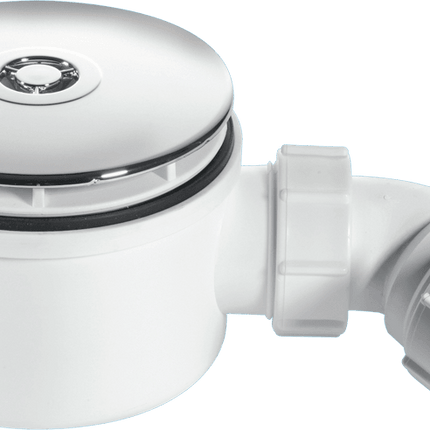

McAlpine Shallow Shower Trap — 90mm — 70mm Height — 50mm Seal — ST90CB10-70

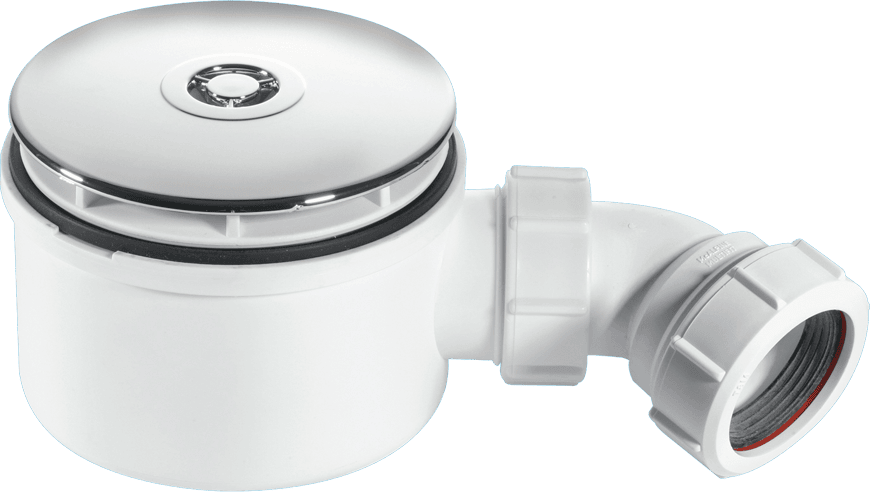

The McAlpine ST90CB10-70 is a shallow shower trap engineered for low-profile shower installations with restricted sub-floor clearance. At 70mm overall height with a superior 50mm water seal and 34 litre/min flow rate, it delivers full performance in space-constrained applications. Designed for shower trays with a thickness of 0–23mm — making it the correct choice for thinner tray profiles. The polypropylene body is supplied with a removable 110mm flange and all fittings for a complete installation. Fully compliant with BS EN 274-1:2002.
⚠️ Check tray thickness and clearance before ordering. The ST90CB10-70 is suitable for
tray thickness 0–23mm and requires
70mm clearance beneath the tray. If your tray is 5–30mm thick, see the
McAlpine ST90CPB-S-70. If you need less than 70mm clearance, see the
McAlpine ST90CPB-S-53 (53mm height).
Key Features
-
70mm overall height — suitable for low-profile installations with restricted sub-floor depth
-
50mm water seal — superior odour protection; exceeds the minimum 25mm seal requirement
-
34 litres/min flow rate — high drainage performance; prevents water pooling
-
90mm waste hole — fits standard shower trays with 90mm waste apertures
-
Suitable for tray thickness 0–23mm — designed for thinner tray profiles
-
1½" BSP thread — standard UK connection size
-
Removable 110mm flange — chrome plated brass or white/chrome plastic options; easy cleaning
-
Multifit outlet connection — compatible with plastic waste pipes (BS EN 1451-1 & BS EN 1329-1), copper, and lead pipe
-
Complete installation kit — 135° bend, BSP coupling nut, and 1½" universal connector included
-
BS EN 274 compliant — tested to BS EN 274-1:2002 and BS EN 274-2:2002
Technical Specification
-
Brand: McAlpine
-
Model: ST90CB10-70
-
SKU: ST90CB10-70
-
EAN: 5036484043856
-
Type: Shallow shower trap
-
Waste hole diameter: 90mm
-
Overall height: 70mm
-
Under-tray clearance required: 70mm
-
Suitable tray thickness: 0–23mm
-
Water seal depth: 50mm
-
Flow rate: 34 litres/min (tested under 15mm constant head, BS EN 274-2:2002)
-
Thread size: 1½" BSP
-
Outlet: 1½" Multifit (suits plastic, copper, and lead waste pipe)
-
Flange diameter: 110mm (removable)
-
Flange options: White plastic / Chrome plated plastic / Chrome plated brass
-
Body material: Polypropylene
-
Standards: BS EN 274-1:2002 & BS EN 274-2:2002
What’s Included
- McAlpine ST90CB10-70 shallow shower trap body
- 110mm removable flange (finish as selected)
- 135° bend
- BSP coupling nut
- 1½" universal connector
- Installation instructions
Suitable For
- Shower trays with 0–23mm tray thickness and 90mm waste hole
- Low-profile shower tray installations with restricted sub-floor depth
- Timber floor constructions and first-floor bathrooms with limited joist depth
- Bathroom renovations and retrofit projects with shallow under-floor clearance
- Wet room conversions with shallow floor build-ups
Also Available — McAlpine Shallow Traps
Coordinate Your Shower Installation
Frequently Asked Questions
What is the difference between the ST90CB10-70 and the ST90CPB-S-70?
Both are McAlpine 90mm shallow traps with 70mm height, 50mm water seal, and 34L/min flow rate. The key difference is tray thickness compatibility and outlet type. The ST90CB10-70 (this product) suits tray thickness 0–23mm and has a Multifit outlet compatible with plastic, copper, and lead pipe. The ST90CPB-S-70 suits tray thickness 5–30mm and has a 1½" solvent weld outlet. Check your tray thickness and pipework type before ordering.
What clearance does this trap require beneath the shower tray?
The ST90CB10-70 has an overall height of 70mm and requires 70mm of clearance beneath the shower tray. Measure the available depth between the underside of your shower tray and the floor before ordering. If you have less than 70mm available, see the McAlpine ST90CPB-S-53 (53mm height).
What tray thickness is this trap suitable for?
The ST90CB10-70 is designed for shower trays with a thickness of 0–23mm. If your tray is between 5–30mm thick, the ST90CPB-S-70 may also be suitable — check the overlap range for your specific tray thickness.
What is a Multifit connection?
McAlpine’s Multifit connection is a versatile outlet system compatible with all plastic waste pipes to BS EN 1451-1 and BS EN 1329-1, as well as copper pipe (metric or imperial) and lead pipe. A moulded internal sleeve centres and supports the pipe, whilst Multifit and friction washers ensure a secure seal. The joint is completed hand-tight — no tools required. This makes the ST90CB10-70 compatible with a wider range of existing pipework than a standard solvent weld outlet.
What is the water seal depth, and why does it matter?
The water seal depth is 50mm. The water seal is the depth of water retained in the trap that prevents sewer gases from entering the bathroom. The minimum required by UK building regulations is 25mm. A 50mm seal provides significantly better odour protection and is less likely to evaporate in infrequently used showers.
What flange finishes are available?
The ST90CB10-70 is available with a white plastic, chrome plated plastic, or chrome plated brass 110mm removable flange. The flange sits over the waste hole on the tray surface and is removable for easy cleaning without disturbing the trap body.
Is this trap BS EN 274 compliant?
Yes — the McAlpine ST90CB10-70 is fully compliant with BS EN 274-1:2002 (requirements) and BS EN 274-2:2002 (test methods), the relevant British and European standard for sanitary waste fittings.
